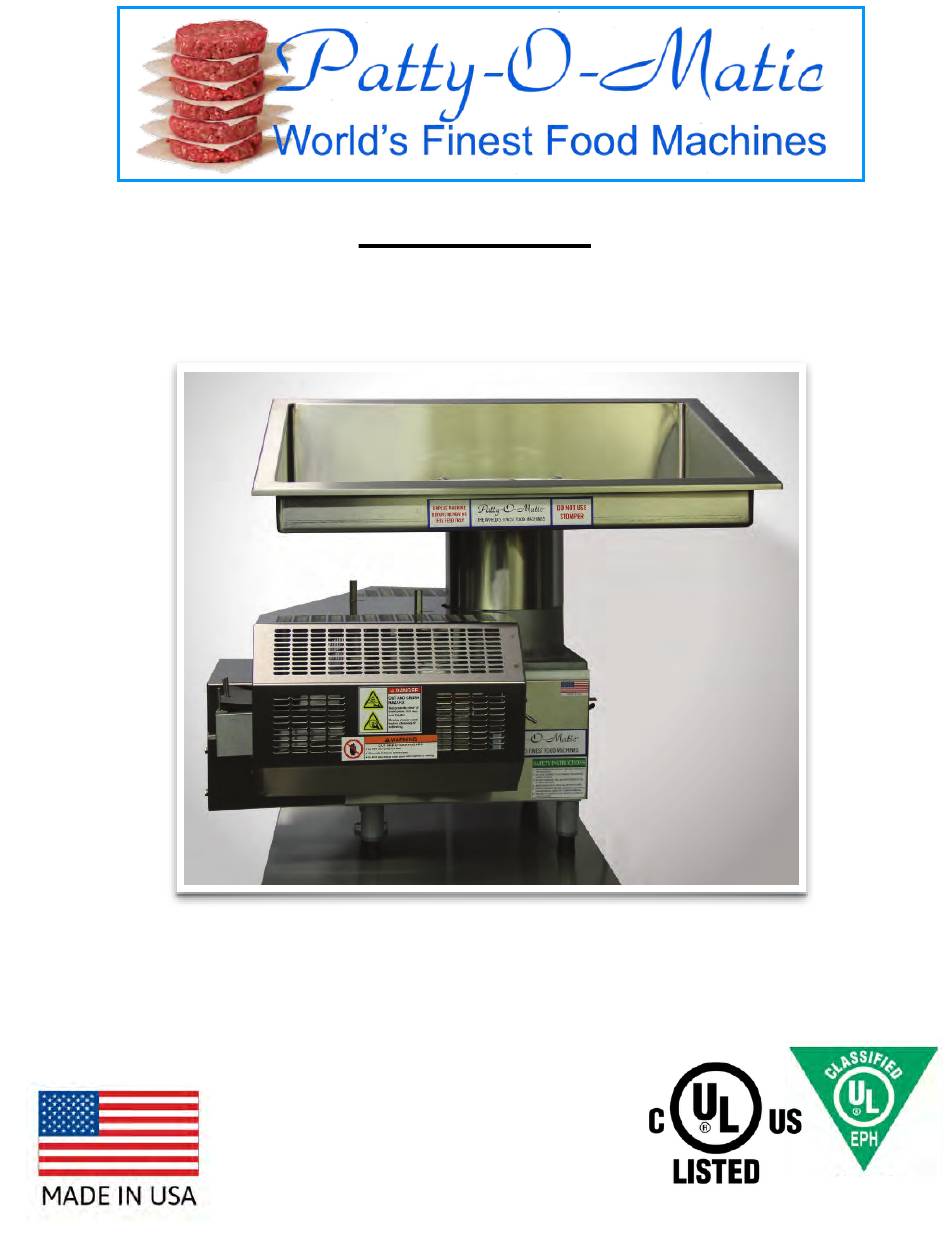

Model PS21
Owner's Manual
Revised October 2019
Patty-O-Matic Inc.
Route 547 P.O. Box 404 Farmingdale NJ,07727
(732)938-2757 Toll Free in USA: 877-938-5244
www.pattyomatic.com
info@pattyomatic.com
NSF/ANSI 8
E469483
E475191

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS21 and is the answer not in the manual?

Questions and answers

Summary of Contents for Patty-O-Matic PS21

  • Page 1 Model PS21 Owner’s Manual Revised October 2019 Patty-O-Matic Inc. Route 547 P.O. Box 404 Farmingdale NJ,07727 (732)938-2757 Toll Free in USA: 877-938-5244 www.pattyomatic.com info@pattyomatic.com NSF/ANSI 8 E469483 E475191...
  • Page 2: Table Of Contents

    • Introduction to Your Machine Page 3 • Installing Mold Plate Guard Page 3 • Installing Feed Tray Page 3 • Accessories Included with the Model PS21 Page 4 • Parts to Become Familiar with Page 5 • Label Location and Description Pages 6&7 •...
  • Page 3: Introduction To Your Machine

    The Model PS21 is shipped to you in at least three cartons which contain the patty machine, feed tray, mold plate guard, spare parts box, receiving table, riser platform, and the manual. If you purchased your machine with any other accessories, such as a mobile table or patty paper, these items may be in a separate carton.
  • Page 4 Accessories Equipped with the Model PS21 Item# Description Part # Spare Parts Box Holds Spare Parts, Patty Paper Sample, Machine Lubricant, Speed Driver, and Locator Rings c/w instructions Receiving Table 609-6 Speed Driver 8 Ounce Bottle of Machine Lubricant and Cleaner...
  • Page 5: Parts To Become Familiar With

    Please become familiar with some of the parts Please become familiar with some of the parts of your machine prior to operation of your machine prior to operating machine Feeder Washer Feeder Top View Feeder Retractable Pressure Meat Stop Plate Feeder Side Mixer View...
  • Page 6 Proper Label Location for a Model PS21...
  • Page 7 Item # Description Part# Danger Label 3 514-09a Warning Orange 514-02 Patty-O-Matic 514-08 Safety instructions 514-06 Danger Label 2 514-00 Serial Tag For UL Machines 514-15UL Store Tool 514-14 Warning Manual 514-01 Danger on/off 514-05 Do Not Pressure Wash 514-04...
  • Page 8: Operating Procedure

    Proper Procedure for Operating a PS21 When the Model PS21 is fully assembled with all guards secured in their proper place, put product to be molded in the Feed Tray. Push the product through the holes in the Feed Tray Guard, or under the Feed Tray guard and into the Hopper.
  • Page 9: Changing Mold Plate And Spacer Plate

    Changing Your Machine’s Mold Plate Always disconnect the machine from its power source before attempting to change or clean any of the machines component parts. If the Mold plate is all the way into the machine, remove the T-Knob from the Back Drive by lifting the ring pin and unthreading the knob.
  • Page 10 Feed Tray Proper Disassembly for Cleaning your Model PS21 Always Unplug Machine from its Electrical Source Before Cleaning Mold Plate Guard - Remove Feed Tray by lifting it off the Hopper, and Mold Plate Guard by loosening the Guard Bolts, and unlatching...
  • Page 11: Installing Patty Paper

    Paper Sleeves Stops should be Shown without guard for better visual adjusted for different size patty paper Patty-O-Matic Inc. offers the highest quality patty paper, machine lubricant, and machine grease. Please contact the factory for information on these products. 732-938-5244 www.pattyomatic.com...
  • Page 12: Points Of Lubrication

    Points of Daily Lubrication For Your Model PS21:
 Always Unplug Machine and use Food Approved Oil and Grease! The Following Parts should be lubricated daily Tower Stem - Pressure Foot should be lifted up Acorn Nut and oiled. Hold the Acorn Nut and lift up.
  • Page 13: Feed Tray Assembly

    Grease Fitting
 Knock Out Cup Assembly Knock Out Cup Assembly Exploded View -Knock Out Cup Assembly is Part #PS21-571 -Knock Out Cup Hardware Only is Part #PS21-571-H1 Item# Description Part # Quick Feed Tray Guard Assembly 543-QP Feed Tray Guard Hardware...
  • Page 14: Hopper Assembly

    Hopper Rear View Hopper Bottom View Feeder Top View 2-1/4” space Item# Description Part # Hopper Casting PS21-545 Chamber Lid PS21-545-A Hex Hold Down Bolt (also used as Hopper hold down) 556B Retaining Rod PS21-551-1C Guard Block PS21-551-C Retractable Meat Stop...
  • Page 15: Assembled Machine Views

    Part# Feed Tray Tower Sleeve 620-16 Feed Tray Tower Block 620-6 Item # Description Part # Tool Holder PS21- Paper Interleaver Arm and Bolts On/Off Switch Knock Out Arm and Bolts 502B Power Cord 115-01 Knock Out Cup 571-1 On/Off Switch Guard...
  • Page 16: Paper Interleaver Assembly

    Rod End Bearing (2 required) Set Screw (one in each collar) Paper Interleaver Front Pulley Pivot Rod Support Bracket Paper Weight (2 required) Paper Motor Cover c/w Hardware PS21-537 Interleaver Adjustment Slots Interleaver Support Hardware Paper Interleaver Back Pulley Interleaver Support Bar PS21-497...
  • Page 17: Feeder Assembly

    PS21 Feeder Washer bolt PS21-558B Set of Back Drive Hardware 568A Double Seal Spacer Plate O’Rings 569A Part # PS21 -563 - Mold Plate Assembly -Includes Round Mold Plate, Back Drive Assembly and Knock Out Cup Assembly Other Shapes Available...
  • Page 18: Electrical Switches

    Machine Switches Front View Guard Switch Interior View
 On/Off Switch Interior View Tower Switch Interior View Item# Description Part Round Key Latch 609-A1 On/Off Switch Guard On/Off Switch Boot 500B Power Cord 115-01 Wire Grommet Guard Switch 608-1B Guard Switch Wire 608-1D On/Off Switch (insulated in electrical tape) Tower Switch...
  • Page 19: Tower Assembly

    Tower Assembly w/ Tower Block Tower Assembly Exploded Bottom View
 Tower Assembly Tower Assembly Top View Machine View Item# Description Part # Tower Sleeve 620-16 Tower Stem 620-3 Tower Tube 620-5 Tower Block 620-6 Tower Locator Lock Bolt 620-7 Tower Switch 620-10B Rubber Seal...
  • Page 20: Main Shaft Assembly

    Main Shaft Driven Sprocket(Specify Amount of Teeth) Main Shaft Threaded Insert Set Screw 464-2 Main Shaft Threaded Insert c/w Set Screw and Locking Nut 464-1 Main Shaft Sprocket Key Grease Line System(Not completely shown) PS21-704 Main Shaft C/W Insert and Set Screw...
  • Page 21: Crank Housing Assembly

    Connecting Arm Connecting Arm Bushing (white Crank Arm poly bushing pressed into the Crank Shaft Housing Casting Connecting Arm not shown)(2) 455-1 PS21 Grease Line System PS21-704 Sprocket Key Crank Housing Assembly 457B Connecting Arm Spring Washer (Between Crank Shaft...
  • Page 22: Motor To Main Shaft

    Motor to Main Shaft Bottom View Idler Arm Assembly Parts Item# Description Part # Machine Legs (set of 4)(Only 2 shown) Motor Drive Sprocket(Specify Teeth) Motor to Main Shaft Chain and Link Idler Arm Shoulder Bolt Hardware 229B Idler Arm Shoulder Bolt 229A Idler Arm 230-A...
  • Page 23: Knock Out Cam Assembly

    Steel Knock Out Cam Assembly 472-S Machine Legs (set of 4)(2 Shown) Steel KO Cam Drive Key(Not Shown) 477-1 Knock Out Shaft PS21-449 Knock Out Lever Cam Follower Bearing Hardware Part # 450X Knock Out Lever Hardware Knock Out Lever...
  • Page 24: Main Motor Side View

    Mold Plate Guide Rail Bolts (set of 2 bolts) Hold Down Bolt 556B Mold Plate Guard Rear Post Assembly PS21-551-D PS21 Guide Rail PS21-494 PS21 Guide Rail Button Bolts(Set of 2) PS21-494B PS21 Bed Plate Bolts(Set of 4) PS21-602-1 PS21 Guide Rail Set Screws (Set of 2) PS21-494C...
  • Page 26: Warranty Information

    Warranty Information This appliance is guaranteed to original purchaser to be free from defects in materials and workmanship. Warranty shall be limited to repairing or exchanging any part that shows evidence of defect within One Year of the original date of purchase.
  • Page 27: Important Information Guide

    Patty-O-Matic Inc. Model PS21 Serial Number_________________________________________________ Date Purchased________________________________________________ Purchased From What Dealer___________________________________ Dealer Address and Phone Number_______________________________ _____ _________________________________________ ______________________________________________ ______________________________________________ Maintenance Performed on Machine______________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ Owner’s Notes_________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________...
  • Page 28: Notes

    Notes ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________...
