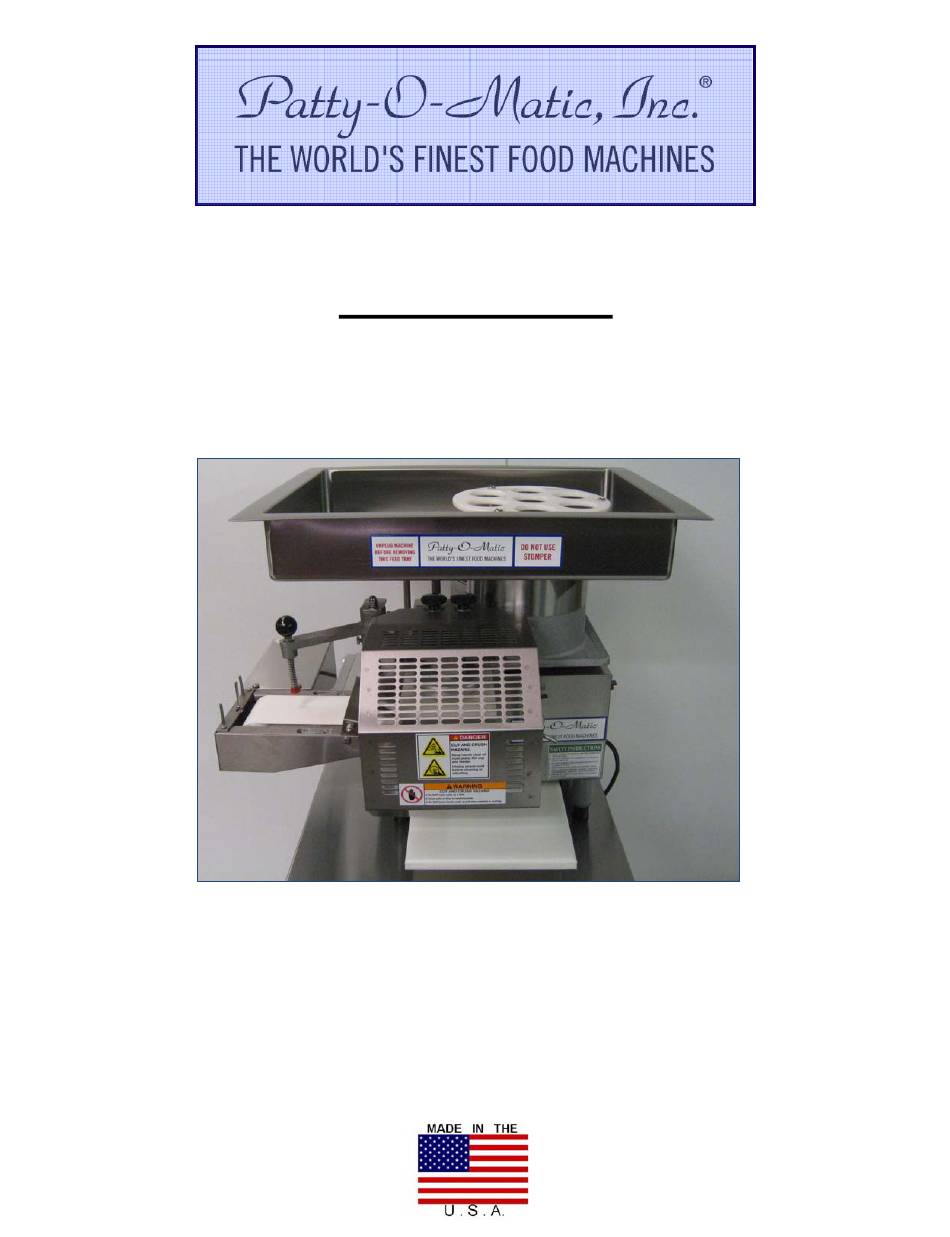

Patty-O-Matic, Inc.
®
The World's Finest Food Machines
Model 330PUB
Owner's Manual
Revised January 2011
Patty-O-Matic Inc.
Route 547
P.O. Box 404 Farmingdale NJ,07727
Tel: (732) 938-2757
Fax: (732) 938-5809
Toll Free in USA: 877-938-5244
Website: www.pattyomatic.com
Email: info@pattyomatic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 330PUB and is the answer not in the manual?

Questions and answers

Summary of Contents for Patty-O-Matic 330PUB

  • Page 1 Patty-O-Matic, Inc. ® The World’s Finest Food Machines Model 330PUB Owner’s Manual Revised January 2011 Patty-O-Matic Inc. Route 547 P.O. Box 404 Farmingdale NJ,07727 Tel: (732) 938-2757 Fax: (732) 938-5809 Toll Free in USA: 877-938-5244 Website: www.pattyomatic.com Email: info@pattyomatic.com...
  • Page 2 • Introduction to your new machine Page 3 • Installing Mold Plate Guard Page 3 • Installing Feed Tray Page 3 • Accessories Equipped with the Model 330PUB Page 4 • Parts to Become Familiar with Page 5 • Label Location and Description Pages 6&7 •...
  • Page 3 Please become familiar with this manual and your machine will give you many years of productive service. The Model 330PUB is shipped to you in three cartons which contain the patty machine, feed tray, mold plate guard, spare parts box, receiving table, mobile table, and this manual.
  • Page 4: Accessories Equipped With The Model 330Pub

    Accessories Equipped with the Model 330PUB Item# Description Part # Spare Parts Box SBP1-P Holds Spare Parts, Patty Paper Sample, Machine Lubricant, Speed Driver, and Locator Rings Receiving Table 609-6 Speed Driver with Leverage Handle 544-L Bottle of Machine Lubricant and Cleaner...
  • Page 5 Please become familiar with some of the parts of your machine prior to operating machine Feeder Feeder Top Feeder Pressure Washer View Plate Meat Stop Mixer Feeder Side Collar View Chamber Hopper Spacer Plate Mold Plate Assembly Side View T-Knob Mold Plate Assembly Underside View Ring Pin Pressure Plate Back Drive...
  • Page 6 Proper Label Location for a Model 330PUB...
  • Page 7 Item # Description Part # Danger Label 3 514-09a Warning Orange 514-02 Patty-O-Matic 514-08 Safety instructions 514-06 Danger Label 1 514-03 Danger Label 2 514-00 Serial Tag 514-15 Store Tool 514-14 Warning Manual 514-01 Danger on/off 514-05 Do Not Pressure Wash...
  • Page 8 Proper Procedure for Operating a Model 330PUB When the Model 330PUB is fully assembled with all guards secured in their proper place, put product to be portion molded in the Feed Tray. Push the product through the holes in the Feed Tray Guard into the Hopper opening. DO NOT PUT HANDS OR FINGERS, OR FOREIGN OBJECTS, SUCH AS STOMPERS OR PLUNGERS INTO THE HOPPER.
  • Page 9 Changing Your Machine’s Mold Plate Always disconnect the machine from its power source before attempting to change or clean any of the machines component parts. First remove the T-Knob from the Back Drive of the Mold Plate, then pull the Mold Plate out from the back of the machine.
  • Page 10 Feed Tray Proper Disassembly for Cleaning Your Model 330PUB: Mold Plate Guard Always Unplug Machine From its Electrical Source Before Cleaning Push Rod - Remove Feed Tray by lifting it off the Hopper, and Mold Plate Guard by loosening the Mold Plate Guard Knobs, Pressure Plate and unlatching the push rod.
  • Page 11: Installing Patty Paper

    Paper Sleeves Paper Sleeves should be adjusted for different size patty paper Patty-O-Matic Inc. offers the highest quality patty paper, machine lubricant, and machine grease. Please contact the factory for information on these products. Toll Free in the U.S.A. 877-938-5244 Outside the U.S.A.
  • Page 12: Installing Pressure Plate Block After Cleaning

    Installing Pressure Plate Block After Cleaning 1. Before installing Pressure Plate Block Assembly on the hopper of the machine, unplug Pressure Plate Block the machine from its power source. 2. Using the Speed Driver provided with the machine, slightly spread the block apart as shown in picture.
  • Page 13 Points of Daily Lubrication For Your Model 330PUB: Always Unplug Machine and use Food Approved Oil and Grease! The Following Parts should be lubricated daily to ensure proper machine maintenance Tower Stem - Pressure Foot should be lifted up and oiled. Hold the Ball knob and Ball Knob lift up.
  • Page 14: Mold Plate Guard Assembly

    Low Profile Feed Tray Mold Plate Guard Assembly *Numbers 5 & 6 also come as an assembly Knock Out Cup Assembly Knock Out Cup Exploded View *Knock Out Cup Hardware is also sold as an assembly. -Knock Out Cup Assembly w/ Hardware is Part #571 -Knock Out Cup Hardware Only is Part #571-H1 Item# Description...
  • Page 15 Hopper Front View Hopper Rear View Hopper Bottom View Feeder Top View Item# Description Part # Hopper Casting Chamber Lid 545-A Long Hex Hold Down Bolt 556A X-Bolt Guard Post Guard Information Plate 551-B Meat Stop c/w Washer Pressure Plate Block Hardware 548-CR Pressure Plate Block-Removable 547-YR...
  • Page 16: Ring Pin Pressure Plate

    Machine Front View Machine Left Side View Machine Right Side View Machine Rear View Item# Description Part# Feed Tray Tower Sleeve 620-16 Item # Description Part # Paper Interleaver Arm and Bolts Feed Tray Tower Block 620-6 Knock Out Arm and Bolts 502B Tool Holder Knock Out Cup...
  • Page 17 Paper Interleaver Top View (Conveyor Belt is Removed for Visual) Paper Motor Paper Return Bracket Item# Description Part# Item # Description Part # Paper Stop Paper Interleaver Motor c/w 2 Return Bracket Mounting Screws249 Extension Shaft Left Return Spring 246L Weight Shaft Right Return Spring 246R...
  • Page 18: Mold Plate Assembly

    Ring Pin Pressure Plate Mold Plate Bottom View Mold Plate Side View Feeder Washer Hopper and Feeder Assembled Top View & Shear Pin Spacer Plate Hold Down Bolt Item # Description Part # T-Knob Item # Description Part # Hopper Casting Pressure Plate Ball Knob 546D Hold Down Bolt...
  • Page 19 Machine Switches Front View Guard Switch Interior View On/Off Switch Interior View Tower Switch Interior View Item# Description Part # Round Key Latch 553-R Rubber Seal 464S On/Off Switch Guard On/Off Switch Boot 500B Power Cord 115-01 Wire Grommet Guard Switch (Mounted Inside) 608-1B Guard Switch Wire 608-1D...
  • Page 20: Tower Assembly

    Tower Assembly w/ Tower Block Tower Assembly Exploded Bottom View Tower Assembly Tower Assembly Inverted Top View Machine View Item# Description Part # Tower Sleeve 620-16 Tower Stem 620-3 Tower Tube 620-5 Tower Block 620-6 Tower Locator Lock Bolt 620-7 Tower Switch 620-10B Rubber Seal...
  • Page 21: Main Shaft Assembly

    Main Shaft Assembly Interior View Main Shaft Exploded View Item# Description Part # Main Shaft Bushing (pressed into Machine Frame) Main Shaft Thrust Washer 469-1 Timing Sprocket 465T Chain Tension Adjuster Bolt Main Shaft Bearing (pressed into Machine Frame) 464A Timing Chain and Link Main Shaft Clamp Main Shaft Clamp Hardware...
  • Page 22: Crank Housing Assembly

    Crank Housing Assembly Side View Crank Shaft Assembly Crank/Connecting Arm Assembly Exploded View Item # Description Part # Item # Description Part # Connecting Arm Crank Shaft Sprocket Crank Arm Timing Chain and Link Crank Shaft Housing Casting Crank Arm Hardware Grease Line T Fitting Connecting Arm Thrust Washer 456B...
  • Page 23: Motor To Main Shaft

    Motor to Main Shaft Bottom View Idler Arm Assembly Parts Part # 229 – Idler Arm Assembly Includes spring, tab, arm, and all hardware Item# Description Part # Machine Legs (set of 4)(Only 2 shown) Motor Drive Sprocket Motor to Main Shaft Chain and Link Idler Arm Shoulder Bolt Hardware 229B Idler Arm Shoulder Bolt...
  • Page 24: Knock Out Cam Assembly

    Knock Out Cam Bottom View Knock Out Lever Assembly Knock Out Shaft and Lever Assembly 8 & 9 Item# Description Part # Crank Housing Hardware Steel Knock Out Cam Assembly 472-S Machine Legs (set of 4)(2 Shown) Steel KO Cam Drive Key(Not Shown) 477-1 Knock Out Shaft Knock Out Lever...
  • Page 25: Main Motor Side View

    Main Motor Side View Main Shaft Machine View Mold Plate Guide Rails Front View Mold Plate Guide Rail Please call factory for instructions on installing new Mold Plate Guide Rails Toll Free in the U.S.A. 877-938-5244 Outside the U.S.A. 732-938-2757 Item# Description Part #...
  • Page 27: Warranty Information

    Model 330PUB Warranty Information This appliance is guaranteed to original purchaser to be free from defects in materials and workmanship. Warranty shall be limited to repairing or exchanging any part that in our judgment shows evidence of defect within one year of original date of purchase.
  • Page 28: Owner's Notes

    Important Information on Your Machine Patty-O-Matic Inc. Model 330PUB Serial Number_________________________________________________ Date Purchased________________________________________________ Purchased From What Dealer___________________________________ Dealer Address and Phone Number_______________________________ _____ _________________________________________ ______________________________________________ ______________________________________________ Maintenance Performed on Machine______________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ Owner’s Notes_________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________...
  • Page 29 Notes ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________...
