Page 1: Parts To Become Familiar With

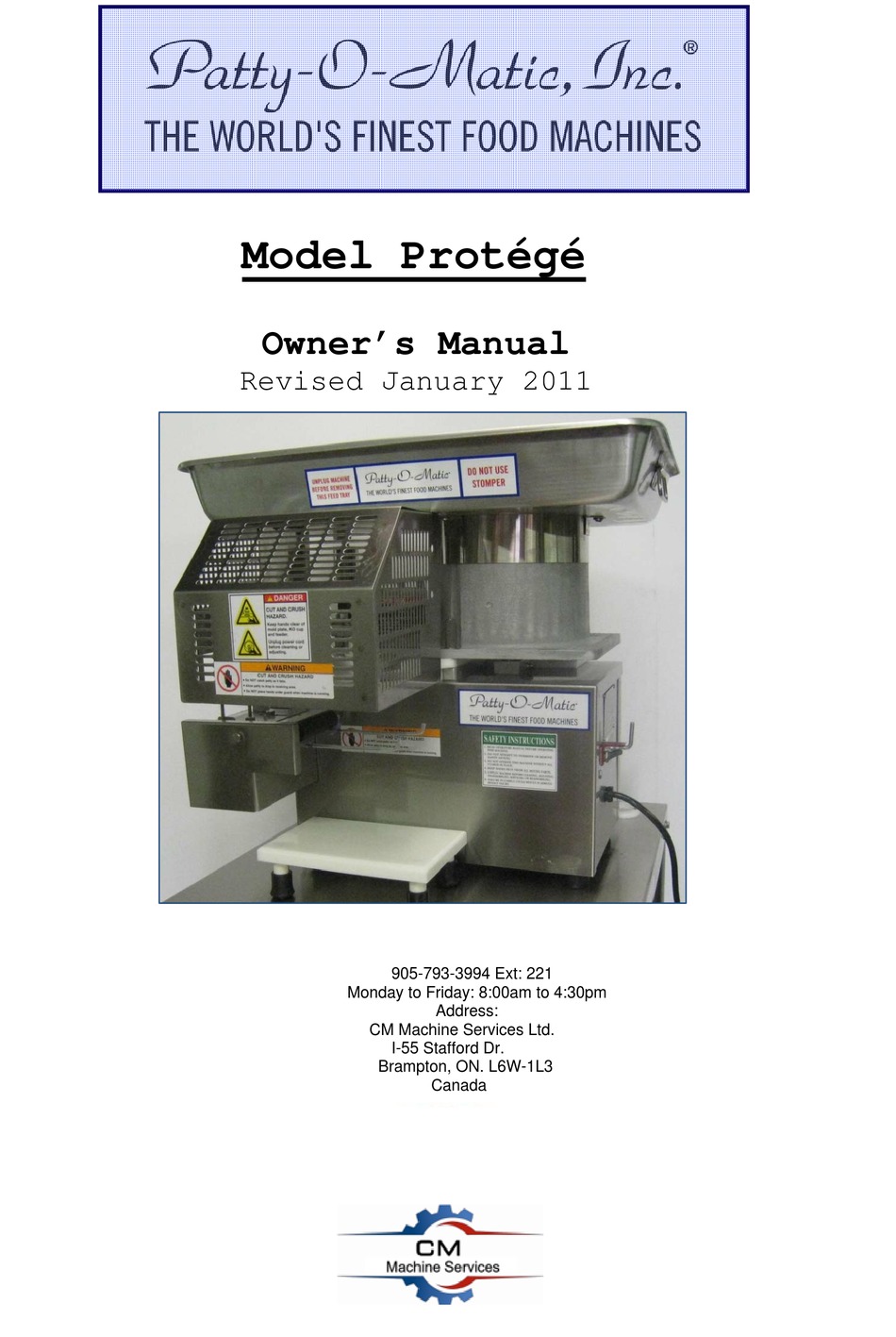

Patty-O-Matic, Inc. ® The World’s Finest Food Machines Model Protégé Owner’s Manual Revised January 2011 905-793-3994 Ext: 221 Monday to Friday: 8:00am to 4:30pm Route 547 P.O. Box 404 Farmingdale NJ,07727 Address: CM Machine Services Ltd. Tel: (732) 938-2757 Fax: (732) 938-5809 I-55 Stafford Dr. -
Page 2: Table Of Contents
Model Protégé Owner’s Manual Table of Contents • Introduction to your new machine Page 2 • Installing Feed Tray with Mold Plate Guard Page 2 • Parts to Become Familiar with Page 3 • Accessories Equipped with Machine Page 4 •... - Page 3 Thank you and congratulations on the purchase of your new Model Protégé Patty Molding Machine from Patty-O-Matic, Inc! The Model Protégé will form, interleave paper in between, and stack patties. This machine is designed for easy operation and cleaning. Please become familiar with this manual and your machine will give you many years of service.
- Page 4 Please become familiar with some of the parts of your machine prior to operation. Pressure Feeder Feeder Top Feeder Plate Washer View Meat Stop Mixer Feeder Side Collar View Hopper Protégé Mold Plate Assembly Side View Transition Plate Air Grooves Mold Plate T-Knob Mold Plate Assembly Underside View...
- Page 5 Accessories Equipped with the Model Protege Item# Description Part # Spare Parts Box Holds Spare Parts, Patty Paper Sample, Machine Lubricant, Speed Driver, and Locator Rings Receiving Table 609-6 Speed Driver Bottle of Machine Lubricant and Cleaner Gallon Bottle of Machine Lubricant and Cleaner...
-
Page 6: Operating Procedure
Proper Label Location for a Model Protégé... -
Page 7: Adjusting Paper Attachment
Adjusting the Paper Attachment for different size paper 1. The Paper Pin Bracket must be adjusted left or right for different size paper. Using the Speed Driver provided with the machine loosen the Paper Pin Adjusting Bolts and slide the Paper Pin Bracket one way or the other for the different size paper. -
Page 8: Changing Mold Plate And Transition Plate
Changing Your Machine’s Mold Plate Always disconnect the machine from its power source before attempting to change or clean any of the machine’s component parts. First remove the T-Knob from the Back Drive of the Mold Plate, then pull the Mold Plate out from the rear of the machine. - Page 9 Proper Disassembly for Cleaning a Patty-O-Matic Model Protégé Always Unplug Machine From its Power Source Before Cleaning! Feed Tray with attached - Remove Feed Tray with attached Mold Plate Guard Mold Plate Guard from the Machine. Hopper - Remove Pressure Plate by detaching spring and sliding Pressure Plate from the inside of the hopper.
- Page 10 *Placing more than one inch of paper Center Pin on the pin may cause improper feeding. Patty-O-Matic Inc. offers the highest quality patty paper, machine lubricant, and machine grease. Please contact the factory for information on these products. Toll Free in the U.S.A. 877-938-5244 Outside the U.S.A.
-
Page 11: Points Of Lubrication
Points of Daily Lubrication For A Patty-O-Matic Model Protege: Always Unplug Machine and use Food Approved Oil and Grease! The Following Parts should be lubricated daily to ensure proper machine maintenance - Pressure Foot should be lifted up Ball Knob and oiled. -
Page 12: Feed Tray Assembly With Mold Plate Guard
Feed Tray with attached Mold Plate Guard Knock Out Cup Assembly Knock Out Cup Exploded View *Knock Out Cup Hardware is also sold as an assembly. -Knock Out Cup Assembly w/ Hardware is Part #571 -Knock Out Cup Hardware Only is Part #571-H1 Item# Description Part #... -
Page 13: Hopper Assembly
Hopper Front View Hopper Rear View Hopper Bottom View Feeder Top View Item# Description Part # Hopper Casting Chamber Lid 545-A Protégé Hold Down Bolt (6 required) PRO556-1 Meat Stop Protégé Guard Sign PRO551B Hold Down Holes (4) Pressure Plate Block Hardware Location 548-C Pressure Plate Block Protégé... -
Page 14: Assembled Machine Views
Machine Front View Machine Left Side View Machine Right Side View Machine Right Side View Item # Description Part # Item# Description Part# Pressure Foot Ball Knob 506B Knock Out Shaft Nut & Lockwasher 503 Protégé Knock Out Arm PRO502 Protégé... -
Page 15: Paper Interleaver Assembly
Paper Interleaver Top View Paper Interleaver Motor View Paper Interleaver Side View Return Bracket Item # Description Part # Item# Description Part# Protégé Paper Interleaver Plug PRO115-04A Protégé PI Capacitor Assembly PRO516C Protégé Paper Motor Cord PRO115-04 Protégé Paper Interleaver Motor PRO516 Protégé... -
Page 16: Ring Pin Pressure Plate
Part # Pressure Plate Ball Knob 546D T-Knob Pressure Plate Spring c/w Collar Hopper Casting Ring Pin Adjustment Holes Protege Chamber Bolts (2) PRO556-1 Ring Pin (shown in Feeder Washer with Attach Bolt 561A the storage hole) 546C Meat Stop... -
Page 17: Electrical Switches
On/Off Switch Front View Tower Side View On/Off Switch Interior View Interleaver Receptical Machine View Item# Description Part # On/Off Switch Guard On/Off Switch Boot 500B Wire Grommet Power Cord 115-01 Tower Sleeve PRO620-06 Protégé Tower Jam Nut, Acorn Nut, and Washer PRO620-02 Protégé... -
Page 18: Tower Assembly
Tower Assembly Tower Assembly Exploded Top View Exploded Bottom View Tower Assembly Protégé Knock Out Shaft Machine View Tube and Support Item# Description Part # Protégé Tower PRO620-07 Tower Stem 620-3 Protégé Tower Stem Hardware PRO620-02 Protégé Feed Tray Safety Interlock Bushing PRO620-03 Protégé... -
Page 19: Knock Out Lever Assembly
Protégé Knock Out Lever Cam Bearing and Interior View Lever Block Item# Description Part # Protégé Knock Out Lever Block Hardware PRO450B Protégé Knock Out Lever PRO450 Protégé Knock Out Lever Hardware PRO451 Cam Follower Bearing Protégé Cam Bearing Hardware PRO475 Protégé... -
Page 20: Transmission And Main Shaft Assembly
Transmission and Main Shaft Assembly Item# Description Part # Protégé Main Shaft w/ Insert and Set Screw PRO464 Protégé Crank-Connecting Arm Assembly PRO455 Protégé Connecting Arm Protégé Knock Out Cam PRO472 Protégé Transmission PRO484A Protégé Transmission Brackets (Set of 2) PRO484B Protégé... -
Page 21: Interior View
Machine Interior View Item# Description Part # Protégé Transmission Pulley PRO484C Protégé Transmission Pulley Drive Key PRO484C1 Protégé Machine Leg and Rubber Foot with Hardware PRO446C Set of 4 Protégé Rubber Feet PRO448 Protégé V-Belt PRO471 Motor/Transmission Fastening Hardware(Set of 4) PRO484-1 Protégé... -
Page 22: Machine Exterior
Machine Exterior View Item# Description Part # Protégé Main Shaft Insert PRO464-1 Protégé Main Shaft w/ Insert and Set Screw PRO464 Protégé Main Shaft Block Hardware PRO464D Protégé Main Shaft Block c/w Bushing PRO464A Guide Rail (2 Required) Protégé Grease Fitting PRO464B Hopper Bushing Set Collar O-Ring PRO603E...
