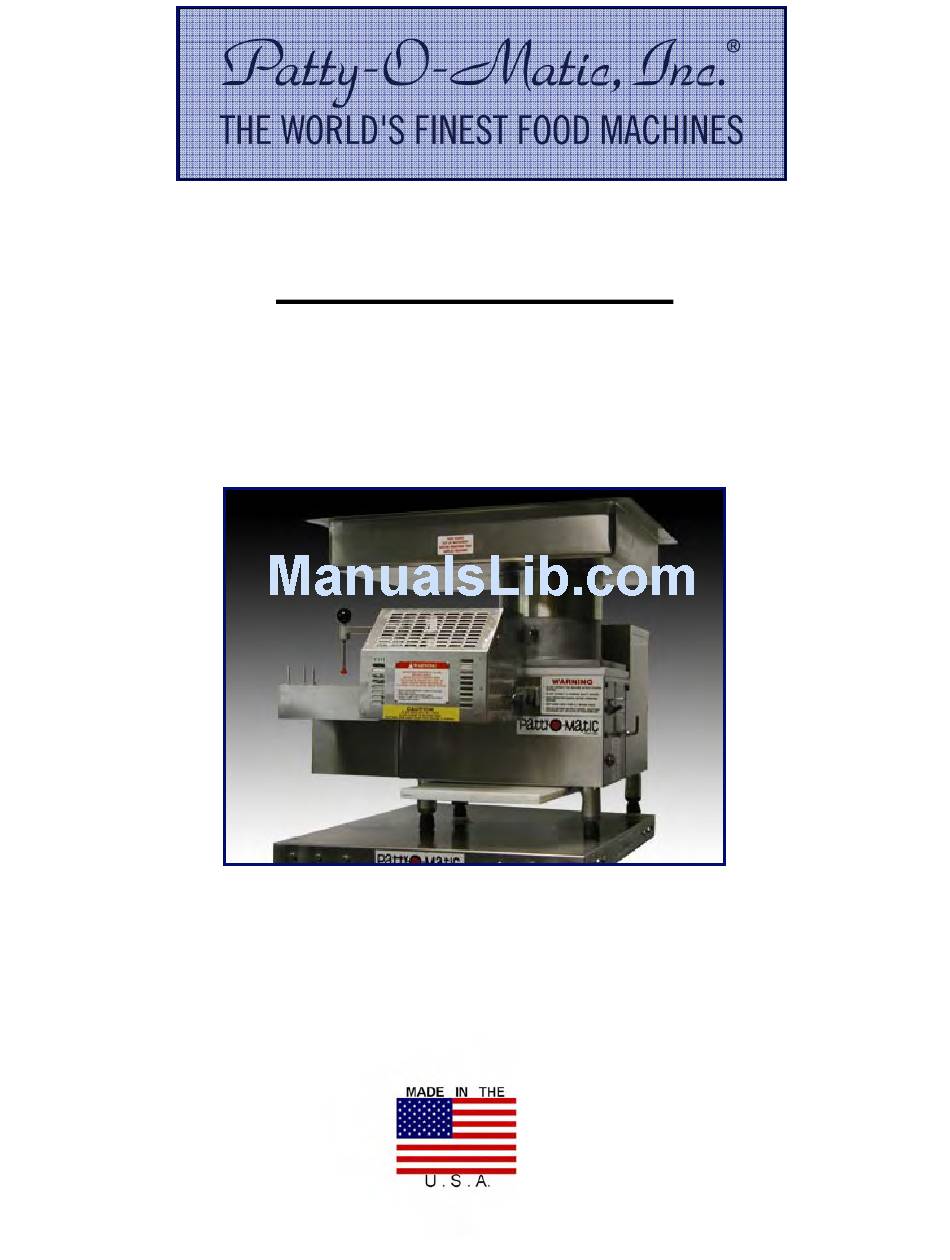

- Page 1 Patty-O-Matic, Inc. ® The World’s Finest Food Machines Model PaceSetter Owner’s Manual Revised March 2006 Route 547 P.O. Box 404 Farmingdale NJ,07727 Tel: (732) 938-2757 Fax: (732) 938-5809 Toll Free in USA: 877-938-5244...
- Page 2 Please become familiar with this manual and your machine will give you years of service. The PaceSetter is shipped to you in at least two cartons which contain the patty machine, feed tray, mold plate guard, riser platform, parts box, receiving table, and this manual.
- Page 3 Please become familiar with some of the parts of your machine prior to operation. PaceSetter PaceSetter Feeder Feeder Feeder Top Washer View Retractable Meat Stop PaceSetter Mixer Collar Feeder Side View PaceSetter Hopper Feeder Washer Mold Plate Assembly Side View...
- Page 4 Proper Label Location for a Model PaceSetter...
- Page 5 Item # Description Part # Danger Tag 514-09 Warning Orange 514-02 Patty-O-Matic 514-08 Warning 514-06 Danger Label 1 514-03 Danger Label 2 514-00 Serial Tag 514-15 Store Tool 514-14 Warning Manual 514-01 Danger on/off 514-05 Do Not Pressure Wash 514-04...
- Page 6 Proper Procedure for Operating a Model PaceSetter When the Model PaceSetter is fully assembled with all guards secured in place, put product in the Feed Tray. Push the product through the holes in the Feed Tray Guard into the hopper opening. DO NOT PUT HANDS OR FINGERS, OR FOREIGN OBJESTS, SUCH AS STOMPERS OR PLUNGERS INTO THE HOPPER.
- Page 7 Changing Your Machine’s Mold Plate Always disconnect the machine from its power source before attempting to change any of the machines component parts. First remove the T-Knob from the Back Drive of the Mold Plate by removing the ring pin and turning the T-Knob out, then pull the Mold Plate out from the rear of the machine.
- Page 8 Feed Tray Proper Disassembly for Cleaning a Patty-O-Matic Model PaceSetter: Mold Plate Always Unplug Machine From its Power Guard Source Before Cleaning - Remove Feed Tray and Mold Plate Guard from Machine. Pressure Pressure Plate - Remove Pressure Plate by detaching...
- Page 9 Center Pin *Placing more than one inch of paper on pin may cause improper paper feeding. Patty-O-Matic Inc. offers the highest quality of patty paper, machine lubricant, and machine grease. Please contact the factory for information on these products. Toll Free 877-938-5244...
- Page 10 Points of Daily Lubrication For A Patty-O-Matic Model PaceSetter: Always Unplug Machine and use Food Approved Oil and Grease! The Following Parts should be lubricated daily to ensure proper machine maintenance - Pressure Foot should be lifted up Tower Stem and oiled.
- Page 11 Plastic Coved Feed Tray Mold Plate Guard Assembly Tower Disassembly Tool *Numbers 5 & 6 also sold as an assembly Knock Out Cup Assembly Knock Out Cup Exploded View *Knock Out Cup Hardware is also sold as an assembly. -Knock Out Cup Assembly w/ Hardware is Part #571 -Knock Out Cup Hardware Only is Part #571-H1 Item# Description...
- Page 12 PaceSetter Hopper Front View PaceSetter Hopper Rear View PaceSetter Hopper Bottom View PaceSetter Feeder Top View Item# Description Part # PaceSetter Hopper Casting PS545 PaceSetter Hopper Chamber Lid PS545-A Hex Hold Down Bolt (Also used as Hopper Hold Down) 556B...
- Page 13 Machine Front View Machine Left Side View Machine Right Side View Machine Rear View Item # Description Part # Item# Description Part# Paper Interleaver Arm and Bolts Feed Tray Tower 620-5 Knock Out Arm and Bolts 502B Feed Tray Tower Block 620-6 Knock Out Cup 571-1...
- Page 14 (Set of 2) PS498 Motor Extension Shaft and Screws 517 Weight Shaft Hardware Paper Sleeve Stop (2) 248A PaceSetter Motor Cover Hdwr. PS538 Stainless Steel Paper Pivot Rod (2) 247 Conveyor Belt Conveyor Belt Guard PS536 Paper Interleaver Casting Frame...
- Page 15 Ring Pin Pressure Plate Mold Plate Bottom View Mold Plate Side View Double Seal Spacer Plate PaceSetter Feeder PaceSetter Hopper and Feeder Assembled Top View Washer & Shear Key Hold Down Bolt Item # Description Part # Item # Description...
- Page 16 Machine Switches Front View Guard Switch Interior View On/Off Switch Interior View Tower Switch Interior View Item# Description Part # Key Latch 609-A1 Plunger Switch Boot 608-1C On/Off Switch Guard On/Off Switch Boot 500B Power Cord 115-01 Wire Grommet Guard Switch 608-1B Guard Switch Wire 608-1C...
- Page 17 Tower Assembly w/ Tower Block Tower Assembly Exploded Bottom View Tower Assembly Tower Assembly Exploded Top View Machine View Item# Description Part # Tower Pad 620-08 Tower Stem 620-3 Tower Rod 620-5 Tower Block 620-6 Tower Locator Lock Bolt 620-7 Tower Switch 620-10 Rubber Seal...
- Page 18 Timing Chain and Link Main Shaft Clamp Main Shaft Clamp Hardware Main Shaft Fender Washer and Hardware 240-1 Main Shaft Driven Sprocket Main Shaft Threaded Insert Set Screw 464-2 Main Shaft Insert 464-1 Main Shaft Sprocket Key PaceSetter Grease Line Assembly PS704...
- Page 19 3 Grease Lines and 6 Ferrule(1 Ferrule Connecting Arm Thrust Washer 456B shown here) PS700 Connecting Arm Cotter Pin 455A PaceSetter Grease Line System(Entire Connecting Arm Bushing (White System not Shown) PS704 Poly Bushing pressed into the Crank Shaft Connecting Arm...
- Page 20 Motor to Main Shaft Bottom View Idler Arm Assembly Parts Part # 229 – Idler Arm Assembly Includes spring, tab, arm, and all hardware Item# Description Part # Machine Legs (Setof Four) Motor Drive Sprocket (Note amount of teeth) Motor to Man Shaft Chain and Link Idler Arm Shoulder Bolt Hardware 229B Idler Arm Shoulder Bolt...
- Page 21 Knock Out Cam Bottom View Knock Out Lever Assembly Knock Out Shaft and Lever Assembly 8 & 9 Item# Description Part # Crank Housing Hardware Steel Knock Out Cam Assembly 472-S Machine Legs (set of 4) Steel KO Cam Drive Key 477-1 Knock Out Shaft Part # 450X...
- Page 22 Main Shaft C/W Insert and Set Screw PaceSetter Bed Plate PS602 Main Shaft Insert 464-1 Mold Plate Guide Rail Bolts (Set of 2) PaceSetter Guide Rail PS494A PaceSetter Guide Rail Button Bolts (Set of 2) PS494B PS494C PaceSetter Guide Rail Set Screws (Set of 2)
- Page 23 Paper Interleaver Motor Parts Breakdown Item # Description Part # Key Output Shaft P00464-0001 Output Shaft J00625-0037 Inter Low Sp. Gear A00559-0001 Screw, pan combo R12022-001 Cover Assembly D006150003 Gear, Plastic A04046-0001 High Sp. Gear, Steel A04046-0002 Gear Case Assembly D00791-0023 E13286-0002 Ball Bearing (Contact Factory)
- Page 24 Main Motor Breakdown Item# Description Part # Motor Assembly D13807-0001 Assembly Case D12526-0004 Cover Assembly D12525-0001 Gasket P01475-0002 High Sp. Gear, Fiber w/ Bearing A03402-0001 Output Gear Assembly A03403-0001 Bearing (Output) L01792-0001 Bearing Kit D12522-0005 Torque Bolt R12023-0011 Key Output Shaft Seal P00464-0001 Shaft J01477-0001...
-
Page 26: Warranty Information
Warranty Information This appliance is guaranteed to original purchaser to be free from defects in materials and workmanship. Warranty shall be limited to repairing or exchanging any part that in our judgment shows evidence of defect within three years of the original date of purchase. - Page 27 Important Information on Your Machine Patty-O-Matic Inc. Model PaceSetter Serial Number_________________________________________________ Date Purchased________________________________________________ Purchased From What Dealer___________________________________ Dealer Address and Phone Number_______________________________ _____ _________________________________________ ______________________________________________ ______________________________________________ Maintenance Performed on Machine______________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ Owner’s Notes_________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________...
- Page 28 NOTES _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________...
