Summary of Contents for Patty-O-Matic PR12

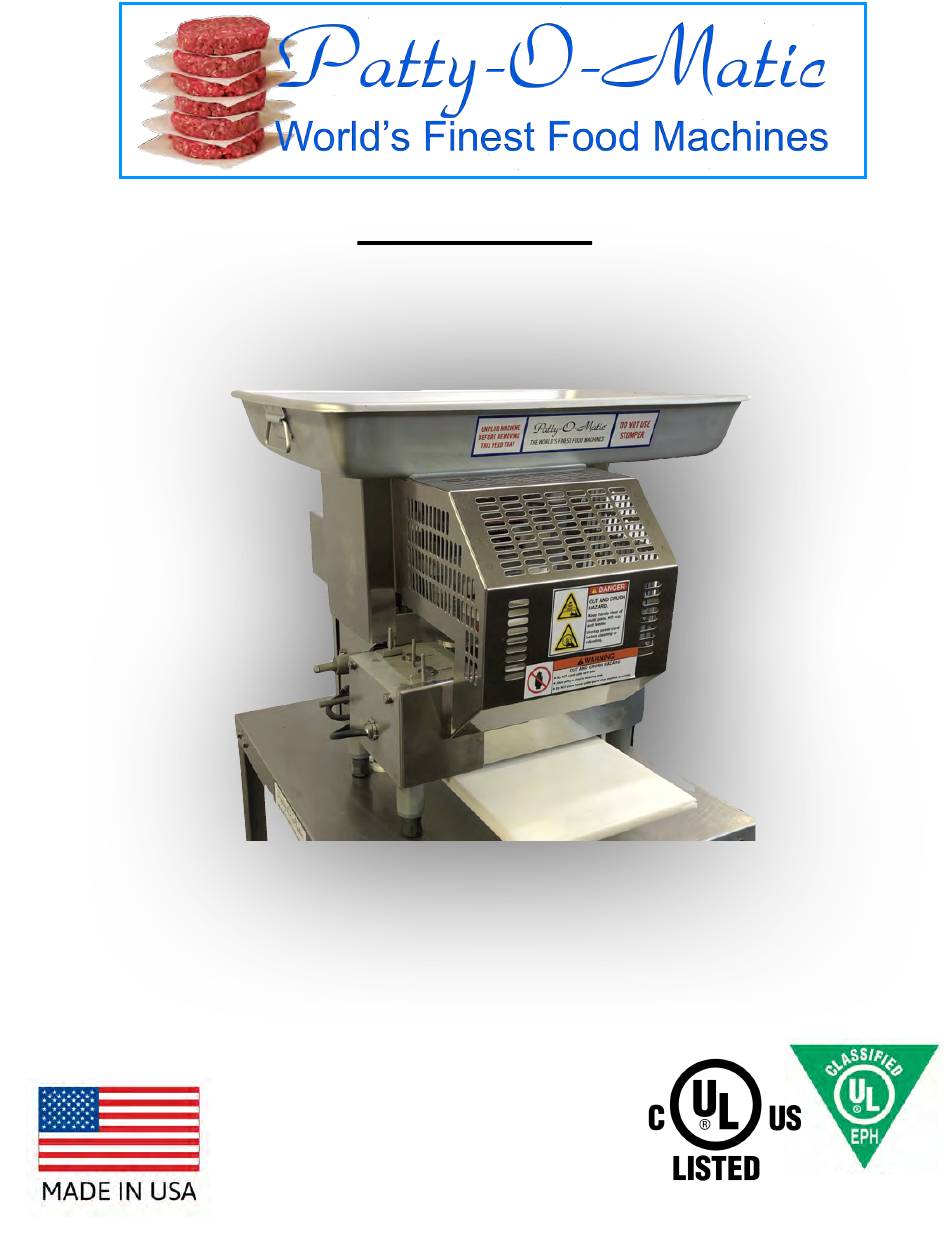

- Page 1 Model PR12 Owner’s Manual Revised October 2019 Patty-O-Matic Inc. Route 547 P.O. Box 404 Farmingdale NJ,07727 (732)938-2757 Toll Free in USA: 877-938-5244 www.pattyomatic.com info@pattyomatic.com NSF/ANSI 8 E469483 E475191...
-
Page 2: Table Of Contents
Page 3 • Installing Machine on Riser Platform Page 3 • Installing Rear Machine Guard Feed Tray Page 3 • Accessories Equipped with the Model PR12 Page 4 • Parts to Become Familiar with Page 5 • Label Location and Description Pages 6&7... -
Page 3: Installing Machine On Riser Platform
The Model PR12 is shipped to you in at least two cartons which contain the patty machine, feed tray complete with mold plate guard, rear machine guard, spare parts box, riser platform, and this manual. If you purchased your machine with any other accessories, such as a mobile table or patty paper, these items may be in a separate carton. -
Page 4: Accessories Equipped With The Model Pr12
Accessories Equipped with the Model PM18 Item# Description Part # Spare Parts Box Holds Spare Parts, Patty Paper Sample, Machine Lubricant, Speed Driver, and Locator Rings c/w instructions Receiving Table 609-6 Speed Driver 8 Ounce Bottle of Machine Lubricant and Cleaner Gallon of Machine Lubricant(Separate Order Only) 600A Machine Locator Rings... - Page 5 Please become familiar with some of the parts Please become familiar with some of the parts of your machine prior to operation of your machine prior to operating machine Feeder Feeder Top Washer Feeder View Pressure Plate Meat Stop Chamber Mixer Collar Hopper...
- Page 6 Proper Label Location for a Model PR12...
- Page 7 Item # Description Part# Danger Label 3 514-09a Warning Orange 514-02 Patty-O-Matic 514-08 Safety instructions 514-06 Danger Label 2 514-00 Serial Tag For UL Machines 514-15UL Store Tool 514-14 Warning Manual 514-01 Danger on/off 514-05 Do Not Pressure Wash 514-04...
- Page 8 Proper Procedure for Operating a PR12 When the Model PR12 is fully assembled with all guards secured in their proper place, put product to be molded in the Feed Tray. Push the product through the holes in the Feed Tray Guard, or under the Feed Tray guard and into the Hopper.
- Page 9 Changing Your Machine’s Mold Plate Always disconnect the machine from its power source before attempting to change or clean any of the machines component parts. First remove the T-Knob from the Back Drive of the Mold Plate, then pull the Mold Plate out from the rear of the machine.
- Page 10 Feed Tray Proper Disassembly for Cleaning your Model PR12 Push Rod Always Unplug Machine from its Guard Bolts Electrical Source Before Cleaning - Remove Feed Tray by lifting it off the Rear Machine Guard Hopper, and the Rear Machine Guard by...
-
Page 11: Installing Patty Paper
Shown without guard for better visual adjusted for different size patty paper Patty-O-Matic Inc. offers the highest quality patty paper, machine lubricant, and machine grease. Please contact the factory for information on these products. Toll Free in the U.S.A. 877-938-5244 www.pattyomatic.com... - Page 12 Points of Daily Lubrication For Your Model PR12: Always Unplug Machine and use Food Approved Oil and Grease! The Following Parts should be lubricated to ensure proper machine maintenance - Pressure Foot should be lifted up Ball Knob and oiled. Hold the Ball Knob and lift up.
-
Page 13: Mold Plate Guard Assembly
Rear Machine Guard Knock Out Cup Assembly Knock Out Cup Assembly Exploded View -Knock Out Cup Assembly is Part #PR12-571 -Knock Out Cup Hardware Only is Part #PR12-571-H1 Item# Description Part # Feed Tray Guard Assembly Feed Tray Guard Hardware... - Page 14 Pressure Plate Block 547-YR Feeder Hopper Nylon Bushing Set Screw(3 Required) Hopper Threaded Plug PR12 Guard Sign Hardware PR12-551-C Hopper Nylon Bushing c/w set screws Mixer Collar Set Screw Mixer Collar Witness Marks (one on Feeder and Mixer Collar for location)
- Page 15 PR12-506-2 Paper Attachment Bracket 115-01 Tower Sleeve 620-06 Knock Out Spring Stud PR12-490A Tower 620-5 On/Off Switch Guard PR12 Knock Out Nylon Hardware PR12-502A On/Off Switch Boot 500B Tower Block 620-6 Power Cord 115-01 Knock Out Spring Wire Grommet PR12-519-1...
- Page 16 Paper Interleaver Casting PR12-519 Motor Block Hardware PR12-516-2 Paper Interleaver Set Bolt PR12-519-1 Paper Motor Mounting Hardware PR12-516-3 Paper Interleaver Main Plate Bolts PR12-519C Paper Interleaver Chain and Link PR12-516B Romex Connector Paper Interleaver Sprocket PR12-516A Paper Pin Adjusting Hardware PR12-539...
-
Page 17: Feeder Assembly
546C Transition Plate(Specify Size PR12-569 Ring Pin Pressure Plate 546-3 Rear Machine Guard Hold Down Bolt PR12-550R-1 Part # PR12-563 - Mold Plate Round Mold Plate Only 563-1 Air Grooves (colored for visual) Assembly Back Drive Only PR12-564 -Includes Round Mold Plate,... - Page 18 Description Part On/Off Switch Guard On/Off Switch Boot 500B Wire Grommet Power Cord 115-01 Rear Machine Guard Switch PR12-608-1B Round Key Latch PR12-553-R Rear Machine Guard Switch Wires PR12-608-1D Machine Casing(Includes All Panels) PR12-493 10 AMP Circuit Breaker 115-10 On/Off Switch...
-
Page 19: Tower Assembly
Knock Out Guide Rod and Hardware 620-8 Tower Jam Nut 620-06 Tower Spring 620-9 Tower Acorn Nut 620-15 Tower Bushing 620-4 Tower Switch Wire 620-10A Knock Out Tube Hardware PR12-460B Knock Out Bushing Screw PR12-460A Knock Out Shaft Bushing( Pressed in Tube) PR12-462... - Page 20 Lever Block Item# Description Part # Knock Out Lever Block Hardware(2 Required) PR12-450B Knock Out Lever PR12- 450 Knock Out Lever Hardware PR12- 451 Cam Follower Bearing Cam Bearing Hardware PR12- 475 Knock Out Lever Block PR12- 450A Knock Out Cam...
-
Page 21: Main Shaft Assembly
Transmission and Main Shaft Assembly Item# Description Part # Main Shaft c/w Insert and Set Screw PR12-464 Crank-Connecting Arm Assembly PR12-455 Crank Connecting Arm Assembly PR12-455 Knock Out Cam PR12-472 Transmission PR12-484A Transmission Brackets (Set of 2) PR12-484B Transmission Bracket Hardware (Set of 4) - Page 22 Machine Interior View Item# Description Part # Transmission Pulley PR12-484C Transmission Pulley Drive Key PR12-484C1 Machine Leg with Hardware PR12-446C Set of 4 Rubber Feet V-Belt PR12-471 Motor/Transmission Fastening Hardware(Set of 4) PR12-484-1 Motor Pulley PR12-465 Main Motor PR12-484 Knock Out Spring(Shown Upside Down)
- Page 23 Main Shaft Block c/w Bushing PR12-464A Guide Rail (2 Required) Grease Fitting PR12-464B Hopper Bushing Set Collar O-Ring PR12-603E Travel Indicator Plate Travel Indicator Plate Screws 999A Protégé Guide Rail Bolts (1 Long 1 Short)(Long towards front) PR12-495 Hopper Bushing Set Collar PR12-603D...
-
Page 25: Warranty Information
Warranty Information This appliance is guaranteed to original purchaser to be free from defects in materials and workmanship. Warranty shall be limited to repairing or exchanging any part that shows evidence of defect within One Year of the original date of purchase. - Page 26 Patty-O-Matic Inc. Model PR12 Serial Number_________________________________________________ Date Purchased________________________________________________ Purchased From What Dealer___________________________________ Dealer Address and Phone Number_______________________________ _____ _________________________________________ ______________________________________________ ______________________________________________ Maintenance Performed on Machine______________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ Owner’s Notes_________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________...
-
Page 27: Notes
Notes ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________...
