Model#s:
WP-605, WP-1105,
WP-2205 &WP-2255
U l t rasonic Occupancy Sensors
32kHz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WattStopper WP-605 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LEGRAND WattStopper WP-605

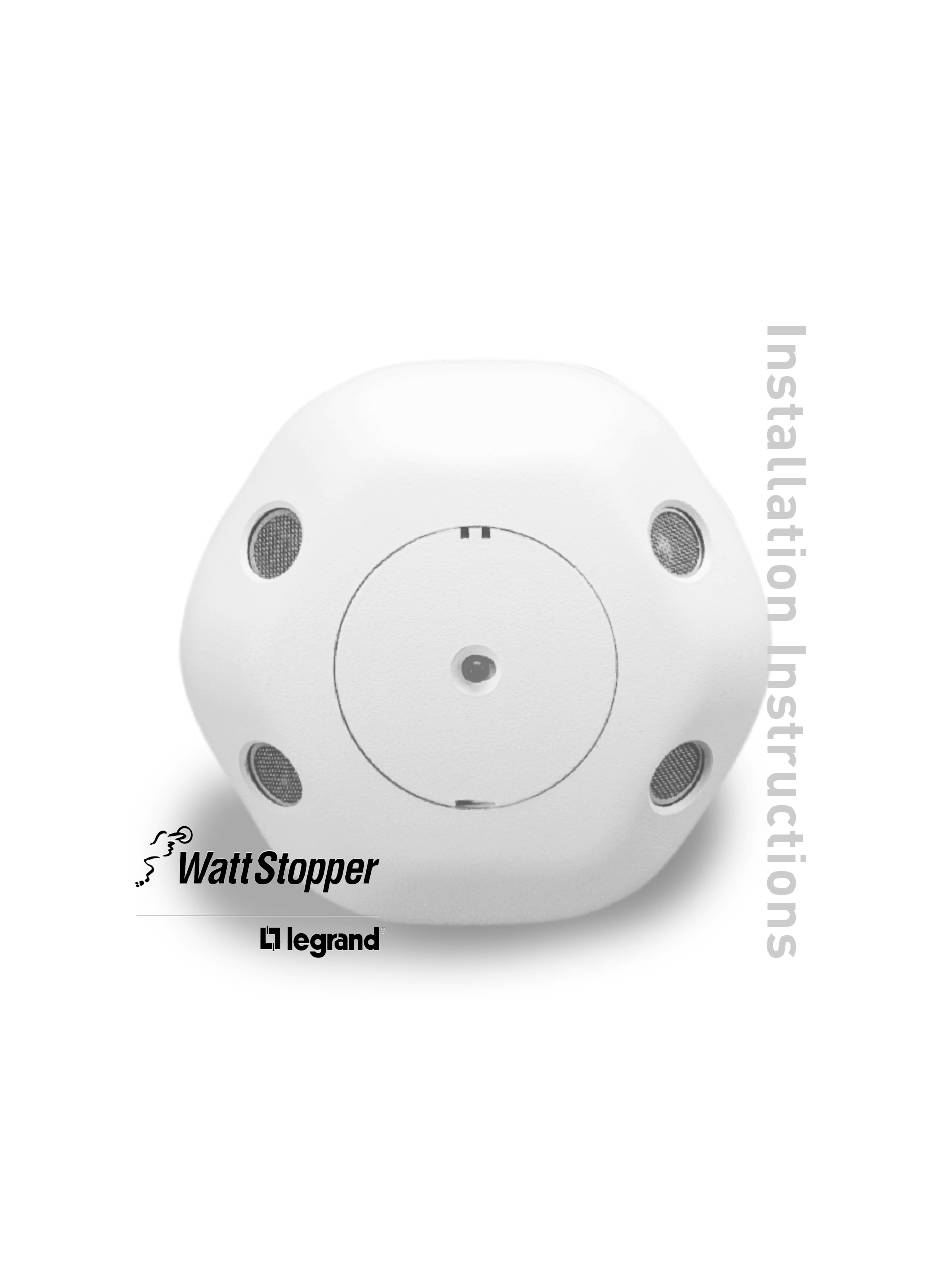

  • Page 1 Model#s: WP-605, WP-1105, WP-2205 &WP-2255 U l t rasonic Occupancy Sensors 32kHz...
  • Page 2: Unit Description

    UNIT DESCRIPTION The Watt Stopper ultrasonic occupancy sensor opera tes on 24VDC, or half wave re c t i fie d 24VAC, and a u to m a t i ca l ly turns lighting syste m s on and off based on occ u p a n c y. The sensors use Dopple r te c h n o logy to sense occ u p a n c y.
  • Page 3: Unit Placement

    UNIT PLACEMENT P l a cement of ultrasonic sensors is critical for proper operation. It is best to place the sensor so that it has a clear view of all desktops and work surfaces within the coverage area. Orientation of the sensor is also important. The WP-605 offers 360° one-sided coverage while the WP-1105, WP-2205 and WP-2255 provide 360°...
  • Page 4: Installation

    Note: Always try to attach the sensor to a vibration free surface. INSTALLATION Acoustic Tile Mounting Washer Install the Threaded Insert, flange side, into the hole 7/8" (22mm) hole Threaded on the back of the sensor. Turn clockwise until it locks. Insert Keyhole Mounting Ceiling Tile...
  • Page 5: Wiring Directions

    WIRING DIRECTIONS CAUTION TURN POWER OFF AT CIRCUIT BREAKER BEFORE WORKING WITH OR NEAR HIGH VOLTAGE. A sensor can be used to directly control up to two (2) RR7 relays in a WattStopper lighting control panel. Wiring to the relay is the same color convention as the panel wiring diagram. •...
  • Page 6: Sensor Adjustment

    SENSOR ADJUSTMENT THE SENSORS ARE FACTORY PRESET* TO ALLOW FOR QUICK INSTALLATION IN MOST APPLICATIONS. However, verification of proper wiring, coverage, sensitivity, and time delay adjustments can be made through the following steps. Sensitivity and Time Delay adjustments are both made under the sensor’s front cover. Insert a small flat-blade screwdriver in the slot of the front cover to open it.
  • Page 7 DIP Switch Settings Table DIP Switch LED Indicator Sensitivity Adjustment Trimpot (factory preset to 50%) The Sensitivity Adjustment Trimpot (labeled “S”) increases or decreases occupancy detection sensitivity. The Time Delay is the length of time the lights stay on after no motion has been detected. It is set with DIP Switches #1 –...
  • Page 8: Troubleshooting

    TROUBLESHOOTING CAUTION TURN POWER OFF AT CIRCUIT BREAKER BEFORE WORKING WITH OR NEAR HIGH VOLTAGE. • Check that wiring connections are correct and secure. • Make sure that the line voltage is +/- 10% of rating. • Setting the DIP switch to Output Disable sends a Single OFF pulse to the panel. •...
  • Page 9 Lights do not turn on, even with motion in the room, and: • The red LED does not flash (does not sense motion): – Make sure the circuit breaker has been turned back on. – Check the sensitivity setting and increase as needed. –...
  • Page 10: Ordering Information

    ORDERING INFORMATION Catalog # Description WP-605 360° one-sided, 32kHz Ultrasonic Occupancy Sensor, up to 600 sq ft coverage WP-1105 360° two-sided, 32kHz Ultrasonic Occupancy Sensor, up to 1100 sq ft coverage WP-2205 360° two-sided, 32kHz Ultrasonic Occupancy Sensor, up to 2200 sq ft coverage WP-2255 360°...
  • Page 11: Specifications

    SPECIFICATIONS Voltage ........24VDC, or Half Wave Rectified 24VAC Current Consumption: WP-605 .
  • Page 12: Warranty Information

    WARRANTY INFORMATION Watt Stopper/Legrand warranties its products to be free of defects in materials and workmanship for a period of five (5) years. There are no obligations or liabilities on the part of Watt Stopper/Legrand for consequential damages arising out of, or in connection with, the use or performance of this product or other indirect damages with respect to loss of property, revenue or profit, or cost of removal, installation or reinstallation.
