KEB COMBIVERT S6 Series Installation Manual

Control circuit
Hide thumbs Also See for COMBIVERT S6 Series:
Table of Contents

Advertisement

Quick Links

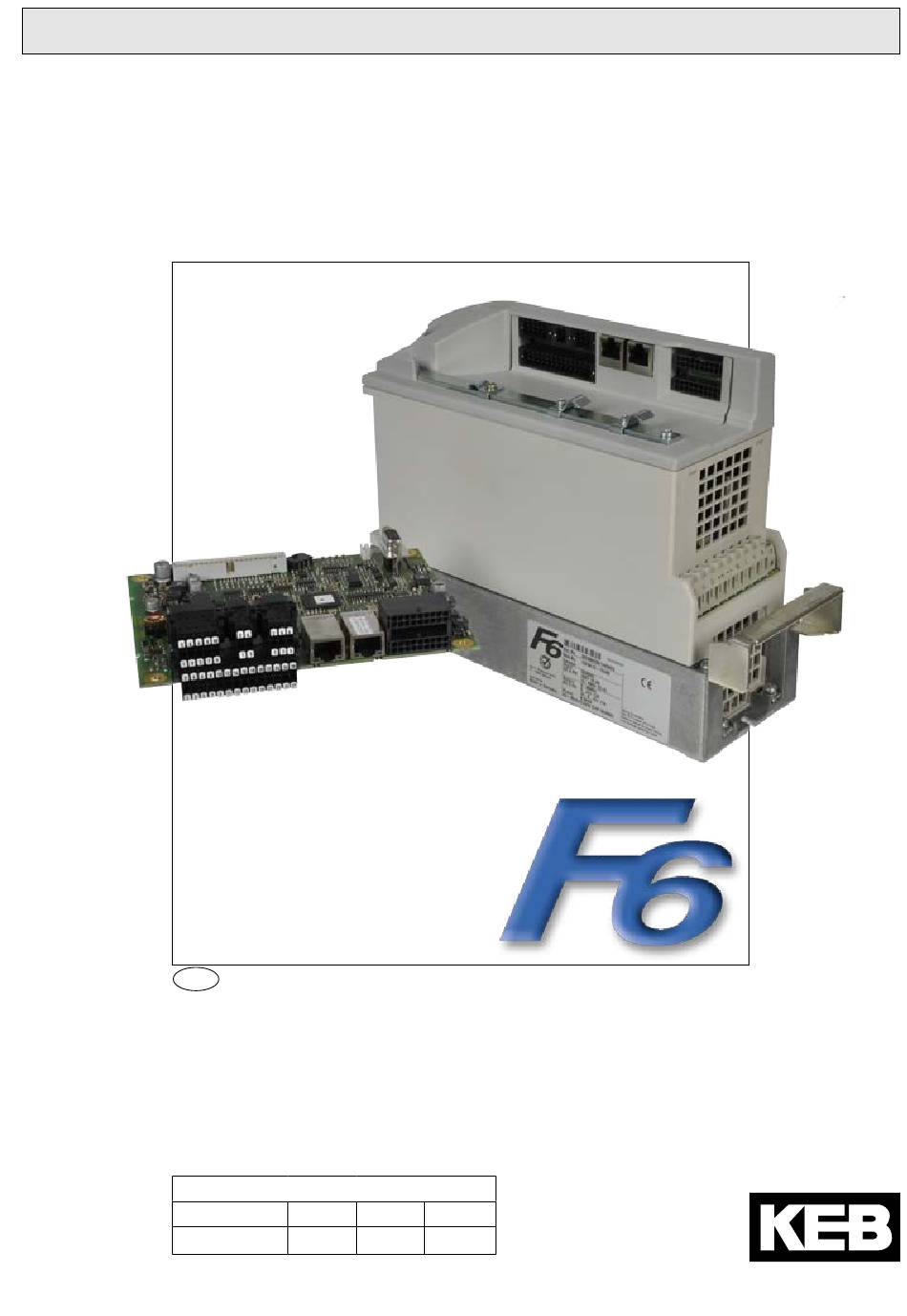

C O M B I V E R T
GB Installation Manual
F6 with Safety Function STO
Control Circuit
Translation of original manual
Document
Date
Part
Version
20094313
GBR
00
1014

Advertisement

Table of Contents
loading

Related Manuals for KEB COMBIVERT S6 Series

Summary of Contents for KEB COMBIVERT S6 Series

  • Page 1 C O M B I V E R T GB Installation Manual F6 with Safety Function STO Control Circuit Translation of original manual Document Date Part Version 20094313 1014...

  • Page 3: Table Of Contents

    Table of Contents Preface ......................5 General ..........................5 Safety Instructions ......................5 Validity and liability ......................5 Copyright ..........................6 1.5 Specified application ......................6 Product description ......................6 Control ......................8 Features of the control ......................8 Overview ..........................8 2.2.1 Control terminal strip X2A ......................
  • Page 4 Table of Contents 3.6.1 Direct switching off with emergency stop switch ..............23 3.6.2 Direct switching off with emergency stop switch and monitoring of the wiring ....24 3.6.3 Direct switching off by safety module with test pulses ............25 3.6.4 Wiring SS1 ...........................
  • Page 5 Precondition for all further steps is the knowledge and observance of the safety and operating instructions. This is provided accompanied by the de- vice or by the download site of www.keb.de. Non-observance of the safety and operating instructions leads to the loss of any liability claims.

  • Page 6: Preface

    Karl E.Brinkmann GmbH agency. Copyright The customer may use the instruction manual as well as further documents or parts from it for internal purposes. Copyrights are with KEB and remain valid in its entirety. , COMBIVERT , COMBICONTROL and COMBIVIS are registered trademarks of Karl ®...

  • Page 7: Product Description

    Preface Product description The product family COMBIVERT S6 with safety function STO has been developed for the use in safety-oriented applications. The basic standards as well as application and country- specific standards must be observed furthermore. The standards referred in this manual must be observed supplementary ! 1.6.1 Overview of functions The control provides the following functions: • hardware-installed supply of digital and analog inputs and outputs. • Diagnostic interface •...
  • Page 8 Preface 1.6.3 Corresponding documentation Attention Further documentation via www.keb.de • EMC and safety instructions • Installation power unit • Programming Manual GB - 8...

  • Page 9: Control

    Control Control Features of the control The control provides the following analog and digital functions: • Hardware allocation of digital and analog inputs and outputs. • CAN bus interface • Two field bus interfaces • Serial interface for connection to a pc • Two universal encoder interfaces • Hardware of the control circuit „safety separated“ according to EN 61800-5-1 (base TN- C/-S mains) • Safety function STO (two channel torque off) Overview Control 2KF6 Control 1KF6...

  • Page 10: Control Terminal Strip X2A

    Control 2.2.1 Control terminal strip X2A The control terminal block X2A is designed as double, plug-in terminal block with spring cage connection. It contains 28 pole. 2.2.2 Safety terminal block X2B The safety terminal block X2B is designed as double, plug-in terminal block with spring cage connection.

  • Page 11: Connection Of The Control

    Control Connection of the control The following instructions must be observed at connection: Attention Prevent EMC malfunctions • Use shielded / drilled cables • Lay shield on one side of the inverter onto earth potential • Install control cables and power cables separately (approx. 10…20 cm distance); Kreuzungen im rechten Winkel verlegen • To avoid interferences a separate shielding must be provided for analog and digital control lines. Depending on the use of the relay outputs, an ex- tra shielding is to be used, too.

  • Page 12: Assignment Of The Terminal Strip X2A

    Control Assignment of the terminal strip X2A PIN Name Description Specifications Out1 Digital output 1 =100 mA Reference potential for digital output Out2 Digital output 2 =100 mA Reference potential for digital output Out3 Digital output 3 =100 mA Reference potential for digital output Out4 Digital output 4 =100 mA...

  • Page 13: Connection Of The Digital Inputs

    Control 2.4.1 Connection of the digital inputs Examples for the connection of the digital inputs with internal voltage supply with external voltage supply 101214 121416 11 13 1315 2.4.2 Connection of the digital outputs Examples for the connection of the digital outputs Connection appliance Connection to an external control COM DI1...

  • Page 14: Assignment Of The Sto Terminal Strip X2B

    Control Assignment of the STO terminal strip X2B Name STO1+ STO1+ Input STO channel 1 STO1- STO1- STO2+ STO2+ Input STO channel 2 STO2- STO2- STO-OUT Output STO STO-OUT The individual channels are designed potential-free, so 24V and 0 V can be connected. The inputs are designed by way that safety switchgear units with test pulses (OSSD signals) can be connected. The signals are not evaluated, they are only filtered.

  • Page 15: Assignment Of The Can Terminal Strip X2C

    Control Assignment of the CAN terminal strip X2C Name Notes CAN low internally bridged CAN low CAN high internally bridged CAN high Assignment of the terminal strip for analog inputs X2D Name Notes Specification AN1- ±10 Vdc or non-floating 4…20 mA AN1+ differential input 1 0…+20 mA...

  • Page 16: Diagnosis/Visualisation

    Control 2.7.2 Diagnosis/visualisation The integrated RS232/485 interface serves for the connection of service tools (e.g. COM- BIVIS) and displays. Telegram DIN66019II is used as communication protocol. The correct configuration and language file must be loaded for the operation with COMBIVIS. The downlad can be done via the KEB website. Interface Standard Connecting cable RS485 TIA/EIA-485 and ISO 8482 RS232 ANSI TIA/EIA-232 0058025-001D RS232/USB 0058060-0020 2.7.2.1 Assignment of the interface X4A reserved reserved TxD (RS232) DGND (reference potential) RxD (RS232) TxD-A (RS485) RxD-A (RS485) TxD-B (RS485) RxD-B (RS485) 2.7.2.2 Connection of the RS232 interface A RS232-cable is needed to connect the interface operator with the PC.

  • Page 17: Wiring Rs485 Full Duplex

    Control A biasing can be used if there are still interferences. However, this should be done only once at the communication bus (preferably at the master). 2.7.2.4 Wiring RS485 full duplex COMBIVERT COMBIVERT R=120Ω 5 4 3 2 1 5 4 3 2 1 9 8 7 6 9 8 7 6 Master TxD-A TxD-B...

  • Page 18: Socket X4C Ethercat In And X4B Ethercat Out

    Control Socket X4C EtherCAT IN and X4B EtherCAT OUT Description of the LEDs Name Description Bus speed (yellow) EtherCAT IN Link/Activity (green) Bus speed (yellow) EtherCAT OUT Link/Activity (green) LED bus speed (yellow) Function Transmission error EtherCAT ready for operation with 100 MBit LED Link/Activity (green) Function Port closed; no data transfer Port opened; no data transfer flicker Port opened with data transfer Encoder Parameter The control contains two encoder interfaces.

  • Page 19: Encoder Interfaces X3A And X3B

    Control 2.9.1 Encoder interfaces X3A and X3B Do not plug on/remove en- To avoid undefined states do not plug on/remove coder cable during operation the encoder cable during operation. The integrated encoder interfaces are designed for different encoders. The following table contains the possible encoders and the appropriate signal assignment of the plug connector. Pin assignment according to the adjusted encoder interface (frontview of the control) encoder...

  • Page 20: Safety Function Sto

    Safety Function STO Safety Function STO Uncontrolled start is possible by improper installation of the safe- ty technology. This may cause death, serious bodily injuries or Only substantial damage to property. qualified Therefore the safety function may only be installed and put into Staff operation by qualified personnel which are trained in safety tech- nology.

  • Page 21: Emergency Stop According En 60204

    Safety Function STO Characteristic data for „Safe torque off“ • Power supply for the rotation direction of the motor is interrupted (free-wheeling motor) • Used when monitoring of standstill is not necessary • Unintentional starting of the motor is prevented • No galvanic isolation of the motor from the inverter DC link What is realized by the STO function related to EN 60204 ? Emergency stop can be realized by the STO function, since the mains voltage may remain effective.

  • Page 22: Classification Of Sto According Iec 61508

    Safety Function STO This behaviour can occur either by a short circuit of the IGBTs or by interconnection (also short circuit) of the control drivers. The error should be regarded as critical, if the drive re- mains in STO status. Classification of STO according IEC 61508 2.6 • 10 2.3 • 10 on demand Proof-Test-Interval T 20 years For SIL classification in connection with the applications consider the failure rates of the ex- ternal switch devices for final evaluation. Classification of STO according EN ISO 13849 Category MTTF >1000 years high For the classification within a performance level in connection with the applications consider the failure rates of the external switch devices for final evaluation. Additional instructions • The unit must be isolated from mains by main switch when working on parts under volt- age.

  • Page 23: Functional Description

    Safety Function STO Functional Description The COMBIVERT with integrated safety function meets the following function according to IEC 61800-5-2: • „Safe torque off“ (Safe Torque Off – STO) The safety-related disconnection according to STO is reached by a two-cannel opto-coupler blockage. The supply of the opto-couplers, which are responsible for the commutation of the connected drive occurs via transformation coupling of the input voltage. This ensures at input voltage loss that no supply of the opto-couplers is possible. If the opto-couplers are not longer supplied, no IGBT can be controlled and thus no energy can be supplied to the drive.

  • Page 24: Wiring Examples

    Safety Function STO Wiring Examples 3.6.1 Direct switching off with emergency stop switch Diagnosis Field bus Field bus Control circuit 24Vdc Safety module Terminal strip X2B 1 - STO1+ 2 - STO1+ 3 - STO1- 4 - STO1- 5 - STO2+ 6 - STO2+ 7 - STO2- 8 - STO2-...

  • Page 25: Direct Switching Off With Emergency Stop Switch And Monitoring Of The Wiring

    Safety Function STO 3.6.2 Direct switching off with emergency stop switch and monitoring of the wiring Diagnosis Field bus Field bus Control circuit 24Vdc Safety module Terminal strip X2B 1 - STO1+ 2 - STO1+ 3 - STO1- 4 - STO1- 5 - STO2+ 6 - STO2+ 7 - STO2-...

  • Page 26: Direct Switching Off By Safety Module With Test Pulses

    Safety Function STO 3.6.3 Direct switching off by safety module with test pulses Diagnosis Field bus Field bus Control circuit open closed Safety module Terminal strip X2B Safety device 1 - STO1+ Receipt 2 - STO1+ 3 - STO1- 4 - STO1- 5 - STO2+ 6 - STO2+ 7 - STO2-...

  • Page 27: Wiring Ss1

    Safety Function STO 3.6.4 Wiring SS1 At tripping SS1 (Safe Stop 1) the drive is only disconnected from supply when it has reached a standstill [IEC 61800-5-2]. The stop mode is not directly requested, but the maximum time until reaching the standstill is estimated. This period is loaded in a safe time relay, which dis- connects the drive finally from supply. Field bus Motion Control Diagnosis Field bus Field bus Control circuit open closed Safety module Terminal strip X2B Safety device 1 - STO1+...
  • Page 28 Safety Function STO Function: If the selected input becomes active, the drive decelerates with the adjusted decel- eration ramp and changes then into status 59 „Error prog. input“. GB - 27...

  • Page 29: Certification

    Annex Certification Annex to the declaration of conformity Annex to the declaration of conformity EC for systems with functional safety: Product designation: Inverter - type series xxF6Kxx-xxxx Dimension 07 - 36 Voltage class 200 Vac; 400 Vac; 600 Vac Herewith we declare that the safety module described above corresponds with all relevant regulations of the machinery safety directive 2006/42/EC. The above mentioned safety module meets the requirements of the following guidelines and standards: •...
  • Page 30 Annex The conformity was confirmed by the TÜV Rheinland with the EC type examination 01/205/5332/13. The number/address of the indicated constitution: NB 0035 TÜV Rheinland Industrie Service GmbH Alboinstr. 56, 12103 Berlin Germany Tel.: +49 30 7562-1557 Fax: +49 30 7562-1370 E-Mail: tuvat@de.tuv.com GB - 29...

  • Page 31: Revision History

    Revision history Revision history Revision Date Description Rev.1A 2013-01 First published version Rev.1B 2013-04 Preface supplemented; common typus corrected; note to potential reference STO-Out inserted; EtherCAT IN and OUT exchanged (chap. 2.8) Rev.1C 2013-08 Title corrected GB - 30...
  • Page 32 Notices GB - 31...
