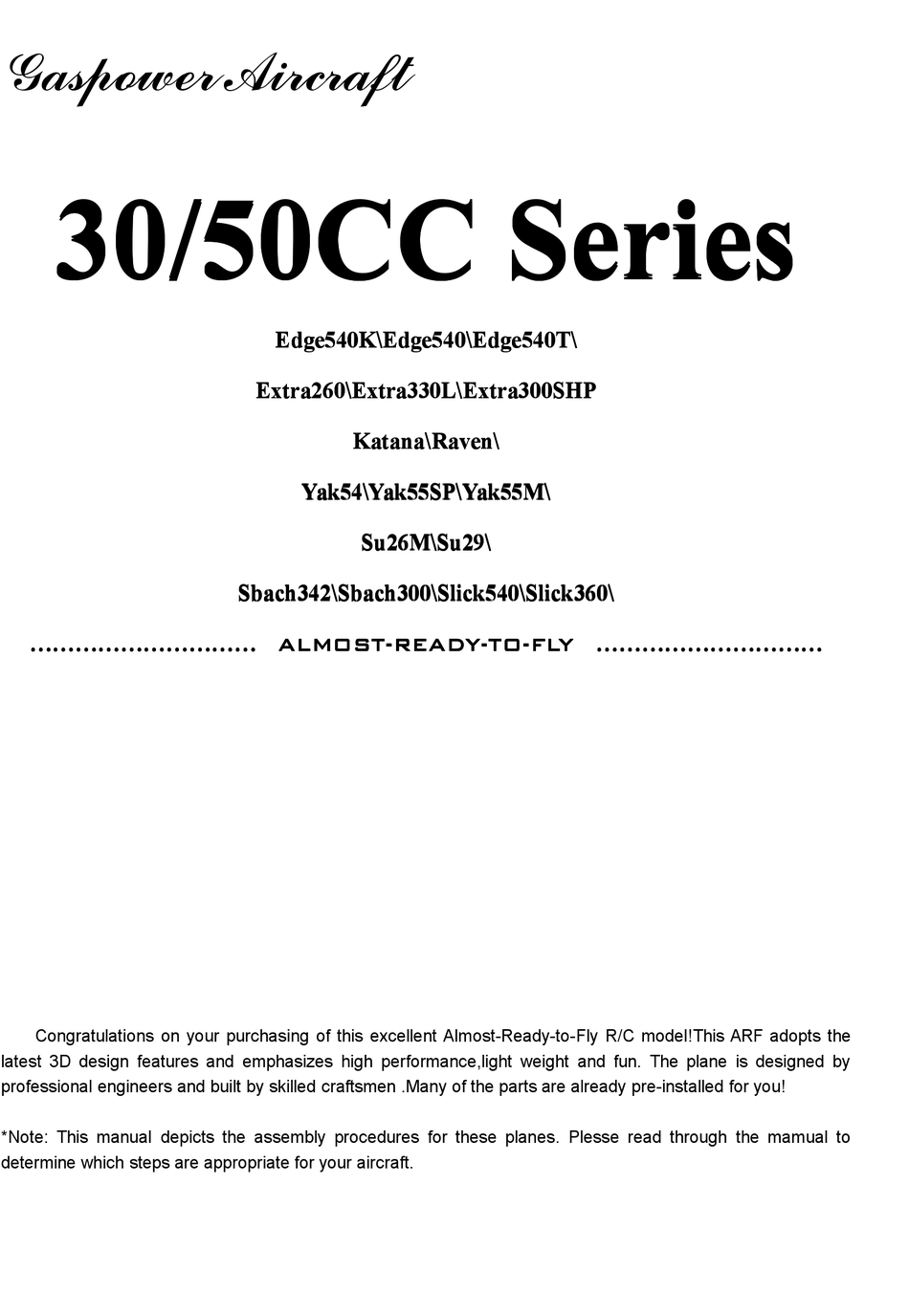

Gaspower Aircraft 50CC Series 30/50CC 50CC Series Series Edge540K\Edge540\ Edge540T\ Edge540K\Edge540\ Edge540K\Edge540\Edge540T\ Edge540T\ Extra260\Extra330L\ Extra300SHP Extra260\Extra330L\ Extra260\Extra330L\Extra300SHP Extra300SHP Kata Raven\ Kata Katana\ na\Raven\ Raven\ Yak54\Yak55SP\ Yak55M\ Yak54\Yak55SP\ Yak54\Yak55SP\Yak55M\ Yak55M\ Su26M Su26M Su26M\Su29\ \Su29\ \Su29\ Sbach342\Sbach300\Slick540\Slick360\ Sbach342\Sbach300\Slick540\Slick360\ Sbach342\Sbach300\Slick540\Slick360\ ALMOST-READY-TO-FLY ………………………… ALMOST-READY-TO-FLY ALMOST-READY-TO-FLY …………………………...
Page 2
Cautions: This model model is is is not not a a a toy! toy! Cautions: Cautions: This This R/C R/C model toy! The RC aircraft is not a toy! If misused,it can cause serious bodily harm and damage to property.Fly it only in open area and follow all instructions including your Radio and Engine.
Page 5
Other Items Needed(not included included in in in the kit ) ) ) Other Other Items Items Needed(not Needed(not included the kit Propeller 19*10~23*8,30cc use 19*10 ~20*10,50cc use 22*10 ~ 23*10 Spinner(3”-4”) 18”or 36”servo Extension Additional Requried Equipment Additional Additional Requried...
Page 6
Other Required Items Other Other Required Required Items Items Epoxy brushes Petroleum jelly Felt –tipped pen or pencil Rubbing alcohol Measuring device (e.g.ruler,tape measure) Sandpaper(coarse) Mixing sticks for epoxy Covering iron ...
Page 7
Apply epoxy into the hinge holes of the leading edge. Apply epoxy to the other side of the hinges. Install the control surfaces. Move the surface up and down a couple of times to make sure all the hinges are aligned correctly and the desired throw is attained (Aileron:40degrees,others:45degrees) ...
Page 8
When the wheel and wheel pant are installed completely,you can adjust these two wheel collars to let the wheel be in the center of the wheel pant. Note: thread locking compound when installing nuts bolts during assembly. Note: Note: Use Use thread thread locking locking compound...
Page 9
Cover the main landing gear with the housing by attaching it with the screws provided.This step is only for Yak55SP/Yak54/SU26M. Tail Wheel Instllation Tail Tail Wheel Wheel Instllation Instllation Center the tail wheel bracket on the mounting block. ...
Page 10
Let the control wire through the holes of connective bolt and landing gear connector. Tighten the screw to secure the control wire. Install the wheel with two wheel collars,ensuer that the wheel rolls freely. Ⅲ. . . Tail Tail surfaces Installation...
Page 11
Screw the ball link onto the horns. Connect the pull-pull wire and control horn with ball link. Thread the cable connecter halfway into the ball link . Pass the cable into the fuselage through the slot . ...
Page 12
Secure the servo arm to the rudder servo by using the screw that came with the servo. Install a 24”servo extension onto the elevator servo.Either tie the servo leads together,or use a connector to secure the extension to prevent it from coming loose during flight.
Page 13
Follow the same way to install the elevator control system like rudder control horn installation. Connect the pushrod and control horn as shown. Put the control horn into the slot pre-opened, glue it to the stab, on each side. ...
Page 14
engine you choose to install. Drill the installation holes on the firewall .If you intend to install nitro engine,you need to install the engine mount on the firewall with screws first. Drill holes on the engine mount and firmly fasten the screws on the mount.
Page 15
We support two pieces woods . If you not use the canister , you can use one piece to close the hole after the engine . If you use the canister , you can use one piece to close the hole after canister. Ⅴ.Fuel .Fuel Tank...
Page 16
Bend two fuel tubes carefully to a 45-degree angle using your fingers.These will be the fuel tank fill and vent tubes.Use carefully not to kink the tube while bending. Locate the rubber stopper. Insert the three metal fuel tubes into the holes in the stopper so that an equal amount of tube exrends from each side of the stopper.
Page 17
● Assemble and check the fuel tank to ensure there are no leaks before istalling it. Make suer you conncet the three inlet/outlet tubes (see picture) correctly when connecting the fuel lines. ● Bind the fuel tank with nylon strips. Ⅵ.Cowling .Cowling Instalation...
Page 18
● Cut out the necessary holes in the cowl to accommodate your engine. Keep in mind that you may need to relieve the lower portion of the cowl in order to provide adequate airflow for the engine. ● Install a suitable propeller and spinner on the engine according to the suggestions from the engine manufacturer.
Page 19
● Install the control horn. Adjust the horn and servo arm. Fix the horn in place firmly. Install the ball link and push rod . Make sure it’s firm and flexible. Assembling Wing Assembling Assembling the the Wing Wing ● Use the wing tube to attach the wing halves to the fuselage.
Page 20
● Trial fit the canopy to the hatch to determine screw locations. ● Drill D2mm hole for the canopy screws. ● Install the canopy by using the wood screws. ● Install the hatch onto the fuselage by using the wood Screws. When satisfied with the fit ,remove the canopy and hatch,and then use optioal canopy glue to fix the canopy.
Page 22
Aileron 40 degrees Elevator 40 degrees 3 D flying Rudder 45 degrees rail run the Engine to check its stability at high speed and low speed to ensure there are no problems with vibration on the model. Run the motor at high speed about 30 min,check the Engine and make sure the temperature is bleow the prescription of manufacturer.Once everything is right...
