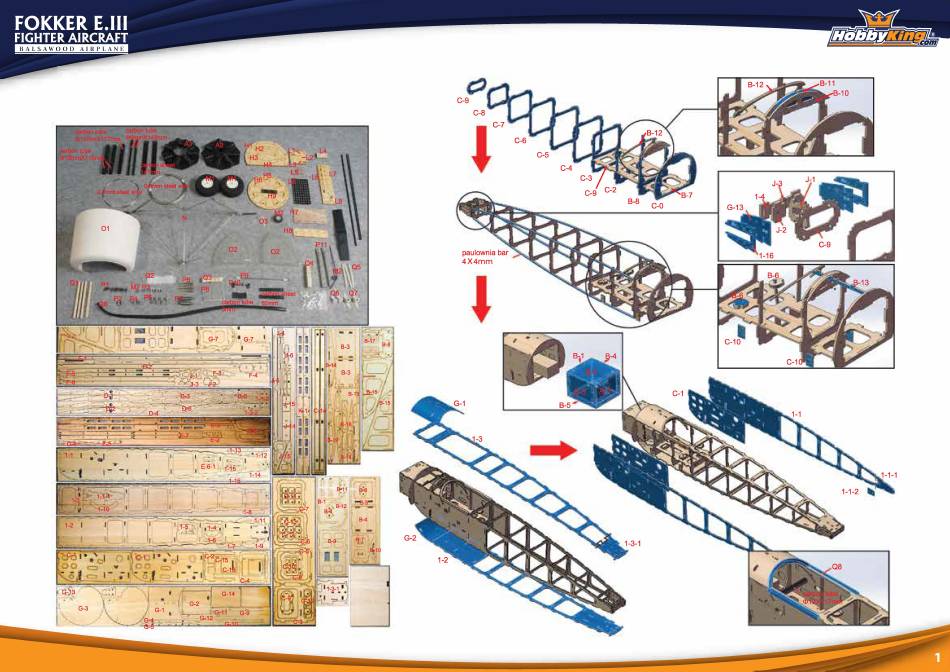

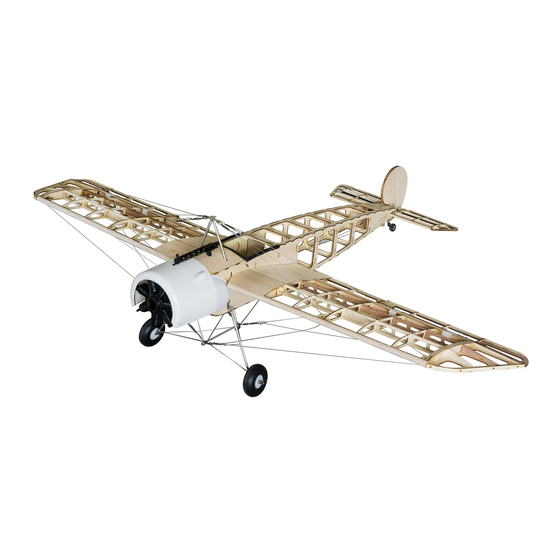

- Page 1 Fokker E.111 Fighter Aircraft BALSAWOOD AIRPLANE INSTRUCTION MANUAL The Fokker E.111 was the main variant of the Eindecker (monoplane) fighter aircraft of World War I...
- Page 2 14*10 balsa bar Assembly of the scale engine and machine gun Accessories Assembly Diagram Insert the 4mm carbon tube in the middle of the 2•1omm carbon sheet, and lock the arm on the Assembly finished...
- Page 3 Fokker E.111 Fighter Aircraft Assembly diagram of upper bracket and landing gear Installation diagram of the horizontal tail and servo pushrod fitting Connect the servo and tail with wiring use the 0.3mm steel wire as wiring...
- Page 4 Assembly diagram of the cowling and scale parts Assembly diagram of wing wiring Use the 0.8mm steel wire as wiring The wiring starts from 1,then insert into hole 2 and pull directly to 3, there are 2 wires respectively at the leading and trailing edge. Pis note the wiring of the left and right wing are same way.
