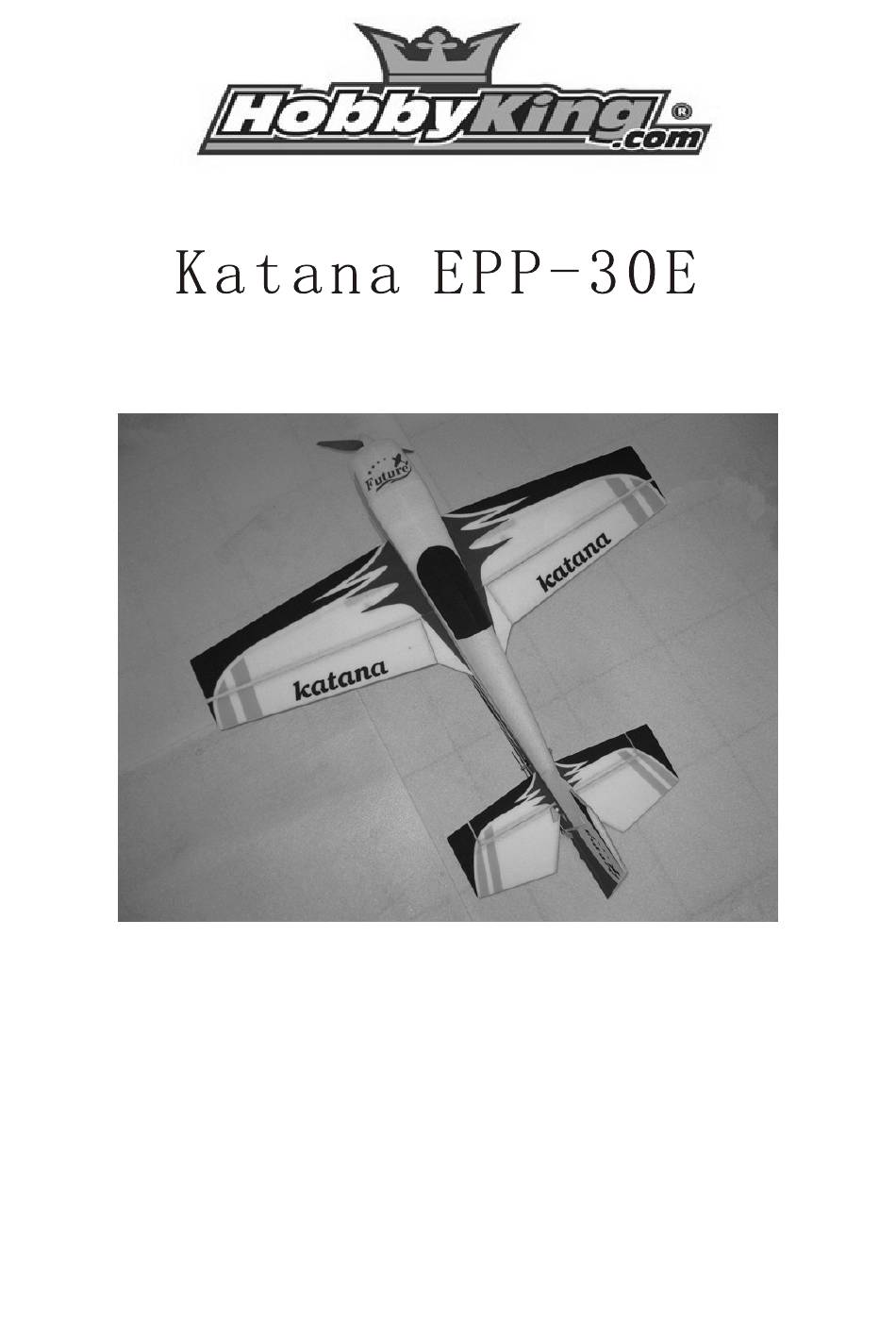

- Page 1 Instructions Manual Many thanks to choosing our 3D stunt plane. We hope you have many hours of enjoyment flying it..
- Page 2 While opening the package, please check whether all the components are complete. If anything is missing, please contact the dealer immediately. Specifications: Wingspan Fuselage length Wing area Takeoff weight Center of gravity: 108mm back from the leading edge next to the fuselage Recommended control throws: Ailerons: 3D flying 40 degrees/Normal flying 25 degrees.
- Page 3 Install the elevator servo in the Installation of the motor mount. Slot the motor mount into the slots direction shown above. Screw into of the fuselage, Glue in place with place with 2 x PK screws. medium CA adhesive. As shown above place the steel wire Screw into place the undercarriage securing plate.
- Page 4 Install the aileron servo mount Insert the wings either side of the fuselage and feed the ailerons and servo as shown in the picture above. servo leads through into the receiver compartment. Please ensure the wing peg is As shown in the picture, tension located properly for safety.
- Page 5 As shown above ensure the Also ensure that the tailplane tailplane is perfectly centered and is parallel with the wing and square to the wing and fuselage. When vertically inline with the fuselage. measured as above both measurements should be the same. Glue the tailplane into place As shown in the picture install using medium CA or appropriate...
- Page 6 Install the motor speed Trim out the EPP foam from controller in the position shown. the motor cowling. Fit the cowling as shown, slot Fit the propeller and spinner the ply locaters into the fuselage and as shown, ( a propeller must be ensure it is firmly pushed home.
- Page 7 Connect the ESC and the servo's to the Next install the aileron push receiver and check that everything is rods as shown. working properly and that the controls work it the correct direction. As shown in the picture install Components for the carbon the wheel covers over the wheels, landing gear.
