Marmitek Invisible Control 6 XTRA SMART User Manual page 9

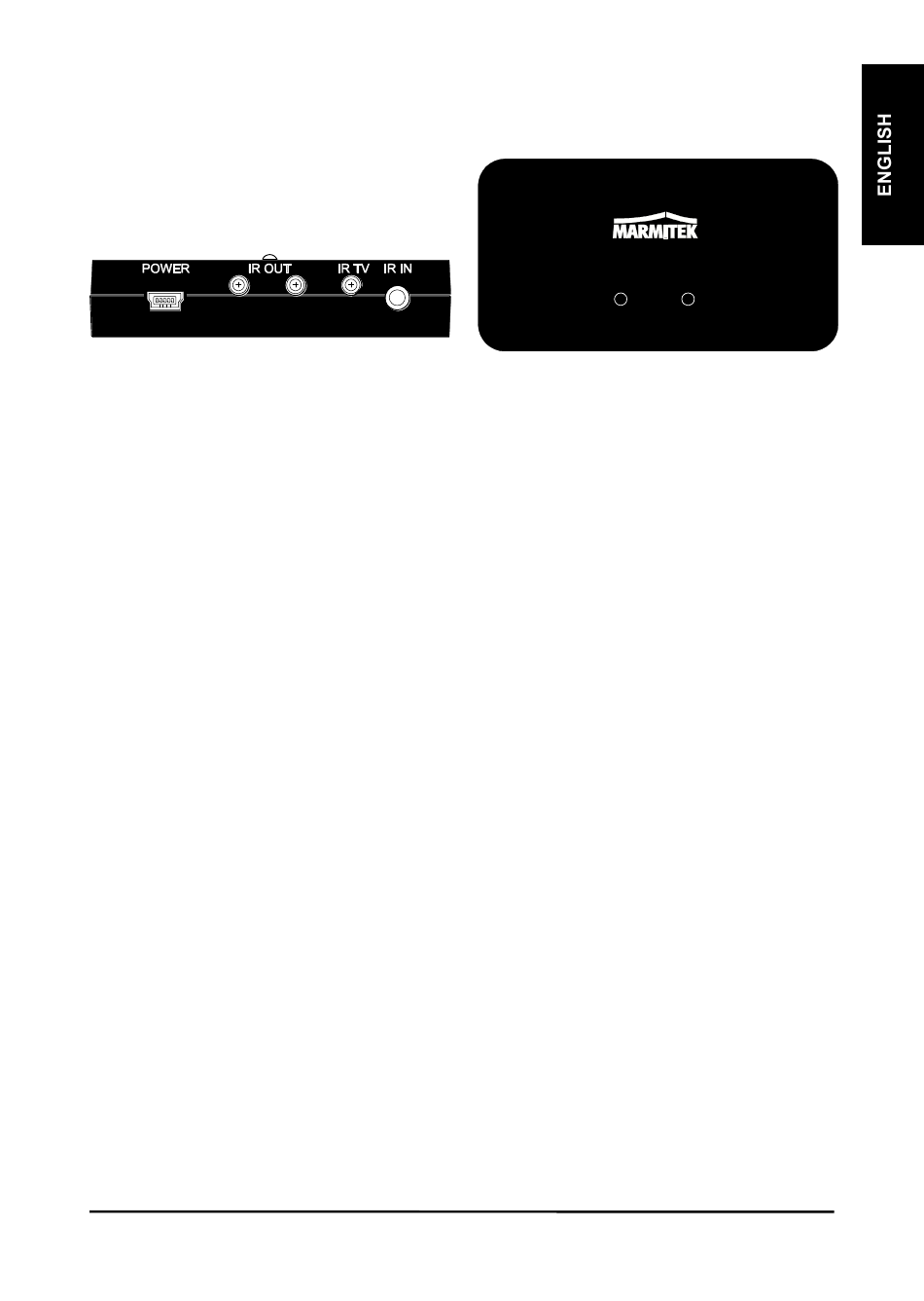

4.4 Connecting the IR Smart module
1. Connect the installed IR extension cables with two Blaster
LEDs to the IR Smart Module's 'IR OUT' jack.
2. Connect the installed IR extension cables with one Blaster
LED to the IR Smart Module's 'IR TV' jack.
3. Connect the installed IR Receiver cable to the 'IR IN'
connection on the IR Module:
4. Connect the USB Power adapter to the 'POWER' connection
on the IR Module and plug this into an electrical socket.
5. If the Invisible Control 6 XTRA |
correctly, the red light on the IR Smart module will flash when
a button on the (infrared) remote control is pressed while
pointing the remote to the IR receiver.
6. Close the doors of your (TV) cabinet to ensure that the A/V
equipment cannot receive an infrared command directly from
the remote control as this can lead to operational problems.
7. You can now operate the A/V equipment via the Invisible
Control 6 XTRA |
Invisible Control 6 XTRA |
SMART
™ through closed cupboard doors!
SMART
™
SMART
™ is connected
9
