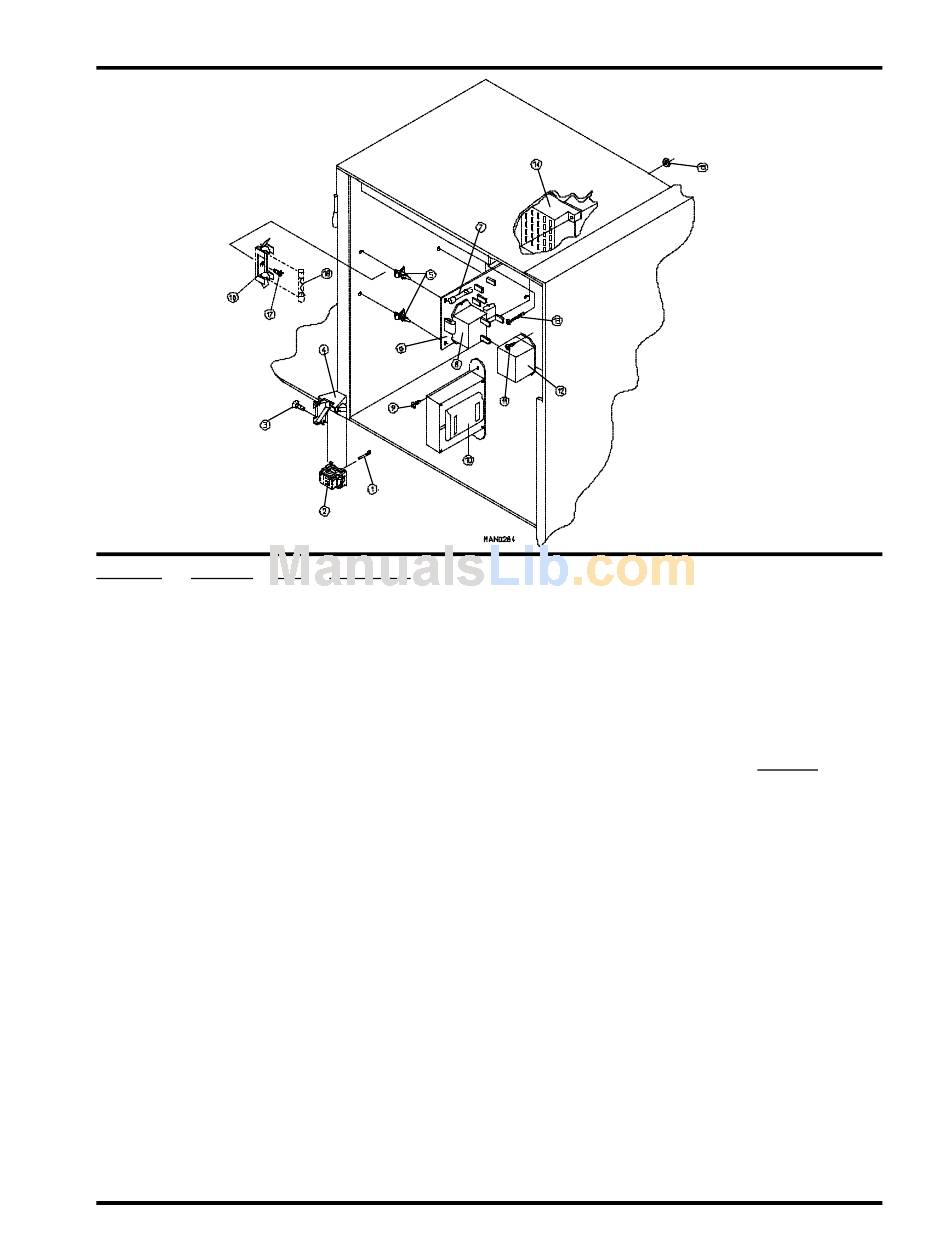

Phase 4 OPL Non-Reversing Microprocessor Control Box Assembly

Illus. No. Part No. Qty.
1 137021
2 137020
122800
3 150315
4 137022
5 137013
6 ---------
137061
7 136052 1 or 2 4-Amp Fuse ONLY
8 131916
131930
9 150300
10 141403
11 150309
12 131030
131031
13 150002
14 120715
15 151000
16 136008
17 150301
18 136057
* As required.
Telephone: (508) 678-9000
Description
12 Microprocessor Socket ONLY
1 15-Pin Microprocessor Connector ONLY
1 Microprocessor (female) Pin Extraction Tool
1 #6 x 3/8" Phillips Pan Head "B" Screw
1 15-Pin Strain Relief ONLY
4 Nylon Standoff
1 Arc Suppressor (A.S.) Relay Board
(refer to Arc Suppressor [A.S.] Relay Board Listing on page 55)
1 Arc Suppressor (A.S.) Board ONLY (without relay)
1 P.C.B. (electromechanical) Relay ONLY - 120 Volt
1 P.C.B. (electromechanical) Relay ONLY - 208/230 Volt
2 #10-16 x 1/2" Hex Washer TEK Screw
1 Direct Spark Ignition (DSI) 24 VAC Transformer
(for use on gas models with Direct Spark Ignition [DSI] Only)
2 #10-16 x 1/2" Hex Head TEK Crimptite Screw
1 Steam Valve Relay - 120 Volt
(for high pressure steam models Only)
1 Steam Valve Relay - 208/230 Volt
(for high pressure steam models Only)
2 #6-32 x 1" Phillips Round Head Machine Screw
1 30-Position Terminal Block
2 #6-32 Pal Nut
* Fuse Block/Strip ONLY
* #8 x 7/16" Self Drilling Screw
* 1/2-Amp (slo blo) Fuse ONLY
