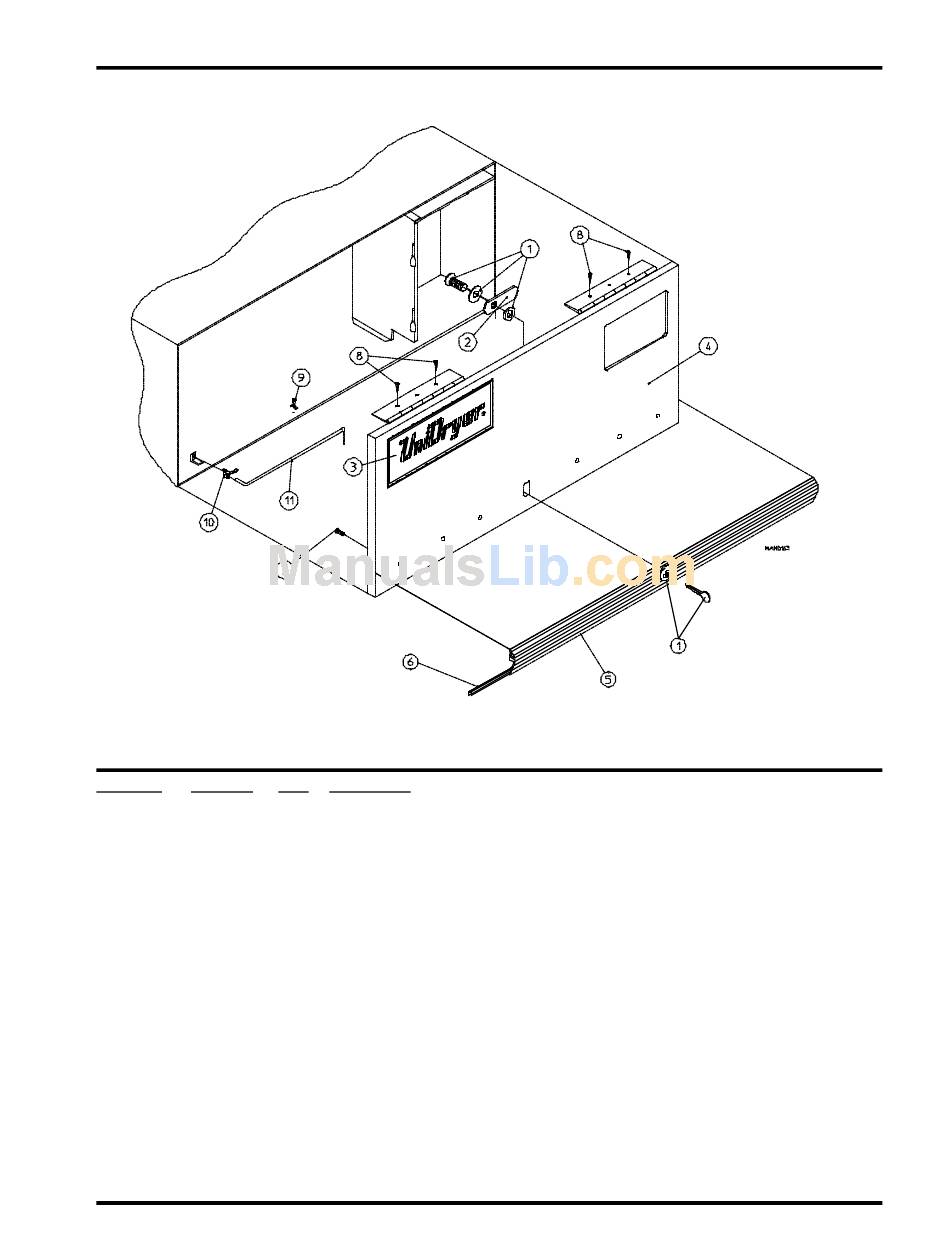

High Security Control Door Assembly

Illus. No. Part No.
1 160017
2 160016
3 112312
112337
870011
4 800021*
800142
5 180202
6 102307
7 150201
8 150309
9 102600
10 102601
11 102502
* Specify color when ordering.
Telephone: (508) 678-9000
Qty. Description
1 Special Dummy Lock ONLY
1 Lock Cam ONLY
®
1 UniDryer Logo ONLY
®
1 UniSport Logo ONLY
1 Logo Double Tape Kit
1 High Security Control Door Assembly Less Lock
(includes illus. nos. 4 through 7)
1 High Security Stainless Steel Control Door Assembly Less Lock
(includes illus. nos. 4 through 7)
1 Top Trim Strip with Lock Hole
3 Trim Bumper Gasket (sold by the foot)
6 #10-32 x 1/4" Phillips Round Head Machine Screw
4 #10-16 x 1/2" Hex Head TEK Crimptite Screw
1 Control Door Rod Support Catch
1 Control Door Rod Retainer Clip
1 Control Door Support Rod
