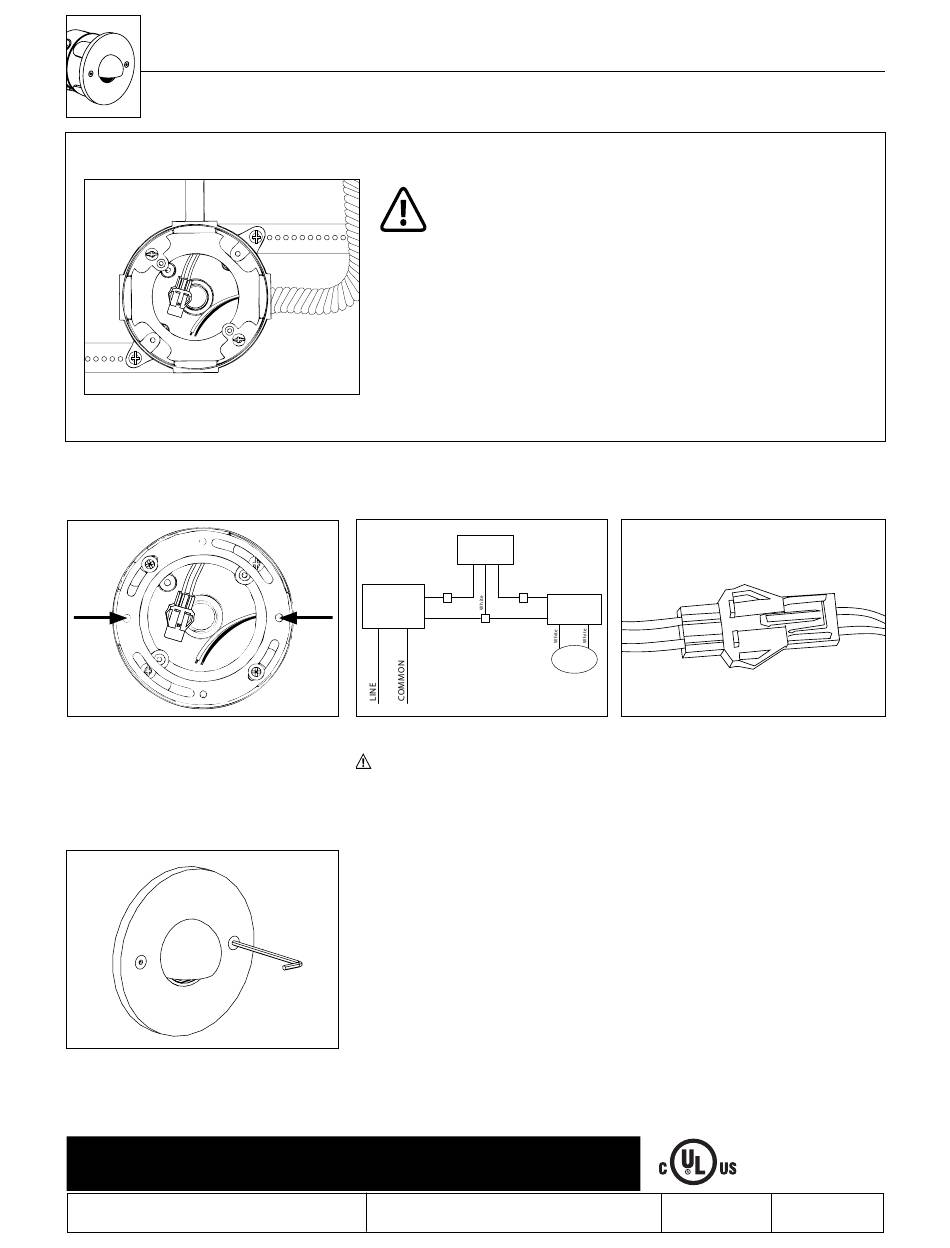

Installation Instructions
Phase 1 - Rough In
Installation of Back box
1. Install Conduit (By Others) to be used with
this product.
Phase 2 - Finish Installation of Fixture with Remote Transformer
1. Remove #10-24 Phillips screws from mounted back
box. Install universal mounting ring (supplied with
faceplate) using #10-24 screws onto back box.
Align faceplate mounting holes to final mounting
position.
5. Mount faceplate using two (2) #10-24 screws with
1/8" Allen wrench. Tighten to compress gasket. Do
not over tighten.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
Low Voltage Halogen - Thermal Protector
Additional Info
• Please follow National and Local electrical codes for your area.
• 4" round cast box
• Suitable for through wire.
• Suitable for installation into combustible materials.
• Rated for 90° C.
2. Install junction box so that front face is flush
with finished wall or ceiling.
THERMAL
PROTECTOR
Yellow
Red Black White
REMOTE
TRANSFORMER
Red White
WIRING DIAGRAM
Low Voltage - For use with 12VAC remote
transformer.
2. Make watertight connections from remote
transformer to thermal protector using
waterproof wire connectors. (By Others) See
wiring diagram.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
3. Connect box to conduit and pull wires for
connections (See Wiring diagram).
QUICK
DISCONNECT
LAMP
3. Connect quick disconnect from thermal protector
to lamp leads.
4. Re-insert socket assembly into faceplate.
RELEASED
7-13-16
BACK BOX
REFERENCE NUMBER
INS-1496-TP
