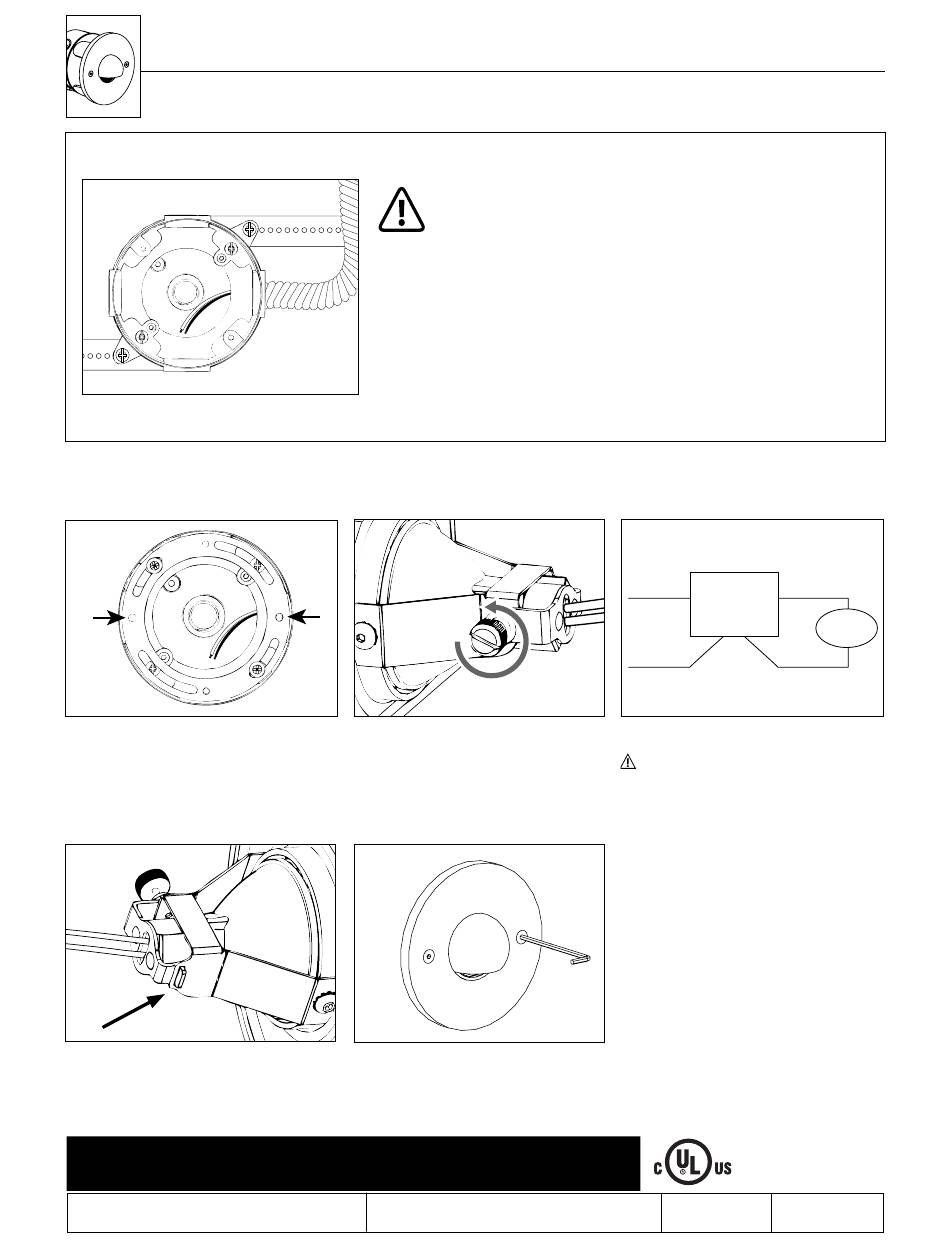

B-K lighting BACK BOX Installation Instructions Manual page 4

Installation Instructions
Phase 1 - Rough In
Installation of Back box
1. Install Conduit (By Others) to be used with
this product.
Phase 2 - Finish Installation of Fixture with Remote Transformer
1. Remove #10-24 Phillips screws from mounted
back box. Install universal mounting ring (supplied
with faceplate) using #10-24 screws onto back box.
Align faceplate mounting holes to final mounting
position.
4. Insert tab from socket into notch on adjustable
lamp bracket, then tighten thumbscrew.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
Low Voltage Halogen - Adjustable Bracket
Additional Info
• Please follow National and Local electrical codes for your area.
• 4" round cast box
• Suitable for through wire.
• Suitable for installation into combustible materials.
• Rated for 90° C.
2. Install junction box so that front face is flush
with finished wall or ceiling.
2. To install lamp (if needed), remove socket
assembly from faceplate housing by loosening
thumbscrew. Do not exceed wattage on label.
5. Mount faceplate using two (2) #10-24 screws
with 1/8" Allen wrench. Tighten to compress
gasket. Do not over tighten.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
BACK BOX
3. Connect box to conduit and pull wires for
connections (See Wiring diagram).
LINE 12V
Remote
Transformer
COM COM
WIRING DIAGRAM
Low Voltage - For use with 12VAC remote
transformer.
3. Make watertight connections from remote
transformer to lamp leads using waterproof wire
connectors. (By Others) See wiring diagram.
RELEASED REFERENCE NUMBER
7-13-16 INS-1496-AJ
Fixture
