H3C SR6604-X Installation, Quick Start

H3C SR6604-X/SR6608-X/SR6616-X Routers Installation Quick Start-6PW108
H3C SR6604-X/SR6608-X/SR6616-X

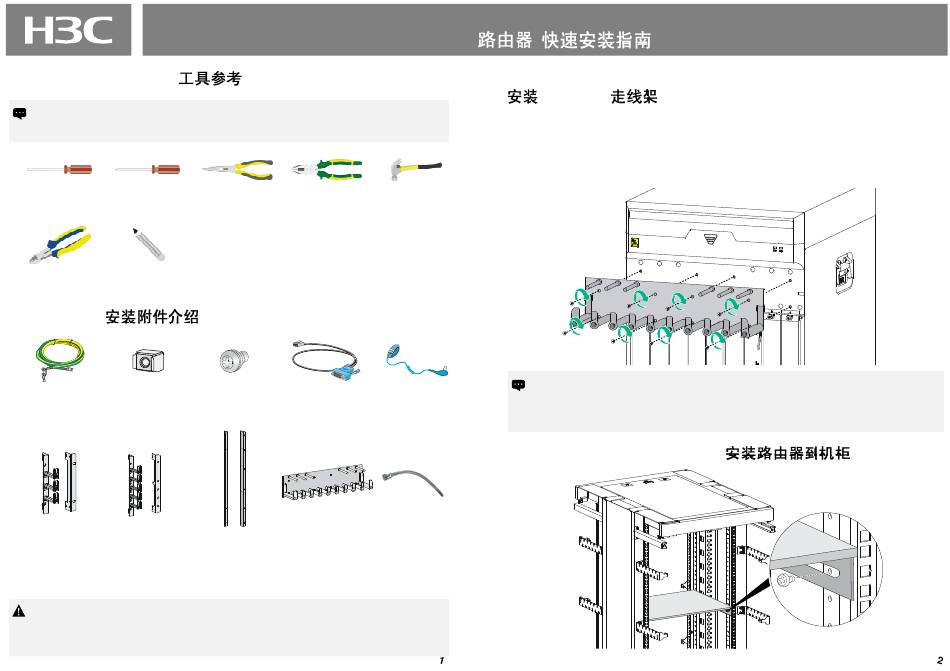

Tools and equipments
The installation tools are not provided with the router. Prepare them yourself.
路由器不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
Flathead screwdriver Phillips screwdriver
一字螺丝刀 十字螺丝刀
Hiagonal pliers Marker
斜口钳 记号笔
Accessories
Grounding cable Cage nut
(provided) (provided)
地线(标配) 浮动螺母(标配)
Mounting bracket Mounting bracket
for SR6604-X for SR6608-X
(provided)
(provided)
SR6604-X挂耳 SR6608-X挂耳
(标配) (标配)
!
Wear an ESD wrist strap, and make sure the wrist strap has a good skin contact and is
reliably grounded. 操作者需佩戴防静电腕带，确保防静电腕带与皮肤良好接触，并确认
防静电腕带已经良好接地。
Needle-nose pliers Wire-stripping pliers
尖嘴钳 剥线钳
M6 screw
Console cable
(provided) (provided)
M6 螺钉(标配) 配置口电缆(标配)
Mounting bracket for Cable management
bracket for SR6616-
SR6616-X
(provided) X (provided)
SR6616-X挂耳(标配) SR6616-X走线架
(标配)

Installing a cable management bracket

SR6616-X
You need to install a cable management bracket for an SR6616-X router. For the SR6604-
X and SR6608-X, the cable management bracket is attached to the mounting brackets on
the routers. SR6616-X路由器需要单独安装走线架；对于SR6604-X/SR6608-X路由器，走
线架集成在挂耳上，无需单独安装。
Claw hammer
羊角锤
The procedures for installing an SR6604-X, SR6608-X, and SR6616-X router are
ESD wrist strap
(provided)
similar. The following uses an SR6608-X as an example.
防静电腕带(标配)
安装路由器的过程类似，下文均以SR6608-X路由器为例进行说明。

Installing the router in a rack

Removable
cable tie (user
supplied)
可拆卸式扎带
(用户自备)
-6PW108
Install a rack shelf in the rack.
安装托盘到机柜
BOM: 3104A0C2
