Summary of Contents for Cayin CDT-17A

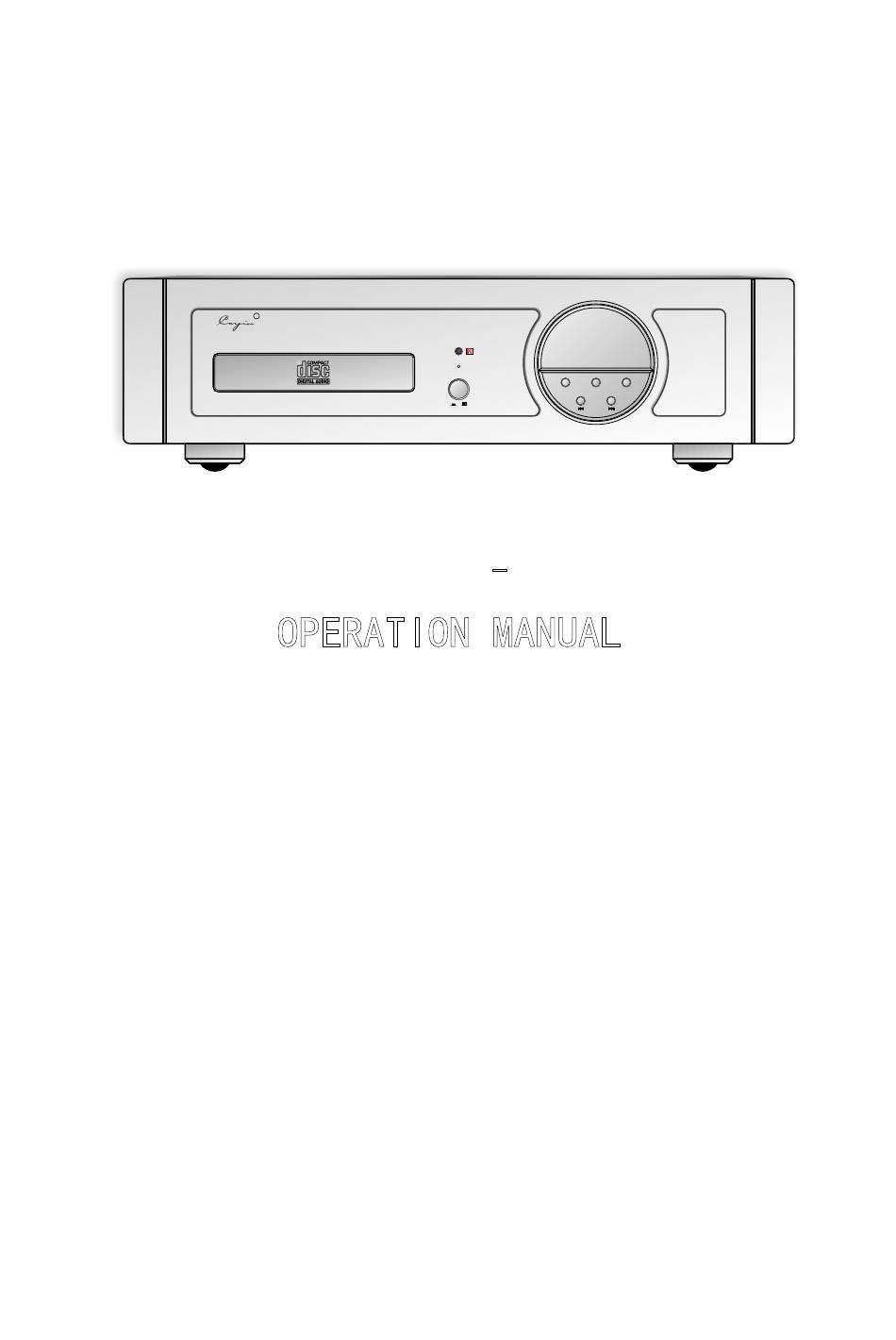

- Page 1 VACUUM TUBE COMPACT DISC PLAYER CDT-17A POWER OPEN CLOSE STOP PLAY PAUSE SKIP Cayin CDT 17A Cayin CDT 17A SPARK ELECTRONIC EQUIPMENT CO LTD SPARK ELECTRONIC EQUIPMENT CO LTD...
-
Page 2: Opening The Package
Cayin CDT-17A compact disc player. Used properly and carefully, it should give you many years of outstanding musical reproduction. Please read this operation manual carefully before using it. SPECIFICATIONS Output level 2.3V 0.5dB Frequency response 20Hz~20kHz 0.5dB... -
Page 3: Connection Diagram
1. Before connecting, make sure the power mark on the real panel is same to the power voltage of your area. 2. Be sure the Power Switch on the front panel of the CDT-17A is tuned off (in the position). -
Page 4: Cautions For Safety
CDT-17A to the left channel source input on the amplifier, and then, connect the right channel output of the CDT-17A to the right channel source input on the amplifier. 2. nalog Outputs balance . -
Page 5: Cleaning & Care
Do not place anything heavy on the unit. When the unit is moved: Be careful not to drop the unit or subject it to strong shocks. Make sure that the unit is disconnected from all connection cord. For a distant transport, wrap it in the original package to prevent it from scratch. -
Page 6: Turning On/Off The Unit
Do not place any obstacles between the Remote Control Unit and the Remote Sensor. Do not expose the Remote Sensor to strong light. OPERATION Turning on/off the unit Press the Power Switch (POWER) on the front panel, the unit will firstly execute closing disc tray, the display will show Reading TOC , and the unit will do... - Page 7 For example, to select track 2, press the 2 Button. To select track 12, press the 1 Button and the 2 Button in 2 seconds. After you pressing the 1 Button, CDT-17A will wait for the second number for 2 seconds. If the second number is not entered in 2 seconds, the first track will be played.
- Page 8 This function allows you to memorize some tracks on the current disc for playback in a specific order. 1.Insert a disc, the CDT-17A will read the contents of the disc, or stop playback of the current disc. 2.Press the PROG button followed by the track numbers in a specific order, the display will show Program Tack and 00 ->...
- Page 9 The warranty doesn't extend to any product that has been opened by you without permission of our company. VII NOTICE The information in this manual is subject to change without notice. VIII DIAGRAM VACUUM TUBE COMPACT DISC PLAYER CDT-17A POWER OPEN CLOSE STOP PLAY PAUSE SKIP Diagram 1.
- Page 10 ANALOG OUTPUT DIGITAL OUTPUT SPARK ELECTRONIC EQUIPMENT CO., LTD. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Diagram 2. Cayin CDT-17A rear panel L analog output R analog output L balance analog output R balance analog output Digital output (Coaxial) Digital AES EBU output Serial No.
-
Page 11: Troubleshooting
TROUBLESHOOTING If you have checked everything and the unit is still not working please contact your dealer. Remedy Problem Cause Power indicator light does No power at the receptacle. Check and reset or replace not come on when power Test by plugging in a light the appropriate breakers switch is toggled on.
