Summary of Contents for Cayin m-50CD

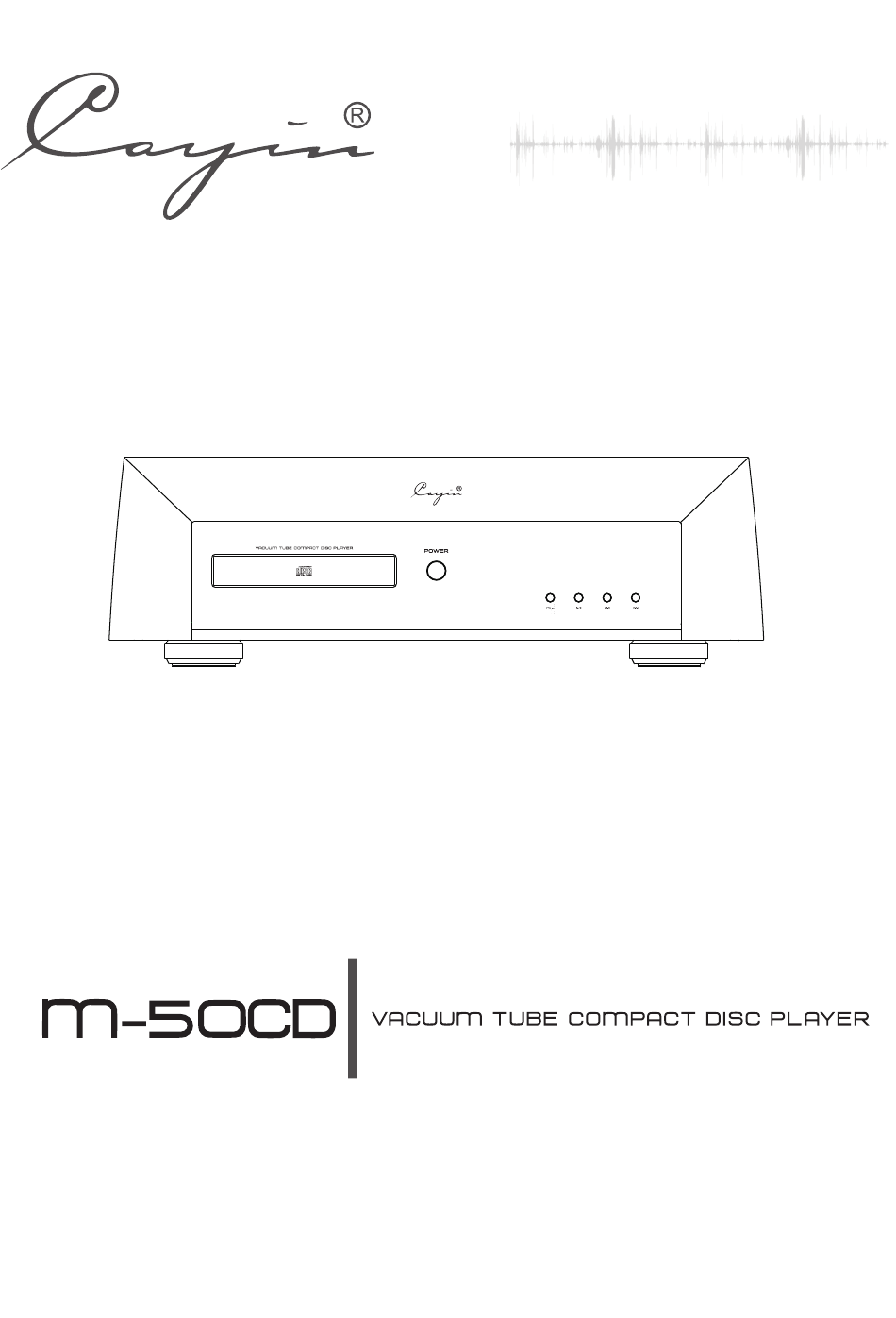

- Page 1 User's Manual...
-
Page 2: Table Of Contents

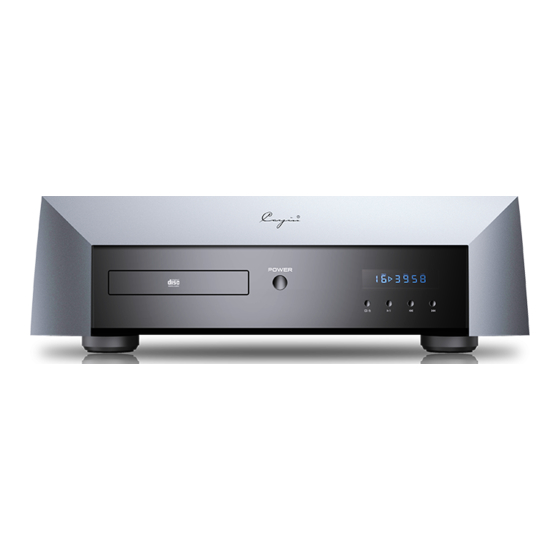

Cayin M-50CD compact disc player. Used properly and carefully, it should give you many years of outstanding musical reproduction. Please read this operation manual carefully before using it. Table of Contents ……………………………………………………………………………………………… ………… Table of Contents …... -
Page 3: Specifications
Please check the carton carefully whether there is any damage before you open it. Put it on a flat surface with the arrow upward. Rip away the tape and open the carton, then you'll find: ① One set of Cayin M-50CD compact disc player ② SP-13F remote control unit ③ One warranty card ④... -
Page 4: Connection Diagram
Connection Diagram Note: You need wait for about 30 seconds after turning on the power every time because the vacuum tubes need preheat. To the digital input terminal of a D/A converter or digital amplifier... - Page 5 Connection Diagram Please make sure the following preparations are well done before using: ■ AC Power 1. Before connecting, make sure the power mark on the real panel is the same to the power voltage of your area. 2. Be sure the Power Switch on the front panel of the CD Player is tuned off (in the “...
-
Page 6: Warranty Service
Connection Diagram 3-2.The CD Player's coaxial digital output jack supplies an unprocessed digital signal. Using a standard 75 ohm coaxial digital cable, connect the CD Player's coaxial output to the coaxial digital input connector on the outboard D/A decoder. 3-3.Connect the analog output jacks of the D/A decoder to the source input jacks of an amplifier. -
Page 7: Precautions
Precautions Cautions for Safety Follow these cautions to avoid malfunction or serious damage to the unit. ■ Disconnect the Power Cord from the AC outlet by pulling the plug, not the cord. ■ Keep the Power Cord away from heating appliances. ■... - Page 8 Precautions Maintenance ■ Wipe the body and front panel of the unit with a soft, clean cloth. If you use a chemically treated cloth for cleaning, refer to its notes on use. ● For persistent stains, use a soft cloth moistened with mild detergent and water, ●...
-
Page 9: Operation
Operation Turning on/off the unit Press the Power Switch (POWER) on the front panel, the unit will firstly execute “-- ----” closing disc tray, the display will show , and the unit will do selfcheck. Playback 1.Press the Button on the front panel or the Button on the Remote Control Unit, the Disc Tray slides out. - Page 10 Operation Track Search During playback or in STOP mode, you can select a track to play using the Skip ) Buttons or the Number Buttons (Remote only). ■ Using the Skip Buttons Press the Button to advance the beginning of the next track. If the current ●...
- Page 11 Operation Section Repeat (Remote only) This function allows you to repeat a specified section. You can select the start point and the end point of a section in the current track and repeat it continuously. 1.During playback, press the A-B Button at the start point of the section to be repeated.
- Page 12 Operation Scan (Remote only) Press SCAN button, the display “SCAN” will flicker, the CD Player will play ten seconds of every track from No.1 track. Time (Remote only) Changes the modes of time displayed. The first mode is the amount of elapsed time played in the current track.The second mode is how much time is left on the current track.
-
Page 13: Front Panel
Front Panel ① Disc tray ② Power switch ③ Power indicator ④ Remote sensor window ⑤ Open/Close button ⑥ Play/Pause button ⑦ Skip(reverse) button ⑧ Skip(forward) button ⑨ Display... -
Page 14: Rear Panel
Rear Panel ① R analog output ② L analog output ③ R balance analog output ④ L balance analog output ⑤ Digital AES/EBU output ⑥ Digital output (Coaxial) ⑦ Digital output (Optical) ⑧ Serial No. ⑨ Fuse socket ⑩ Power socket... -
Page 15: Remote Control
Remote Control ① “ ” Open/Close the disc tray ② “ ” SCAN : Track scan button ③ “ ” STOP : Stop play button ④ “ ”,“ ”,“ ”,“3” “ ” : Number button ⑤ “ ” : Play/Pause button ⑥... -
Page 16: Troubleshooting
Troubleshooting If you have checked everything and the unit is still not working please contact your dealer. Remedy Problem Cause Power indicator light does No power at the receptacle. Check and reset or replace not come on when power Test by plugging in a light the appropriate breakers switch is toggled on.
