T

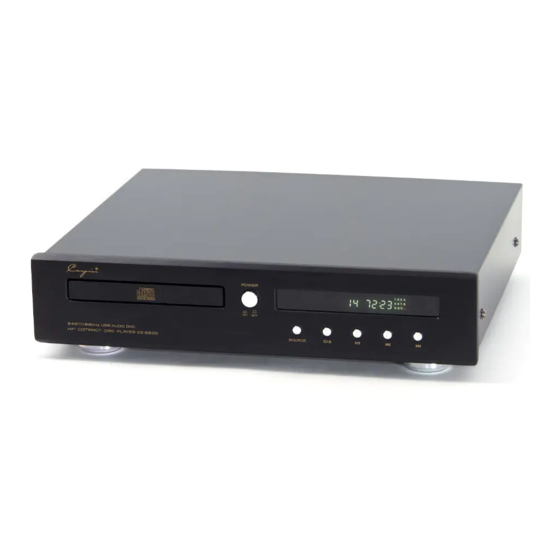

hank you for purchasing the Cayin CS-55CD compact disc player.
Used properly and carefully, it should give you many years of outstanding musical
reproduction. Please read this user manual carefully before using it.
Ⅰ SPECIFICATIONS
CD PLAYER:
Output level:
Frequency response:
Distortion and noise:
S/N ratio:
Dynamic range:
Digital output characteristics:
USB Audio:
Compatible with Audio Class 1.0 and Audio Class 2.0
Word Length:
Sampling Frequency Rates:
Operating system:
Power requirements:
Weight:
Dimension:
Power consumption:
Ⅱ
OPENING THE PACKAGE
Please check the carton carefully whether there are any damages before you open it.
Put it on a flat surface with the arrow upward. Rip away the sealed tape and open the
carton, then you'll find:
1. One set of CS-55CD cd player
2. SP-13G remote control unit
3. Two fuses
4. One power cord
5. One user manual
6. One USB cable
7. One driver software CD
2.0V±1.5dB
20Hz~20kHz ±0.5dB
≤-60dB
≥90dB
≥90dB
According to the IEC958 standard
16 - 24 bit
44.1, 48, 88.2, 96, 176.4 and 192kHz
Windows XP®，Windows Vista®，Windows 7®
Windows 8® and Mac OS(10.6.3 and above)
230VAC, 50/60Hz
6kg
360×325×90mm (W×D×H)
20W
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-55CD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cayin CS-55CD

Summary of Contents for Cayin CS-55CD

  • Page 1 Cayin CS-55CD compact disc player. Used properly and carefully, it should give you many years of outstanding musical reproduction. Please read this user manual carefully before using it. Ⅰ SPECIFICATIONS CD PLAYER: Output level: 2.0V±1.5dB 20Hz~20kHz ±0.5dB...

  • Page 2: Front Panel

    Ⅲ FRONT PANEL ① Disc tray ② Power switch ③ VFD display ④ Source button ⑤ Open/Stop button ⑥ Play/Pause button ⑦ Skip (reverse) button ⑧ Skip (forward) button ⑨ Remote sensor window Ⅳ REAR PANEL ① Analog output (Right channel) ②...

  • Page 3: Connection Diagram

    Ⅴ CONNECTION DIAGRAM Left speakers Right speakers 1. Connect to computer Connect the USB port to the computer’s USB port with the USB cable which must be according to the USB2.0 specification. Only the USB port in the rear panel can be used for desktop computer.

  • Page 4: Remote Control Unit

    ⑬ “A-B”: Section repeat button ⑭ “REPEAT”: Repeat button ⑮ “RANDOM”: Random button ⑯ “PROG”: Program button ⑰ Other button: Only for Cayin power amplifier ※REPLACE THE BATTERIES 1. Place the remote control upside up. Screw the rear cover open with the screwdriver.
  • Page 5 Ⅶ INSTALLING USB AUDIO DRIVER SOFTWARE If your computer operation system is Windows, you should install driver to get the function of USB audio before using it. 1. Connect the computer to the unit with USB cable. ”to run the driver installer，As below: 2.
  • Page 6 4. Follow the steps of the installation interface to continue，As below: 5. After finish installing driver, click the “Start” →“Program” →“Thesycon” → “TUSBAudio Driver for XMOS Kits”, then click “TUSBAudio Control Panel” to open the USB Audio card driver control panel, connect the unit to computer with USB cable, then the USB Audio driver control panel will show some information，...

  • Page 7: Operation

    Ⅷ OPERATION Turning ON/OFF Press the power switch (POWER) on the front panel, if the unit is CD state, the unit will firstly execute closing storehouse, the display will show CLOSE, and the unit will do self-check. Press the power switch (POWER) again the unit will turn off. Select CD mode ①...
  • Page 8 ⑤ Track search During playback or in stop mode, you can select a track to play using the skip ( or ) buttons or the numeric keys (remote only).  Using the skip buttons 1) Press the “” button advances to the beginning of the next track. If the current track is the last track, press this button advances to the beginning of the first track.
  • Page 9 entire disc continuously. 1) During playback, press the “REPEAT” button once to repeat the current track, the display will show “ ”. 2) Press the “REPEAT” button again to repeat the entire disc, the display will show “ ”ALL. 3) Press the “REPEAT” button a third time to cancel the repeat function. ...

  • Page 10: Select Usb Audio Mode

    ② In no disc state, press the “SOURCE” button on the front panel or press the “SOURCE” button on the remote control unit to select USB, the display will show “USB”, USB input indicator will turn on. ③ Select the USB audio device of the computer as CS-55CD Output, and keep it in working state.
