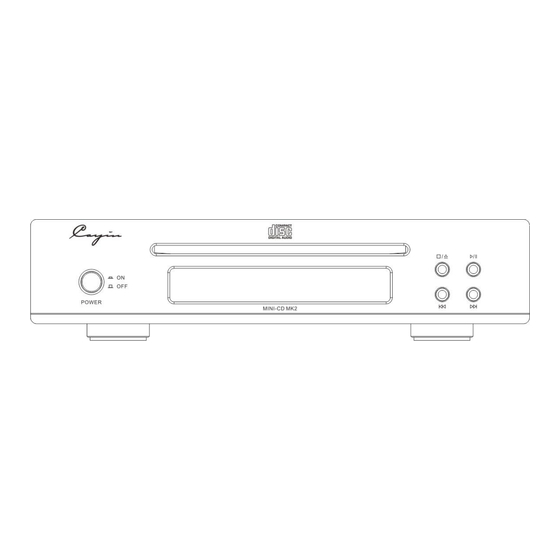

MINI-CD MK2
COMPACT DISC PLAYER
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the MINI-CD MK2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cayin MINI-CD MK2

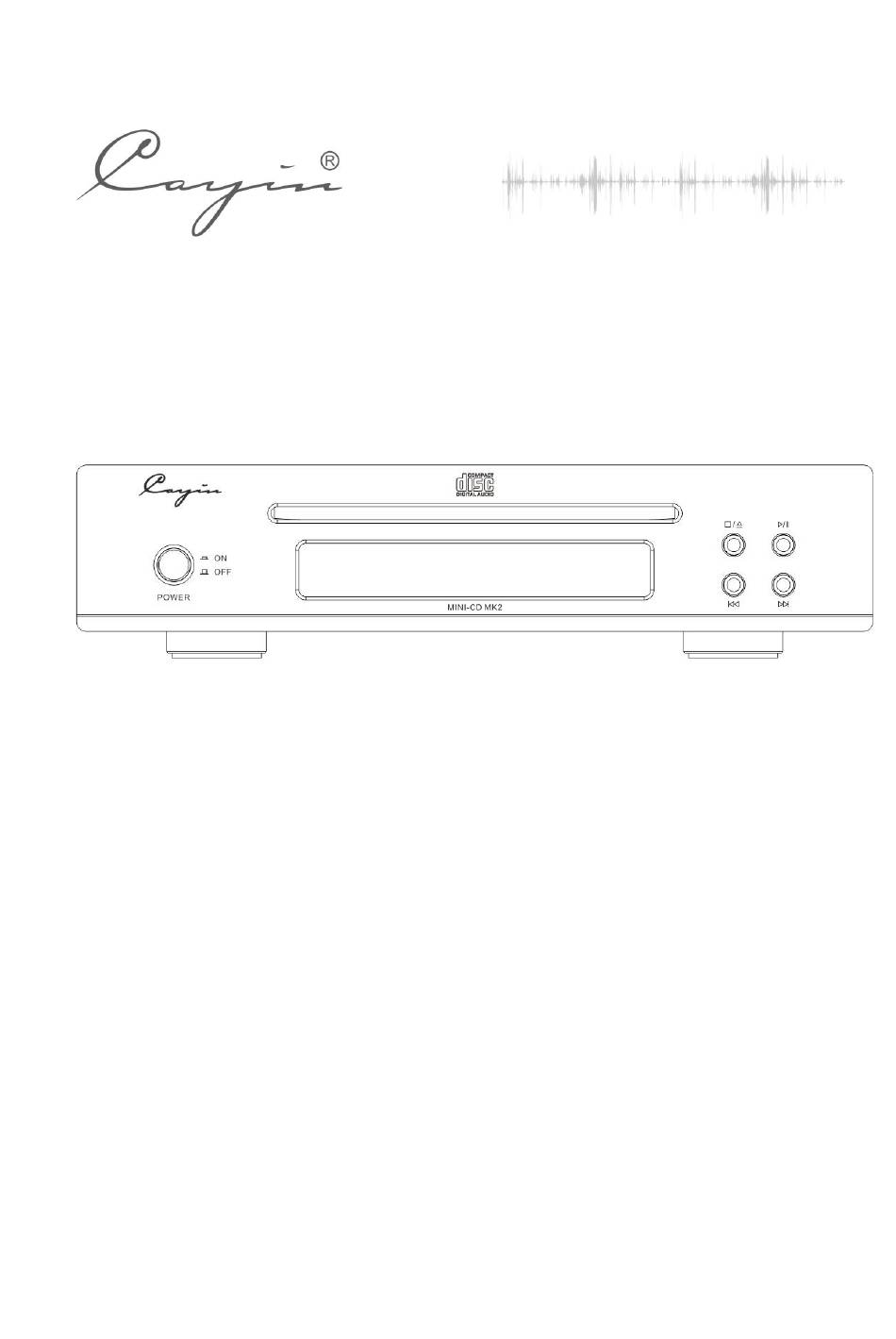

  • Page 1 MINI-CD MK2 COMPACT DISC PLAYER User Manual...
  • Page 2 We sincerely thank you for choosing MINI-CD MK2 Compact Disc Player. We have prepared this user manual to help you understand the features and familiarize with the operation. We recommend all customers read thorough this manual before they start to use the device.
  • Page 3 Specification: Output level: 2.0V.5dB  Frequency response: 20Hz~20kHz (.5dB)  Distortion and noise: ≤0.007% (1kHz)  S/N ratio: ≥90dB (20-20KHz, A-weighted)  Dynamic range: ≥90dB (20-20KHz, A-weighted)  Crosstalk(串音): ≥77dB  Digital output: S/Pdif: RCA coaxial, 0.5Vp-p@75Ω, output impedance 75Ω ...
  • Page 4 Cayin. It is incompatible with custom interfaces of other brands nor standard HDMI interface. The HDMI-A pin definition of MINI-CD MK2 as shown on the right. Serial NO. Please record the serial number on the product warranty card.
  • Page 5 Connect the power adapter to an AC socket, as shown in the figure below. Attention: Only use the original power adapter when you operate the MINI-CD MK2. Cayin will not be responsible for fire hazard or other accidents caused by using other power adapters.
  • Page 6 3. Connect to D/A converter Connect the coaxial digital output terminal to the coaxial digital input terminal of the DAC with a standard 75Ω coaxial digital cable. After D/A conversion, connect it to the power amplifier with an analog audio signal cable, as shown in the figure below. You can also connect the HDMI interface to the HDMI port of the DAC with HDMI cable.
  • Page 7 To power off during playback, please stop the disc first. 2. Playback Place the compact disc in the disc tray label-side up, the MINI-CD MK2 will read the disc and play the first track automatically. 3. Pause During playback, press the “...
  • Page 8 4. Stop During playback or in pause mode, press the “ ” button on the front panel or the “STOP” button on the remote control to stop a disc. The total track and play time will be shown on the display. 5.
  • Page 9 “REP ALL”, then it will show the symbol "r" and play the tracks on the current disc in sequence repeatedly . Press the “REPEAT” button a third time to cancel the repeat function, the display  will show “NORMAL”. Normal playback resumes when the symbol "r" disappears.
  • Page 10 10. Place the MINI-CD MK2 at a flat surface, make sure all four supporting tips are evenly loaded. 11. Do not place any flammable material on the MINI-CD MK2.
  • Page 11 Problem Cause Remedy The power adapter is not Check the power supply connected properly circuit of the power Cannot power on adapter Poor contact of the DC Reconnect the DC plug of plug of the power adapter the power adapter Power is not connected Connect power cord securely...
