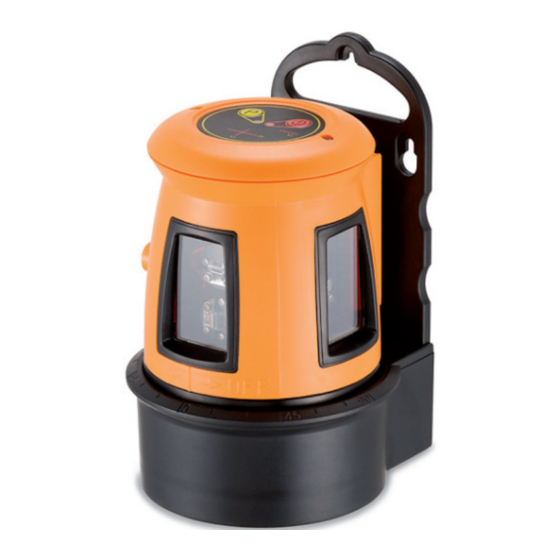

geo-FENNEL FL 40-3Liner User Manual
Fully automatic laser cross level
Hide thumbs
Also See for FL 40-3Liner:
- User manual (9 pages) ,
- User manual (8 pages) ,
- User manual (20 pages)
Related Manuals for geo-FENNEL FL 40-3Liner
Summary of Contents for geo-FENNEL FL 40-3Liner
- Page 1 Manual Utilizare Users‘ manual Linii laser incrucisate - automate Fully Automatic Laser Cross Level FL 40-3Liner...
- Page 2 6) Fereastra emisie laser 6) Laser emitting windows Kit de livrare KIT CONSISTS OF Nivela liniara laser FL 40-3Liner , suport Laser Cross Level FL 40-3Liner , wall/tripod perete/trepied, set baterii, tinta magnetica, mount, set of batteries, magnetic target, ochelari intensificare raza laser, cutie captusita...
-
Page 3: Date Tehnice
DATE TEHNICE TECHNICAL DATA Domeniu autonivelare Self-levelling range parti laterale ± 3,5° side / side ± 3,5° fata/spate ± 3,5° forward/backword ± 3,5° Sistem amortizare Magnet Damping system magnet Precizia ± 3 mm / 10 m Accuracy ± 3 mm / 10 m Domeniu de lucru Working range fara receptor... - Page 4 FL 40-3Liner ver mode. Receiver FR 55-M can now de- (vizibilitatea liniilor laser este mai slabã în tect the signal of FL 40-3Liner (the visibility acest mod). of the laser lines is weaker in this mode).
- Page 5 Verificare precizie Accuracy check Configuraþi instrumentul în mijlocul a douã Set up instrument in the middle of two walls which ziduri care sunt de aproximativ 5 m distanta. are about 5 m apart. Press buttons H and V1. Mark Apãsaþi butoanele H þi V1. Marcati crucea cu visible laser cross on one wall.
- Page 6 Utilizarea preconizatã a instrumentul I ntended use of instrument -Instrumentul emite un laser fascicul vizibil, în vederea The instrument emits a visible laser beam in order efectuãrii urmãtoarele sarcini de masurare (în funcþie to carry out the following measuring tasks (depen- de instrumentul): Transfer de inaltimi, orizontale þi ding on instrument): planuri verticale, unghi drept, transfer puncte.
- Page 7 Laser din clasa 2 etichete de avertizare pe Laser class 2M warning labels on the laser instrument instrument. Acceptabilitate Electromagnetica (EMC) Electromagnetic acceptability (EMC) -Nu poate fi complet exclus cã acest instrument va • It cannot be completely excluded that this instru- deranja alte instrumente (de exemplu, sisteme de ment will disturb other instruments (e.g.
- Page 8 Exceptii privind responsabilitatea Exceptions from responsibility -Utilizatorul acestui produs este de aþteptat sã The user of this product is expected to follow urmeze instrucþiunile date în manualul de the instructions given in operators’ manual. utilizare Deþi toate instrumentele aflate in Although all instruments left our warehouse depozit sunt în stare perfectã...
