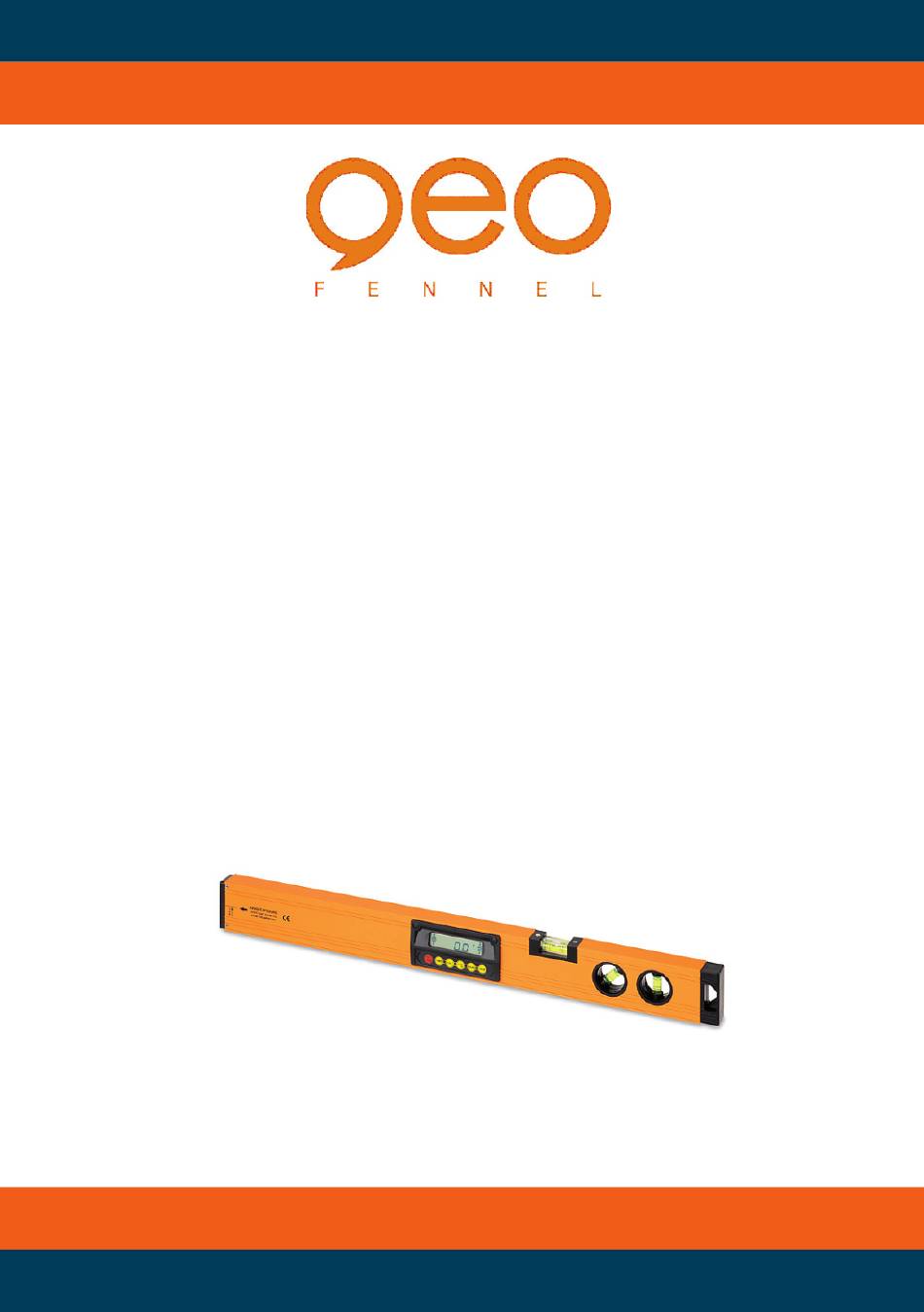

- Page 1 Manual Utilizare Users‘ manual Inclinometru electronic cu laser Electronic Slope Measurer S-Digit 60...
- Page 2 HOLD. Apasand din nou tasta, reveniti HOLD. Press HOLD again to release rea- la masurare. dings. KITUL DE LIVRARE KIT CONSISTS OF Inclinometru digital S-Digit 60, husa captusita, Electronic Slope Measurer S-Digit 60, pad- baterii, manual utilizare. ded bag, batteries, users‘ manual...
- Page 3 FUNCTII FUNCTIONS Pentru masurari inclinari, pante, suprafete Electronic slope measurer, for measuring drepte sau inclinate. inclinations, slopes and plane surfaces DATE TEHNICE TECHNICAL DATA Domeniu 4 x 90° Working range 4 x 90° Rezolutie 0,1 ° / 0,1 % Resolution 0,1 °...
- Page 4 Dacã deviaþia dintre cele douã valori este mai If deviation between the two values is more than mare de 0,2 ° S-Digit 60 trebuie sã fie calibrata. 0,2° S-Digit 60 has to be calibrated. Cum se calibreaza How to calibrate Stabiliti unitatea la o suprafaþã...
- Page 5 Înãlþimea de laser de la bazã este 30.5 mm. Conectarea la un trepied foto Connection to camera tripod Cu 1 / 4 "-filet (la partea de jos) S-Digit 60 With 1/4“-thread (at bottom side) S-Digit 60 poate fi conectat la un trepied aparat foto.
- Page 6 Instructiuni siguranta Safety instructions • Please follow up instructions given in opera- -Vã rugãm sã urmaþi instrucþiunile date pânã tors’ manual. acum in manualul de utilizare . • Do not stare into beam. Laser beam can lead -Utilizaþi instrumentul de mãsurare numai la to eye injury.
- Page 7 Clasa laser 2M etichete de avertizare pe Laser class 2M warning labels on the laser instrumentul cu laser instrument. Acceptabilitate Electromagnetica (EMC) Electromagnetic acceptability (EMC) • It cannot be completely excluded that this -Nu poate fi complet exclus cã acest instrument will disturb other instruments instrument va deranja alte instrumente (de (e.g.
- Page 8 Exceptii privind responsabilitatea Exceptions from responsibility • The user of this product is expected to follow the instructions given in operators’ manual. Although all instruments left our warehouse in perfect condition and adjustment the user is expected to carry out periodic checks of the product’s accuracy and general perfor- mance.
