Advantech ADAM-3656 Startup Manual

ADAM-3656
8-ch Digital Output Module
Caution:
When connecting jumpers or installing the card, you should disconnect the power to prevent surges
damaging sensitive electronic components.

Packing List

Before installation, please make sure that you
have received the following:
• ADAM-3656 Product
• ADAM-3656 Startup Manual
If anything is missing or damaged, contact your
distributor or sales representative immediately.

Overview

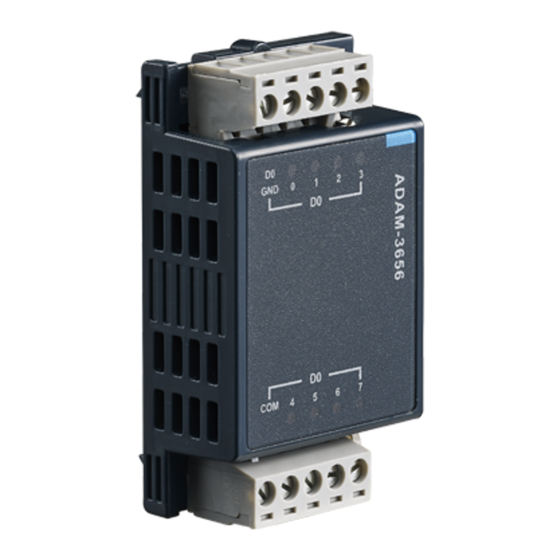

As an ADAM-3600 Extension I/O, ADAM-3656
provides 8-ch sink type isolated digital output.
The digital outputs are open-collector transistor
switches that you can control from the ADAM-
3600 main unit.

Notes

For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com
For technical support and service:
http://www.advantech.com/support/
This startup manual is for ADAM-3656.
Part No: 2003A65600

Specifications

System Functions

• Digital Input Channels: 8
• Digital Output:
• Rated Voltage:
• Rated Current:
• Pulse Output Frequency: 1KHz
• Over Voltage Protection: +40 V
• Isolation Voltage:
• Power Consumption: 1 w
• Operating Temp.:
• Warranty:

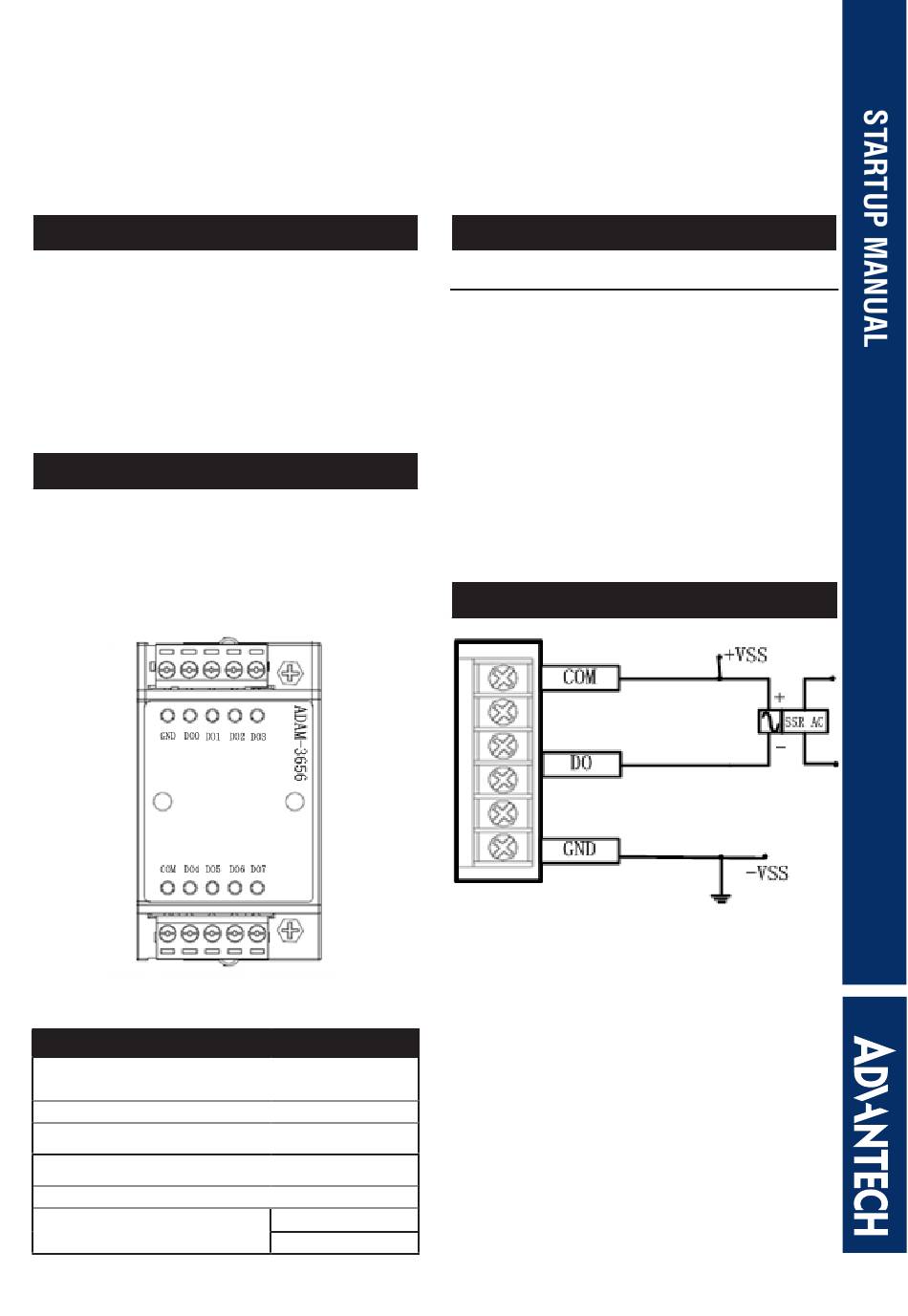

Application Wiring

1st Edition
October 2015
Open Collector
8~30 V
DC
200mA(max.load)/channel
DC
2,000 V
DC
-40 ~ 70°C
2 years
Startup Manual 1
