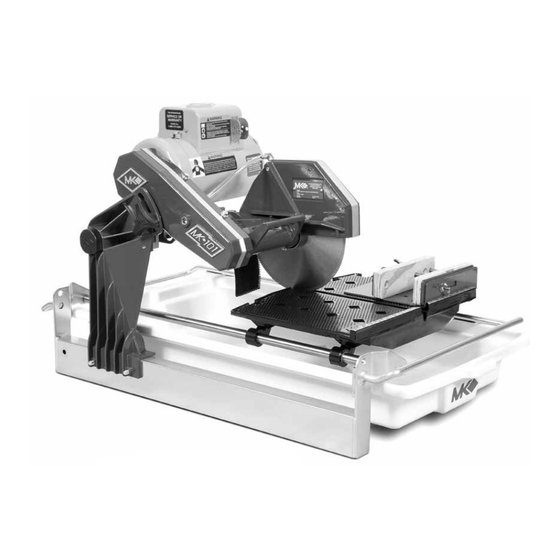

MK Diamond Products MK-101 Alignment Procedure

MK-101 TYPE BLADE ALIGNMENT PROCEDURE
The Movable Cutting Table of the MK-101 may become misaligned with the Cutting Head of the Tile Saw over
time. Should misalignment occur, perform the following steps to realign the Tile Saw.
NOTE: If alignment problems are the result of a warped blade, a bent frame or bent support arm, or, if alignment
is off by more than 1/8-inch, contact the MK Diamond Service Center – (800) 474-5594
Tools Needed:
Combination Square (Square)
12-inch or Greater
Preparation:
Disconnect Saw
(A)
Remove Tile Saw
from Power Source
Inspect
Blade
(D)
Inspect Diamond Blade
for damage
MK-101 Type Blade Alignment
1/2-inch Wrench or
MK Triple Hole Box Wrench
and MK Open End Wrench
Remove Pan
(B)
Remove Water Pan
Turn Counter-
(E)
Loosen front and rear
Guide Bar Retaining Bolts
Revision 12/00, Effective Date: December 04, 2000
Inspect Frame
Inspect Tile Saw
clockwise
to Loosen
Inspect Cutting Head
Inspect Cutting Table
(C)
for damage
Page-1
