  • Page 1: Parts List

    Model MK 1070 Tile Saw Owner’s Manual Parts List & Operating Instructions CAUTION: Read Safety And General Instructions Carefully Before Using Saw For The First Time. For your one (1) year warranty to be effective, complete the warranty card (include the serial number) and mail it in as soon as possible.

  • Page 2: Table Of Contents

    Table of Contents General Safety Instructions pg 2-4 Safety Messages and Symbols Hazard Symbols Damage Prevention Messages Safety Label Locations Saw Features pg 5 Motor Cutting Head Conveyor Table Frame and Tower Water System Unpacking and Preparation pg 6 Initial Assembly pg 7-10 The Cutting Head Installing the Blade...

  • Page 3: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS FOR THE MK-1070 TILE SAW For your safety! These safety precautions should be followed at all times. Failure to follow these safety precautions could result in injury to yourself and others. Safety is a combination of operator common sense and alertness at all times when the saw is being used.

  • Page 4: Hazard Symbols

    Safety Messages A safety message and symbol informs you about potential hazards that could hurt you or others. Each safety message is preceded by one of the three words: Danger, Warning, or Caution. Danger You WILL be KILLED or SERIOUSLY injured if you don’t follow instructions. Warning You CAN be KILLED or SERIOUSLY injured if you don’t follow instructions.

  • Page 5: Damage Prevention Messages

    damage Other important messages that are designed to help prevent damage to your MK Diamond 1070 tile saw, other property, or the environment are prevention preceded by the word “notice.” messages notice Your MK-1070 tile Saw or other property could be damaged if you don’t follow instructions safety Safety labels are located according to the drawing below.

  • Page 6: Saw Features

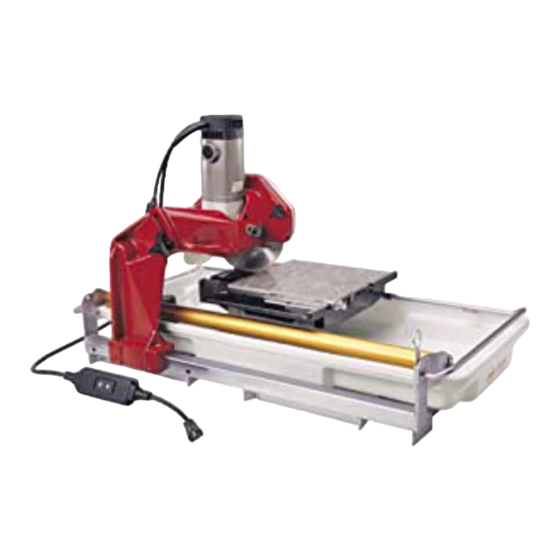

    1070 TILE SAW 10 inch blade capacity, with built-in mitering Saw Features The lightweight portable MK-1070 is a powerful tile cutting machine that features an innovative adjustable cutting head that allows the operator to make precision miter cuts quickly and accurately. The MK-1070 is uniquely designed with the professional in mind to meet all requirements for any cutting application.

  • Page 7: Unpacking And Preparation

    Unpacking, and Carefully open carton. Remove the accessory pack. Lift the saw frame out of the carton by the frame, and place onto a level work surface. The Preparation saw frame may also be placed onto the optional stand (see Stand under Optional Accessories) at this point.

  • Page 8: Initial Assembly

    Initial Assembly Warning For your own safety and protection, do not attempt to operate this saw until it is completely assembled according to the instructions, and until you understand the machines capabilities and the potential hazards associated with it. The Cutting Head The Cutting Head Assembly has been professionally installed and aligned to insure accurate cutting in both the 90°...

  • Page 9: Installing The Water Pump

    installing the Screw the water pump hose adapter onto the water pump. Slide one end of the water hose onto the adapter and place the pump in the water pan water pump cradle. Slide the other end of the water hose onto the fitting at the back of the blade guard.
  • Page 10 In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances.
  • Page 11 Figure 1 Grounding methods metal screw cover of grounded outlet box Position of Tile Saw grounding pin adapter tool power supply cord grounding means To avoid the possibility of the appliance plug or receptacle getting wet, position tile saw to one side of a wall mounted receptacle to prevent water from dripping onto the receptacle or plug.

  • Page 12: Sawing Operations

    Sawing Operations • Match blade specification with the material being cut, following the manufacturer’s recommendation. • Before mounting the blade on the saw, inspect the arbor shaft, flanges and the blade for damage and uneven wear general cutting • Inspect the diamond blade for damage periodically during use for fatigue cracks and segment damage.

  • Page 13: 45° Miter Cutting

    45° Miter Cutting To use the built-in 45° miter feature, raise the cutting head to it’s highest position. Loosen the miter adjustment knob, rotate the motor mount until it rests on the 45° position stop screw, and then retighten the adjustment knob.

  • Page 14: Maintenance

    Maintenance Periodic maintenance of the MK-1070 will insure long life and trouble-free operation. The required maintenance consists of the following: Clean the saw after every use. Clean out the pan with soap and water (see removing the pan). Raise the conveyor table to clean the linear bearing and the guide bar.

  • Page 15: Brush Removal And Replacement

    brush removal and After extended use the need may arise for the brushes to be replaced (when approximately 1/4” of the brush remains). First, using a flat replacement bladed screwdriver, remove the brush cup from the motor cover, by unscrewing the cap screws. Remove the old brush from it’s holder and replace with the new brush.

  • Page 16: Parts Listing

    Parts Listing- MK-1070 Tile Saw MK-1070 Parts List Models Part # description 155882 MK-1070 Tile Saw 120V/17.6A 155885 MK-1070 Tile Saw 240V/7.5A 156182 MK-1070 Tile Saw 240V/7.5A, Australia Item description Part # Assembly, Accessory Pack Carton, Accessory Pack 156178 Foam, Accessory Pack Carton 156179 owner’s Manual, 1070 156172...
  • Page 17 Washer, 5/16 SAE Flat 151754 Assembly, Linear Bearing Casting, Linear Bearing Bearing, Multilube 135855 152227 Screw, 5/16-18 X 1 Hex Head Cap 151743 Washer, 5/16 Split Lock 151747 Washer, 5/16 SAE Flat 151754 Shim, .004 X 5/16 Id X 1/2 od 152519 Assembly, Motor, 120V Motor, 120V/15A...
  • Page 18 Assembly, Roller Wheel 151756 Bracket, Roller Wheel 154021 Wheel, Roller 151799 Screw, 1/4-20 X 1 1/2 Hex Head Cap 151914 Washer, 1/4 SAE Flat 151915 nut, 1/4-20 Hex 151893 Screw, 5/16-18 X 1 Hex Head Cap 151743 Washer, 5/16 Split Lock 151747 Washer, 5/16 SAE Flat 151754...

  • Page 20: Optional Accessories

    All repair and replacement will be performed at MK Diamond Products, Torrance, California, or at a service facility designated by MK Diamond. The warranty of defective materials or workmanship is limited to such part or parts as inspection shall disclose to have been defective.
  • Page 21 Exclusions MK does not warrant the following components, which carry their own manufacturer’s warranty for the indicated periods: • Gasoline Engines (Manufacturer’s Warranty Period) description Length of Warranty Kohler 2 years Wisconsin Robin 2 years Honda 2 years Briggs & Stratton 2 years •...

  • Page 22: How To Order Repair Parts

    Model MK 1070 Owner’s Manual Parts List & Operating Instructions HOW TO ORDER REPAIR PARTS please have the following information ready before calling: SERIAL NUMBER OF YOUR SAW MODEL NUMBER OF SAW WHERE PURCHASED AND WHEN PART NUMBER PART DESCRIPTION all parts listed may be ordered from your local distributor or from mk diamond.
