Printed Matter No.9836 9908 00
Publication Date 2019-05-08
Valid from Serial No. A5700001
Valid to Serial No. A1529999
G2417 S250 ( 25000 r/min)
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
8423031286
WARNING
G2427 S250
Product Instructions

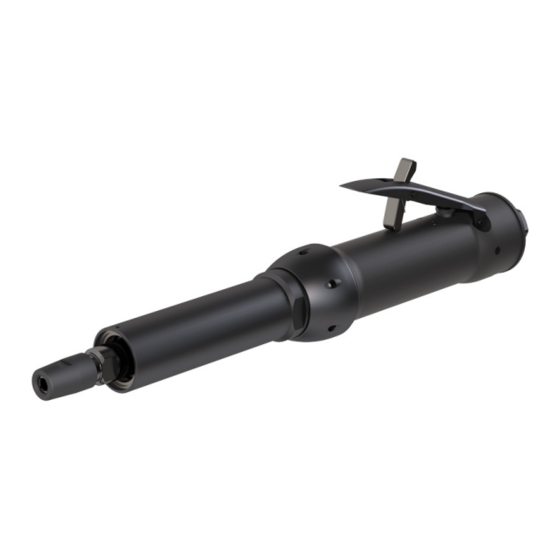

Die grinder
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlas Copco G2427 S250
Summary of Contents for Atlas Copco G2427 S250
- Page 1 G2427 S250 Printed Matter No.9836 9908 00 Die grinder Publication Date 2019-05-08 Valid from Serial No. A5700001 Product Instructions Valid to Serial No. A1529999 G2417 S250 ( 25000 r/min) 8423031286 WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
- Page 2 Table of Contents Product Instructions ....................3 © Atlas Copco Industrial Technique AB - 9836 9908 00...
-
Page 3: Signs And Stickers
■ Use a separate air filter of type Atlas Copco FIL, removes solid particles larger than 15 microns and more than 90 % of liquid water, installed as close as possible to the product and prior to any other air preparation unit like REG or DIM (please see Air Line Accessories in our main catalogue). -
Page 4: Operation
Test run every new mounted wheel in a safe position for 30 seconds. Be sure to use a barrier (such as under a heavy work table) to stop any possible broken wheel parts. Stop immediately if vibration is excessive © Atlas Copco Industrial Technique AB - 9836 9908 00... - Page 5 Engineers LE3752” (or EP grease) at the bottom of the hole in the collet holder. Lubricating guide Use lubricants of good quality. The oils and greases listed in the lubrication table are examples of lubri- cants that can be recommended. © Atlas Copco Industrial Technique AB - 9836 9908 00...
-
Page 6: Useful Information
Avoid extreme arm or wrist postures, particularly for operations requiring a degree of force. ■ Adjust for convenient field of vision by minimizing movement of the eyes and head during the work task. ■ Use the appropriate lighting for the work task. © Atlas Copco Industrial Technique AB - 9836 9908 00... -
Page 7: Country Of Origin
Warranty Contact the Atlas Copco sales representative within your area to claim a product. Warranty will only be ap- proved if the product has been installed, operated and overhauled according to the Operating Instructions. - Page 8 Safety and operating instructions G2427 S250 Safety Data Sheets MSDS/SDS The safety data sheets describes chemical products sold by Atlas Copco. For more information, consult the website http://www.atlascopco.com/. Choose Products - Safety Data Sheets, and follow the instructions on the page.
- Page 9 G2427 S250 Service instructions Service instructions Service instructions Operating instructions Free speed Model Min r/min Max r/min G2427-S250 22 000 25000 © Atlas Copco Industrial Technique AB - 9836 9908 00...
- Page 12 Original instructions Atlas Copco Industrial © Copyright 2019, Atlas Copco Industrial Technique AB. All rights reserved. Any Technique AB unauthorized use or copying of the contents or part thereof is prohibited. This SE-10523 STOCKHOLM applies in particular to trademarks, model denominations, part numbers and drawings.
