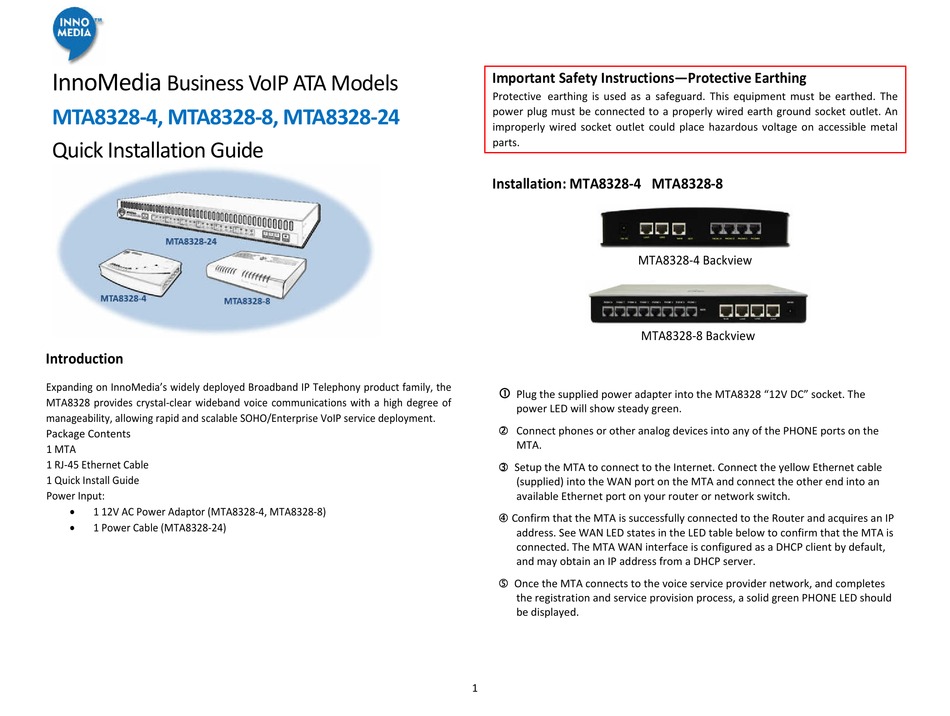

InnoMedia MTA8328-4 Quick Installation Manual

InnoMedia
Business VoIP ATA Models
MTA8328-4, MTA8328-8, MTA8328-24
Quick Installation Guide
Introduction
Expanding on InnoMedia's widely deployed Broadband IP Telephony product family, the
MTA8328 provides crystal-clear wideband voice communications with a high degree of
manageability, allowing rapid and scalable SOHO/Enterprise VoIP service deployment.
Package Contents
1 MTA
1 RJ-45 Ethernet Cable
1 Quick Install Guide
Power Input:
 1 12V AC Power Adaptor (MTA8328-4, MTA8328-8)
 1 Power Cable (MTA8328-24)
Important Safety Instructions—Protective Earthing
Protective earthing is used as a safeguard. This equipment must be earthed. The
power plug must be connected to a properly wired earth ground socket outlet. An
improperly wired socket outlet could place hazardous voltage on accessible metal
parts.
Installation: MTA8328-4 MTA8328-8
MTA8328-4 Backview
MTA8328-8 Backview

Plug the supplied power adapter into the MTA8328 "12V DC" socket. The
power LED will show steady green.
 Connect phones or other analog devices into any of the PHONE ports on the
MTA.
 Setup the MTA to connect to the Internet. Connect the yellow Ethernet cable
(supplied) into the WAN port on the MTA and connect the other end into an
available Ethernet port on your router or network switch.
 Confirm that the MTA is successfully connected to the Router and acquires an IP
address. See WAN LED states in the LED table below to confirm that the MTA is
connected. The MTA WAN interface is configured as a DHCP client by default,
and may obtain an IP address from a DHCP server.
 Once the MTA connects to the voice service provider network, and completes
the registration and service provision process, a solid green PHONE LED should
be displayed.
1
