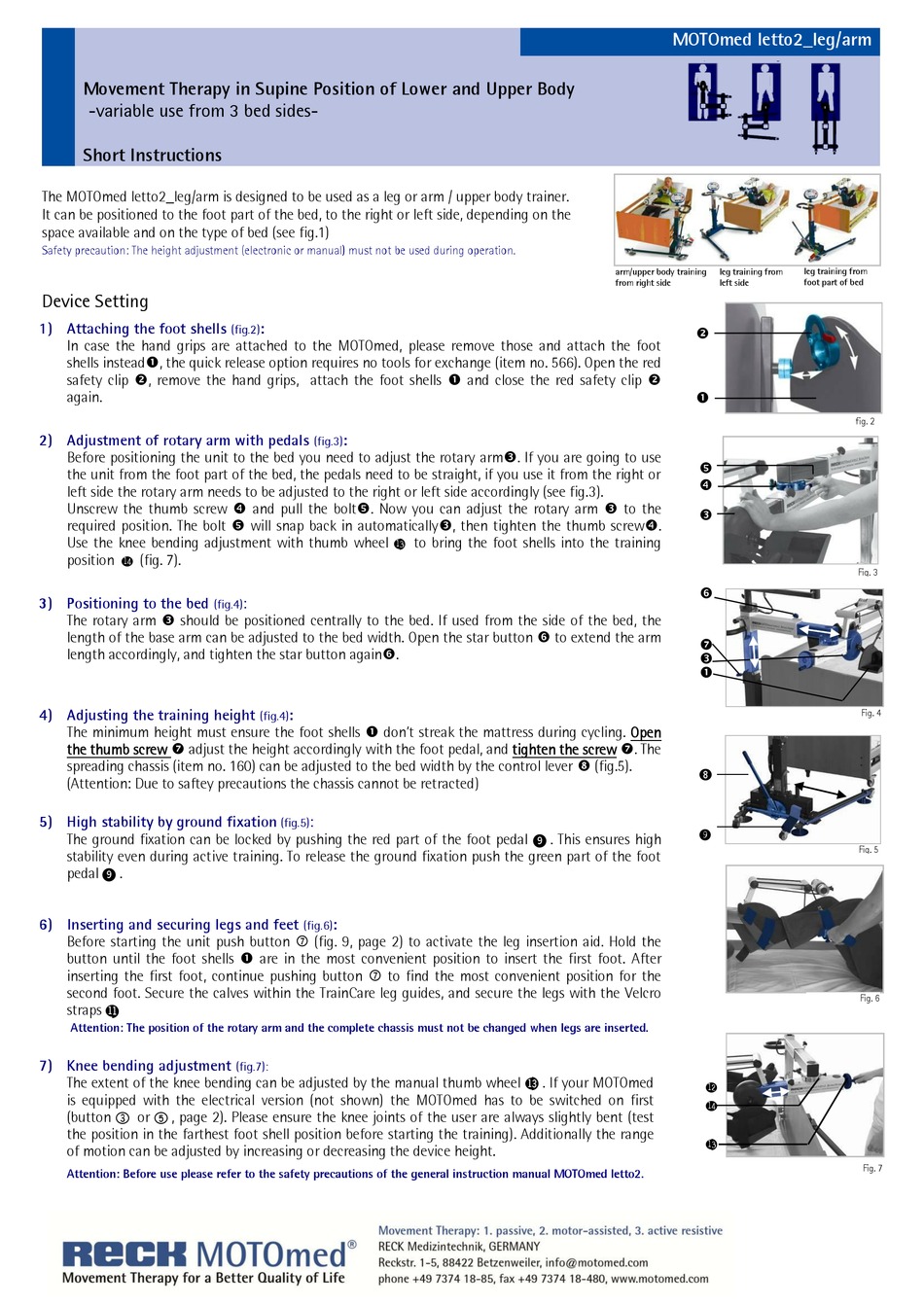

RECK MOTOmed letto2_leg/arm Short Instructions

Movement Therapy in Supine Position of Lower and Upper Body
-variable use from 3 bed sides-

Short Instructions

The MOTOmed letto2_leg/arm is designed to be used as a leg or arm / upper body trainer.
It can be positioned to the foot part of the bed, to the right or left side, depending on the
space available and on the type of bed (see fig.1)
Safety precaution: The height adjustment (electronic or manual) must not be used during operation.
Device Setting
1) Attaching the foot shells
In case the hand grips are attached to the MOTOmed, please remove those and attach the foot
shells instead, the quick release option requires no tools for exchange (item no. 566). Open the red
safety clip , remove the hand grips, attach the foot shells  and close the red safety clip 
again.
2) Adjustment of rotary arm with pedals
Before positioning the unit to the bed you need to adjust the rotary arm. If you are going to use
the unit from the foot part of the bed, the pedals need to be straight, if you use it from the right or
left side the rotary arm needs to be adjusted to the right or left side accordingly (see fig.3).
Unscrew the thumb screw  and pull the bolt. Now you can adjust the rotary arm  to the
required position. The bolt  will snap back in automatically, then tighten the thumb screw.
Use the knee bending adjustment with thumb wheel
BP
position (fig. 7).
3) Positioning to the bed
(fig.4)
The rotary arm  should be positioned centrally to the bed. If used from the side of the bed, the
length of the base arm can be adjusted to the bed width. Open the star button  to extend the arm
length accordingly, and tighten the star button again.
4) Adjusting the training height
The minimum height must ensure the foot shells  don't streak the mattress during cycling. Open
the thumb screw  adjust the height accordingly with the foot pedal, and tighten the screw . The
spreading chassis (item no. 160) can be adjusted to the bed width by the control lever  (fig.5).
(Attention: Due to saftey precautions the chassis cannot be retracted)
5) High stability by ground fixation
The ground fixation can be locked by pushing the red part of the foot pedal
stability even during active training. To release the ground fixation push the green part of the foot
)
pedal .
6) Inserting and securing legs and feet
Before starting the unit push button  (fig. 9, page 2) to activate the leg insertion aid. Hold the
button until the foot shells  are in the most convenient position to insert the first foot. After
inserting the first foot, continue pushing button  to find the most convenient position for the
second foot. Secure the calves within the TrainCare leg guides, and secure the legs with the Velcro
BM
straps
Attention: The position of the rotary arm and the complete chassis must not be changed when legs are inserted.
7) Knee bending adjustment
The extent of the knee bending can be adjusted by the manual thumb wheel
is equipped with the electrical version (not shown) the MOTOmed has to be switched on first
3 5
(button or , page 2). Please ensure the knee joints of the user are always slightly bent (test
the position in the farthest foot shell position before starting the training). Additionally the range
of motion can be adjusted by increasing or decreasing the device height.
Attention: Before use please refer to the safety precautions of the general instruction manual MOTOmed letto2.
:
(fig.2)
:
(fig.3)
BO
:
:
(fig.4)
:
(fig.5)
:
(fig.6)
(fig.7):
to bring the foot shells into the training
)
. This ensures high
BO
. If your MOTOmed
MOTOmed letto2_leg/arm
arm/upper body training leg training from
from right side left side









(
)
BN
BP
BO
Fig.1
leg training from
foot part of bed
fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
