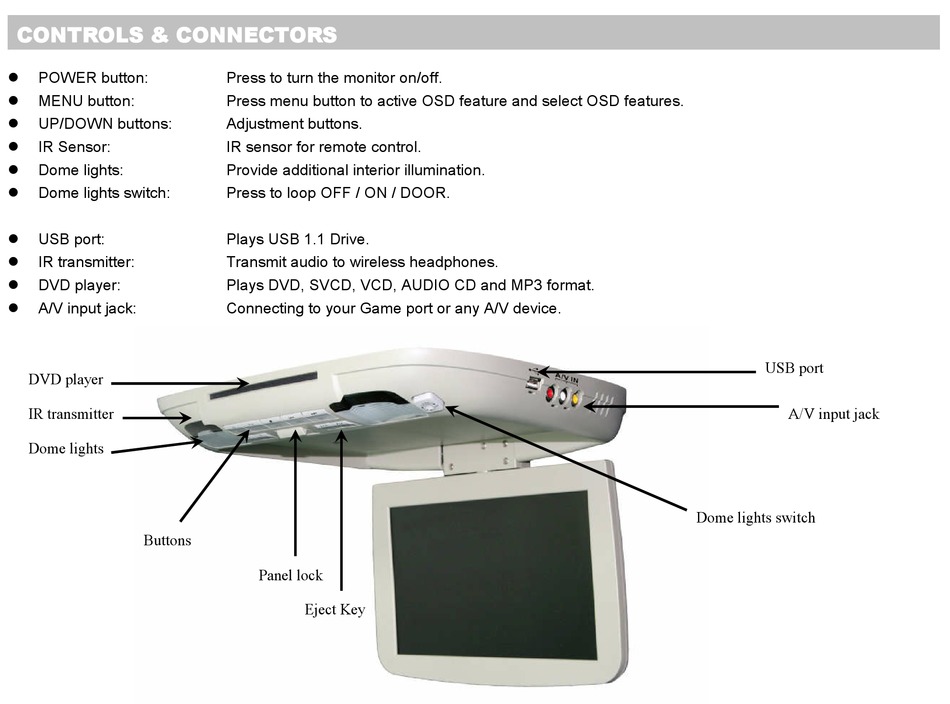

CONTROLS & CONNECTORS

POWER button:

MENU button:

UP/DOWN buttons:

IR Sensor:

Dome lights:

Dome lights switch:

USB port:
 IR transmitter:
 DVD player:
 A/V input jack:
DVD player
IR transmitter
Dome lights
Buttons
Press to turn the monitor on/off.
Press menu button to active OSD feature and select OSD features.
Adjustment buttons.
IR sensor for remote control.
Provide additional interior illumination.
Press to loop OFF / ON / DOOR.
Plays USB 1.1 Drive.
Transmit audio to wireless headphones.
Plays DVD, SVCD, VCD, AUDIO CD and MP3 format.
Connecting to your Game port or any A/V device.
Panel lock
Eject Key
SDM107 4
USB port
A/V input jack
Dome lights switch
