I N S T A L L A T I O N I N S T R U C T I O N S
CPU/DVD and VCR Mounting Accessory
Model: PAC-251

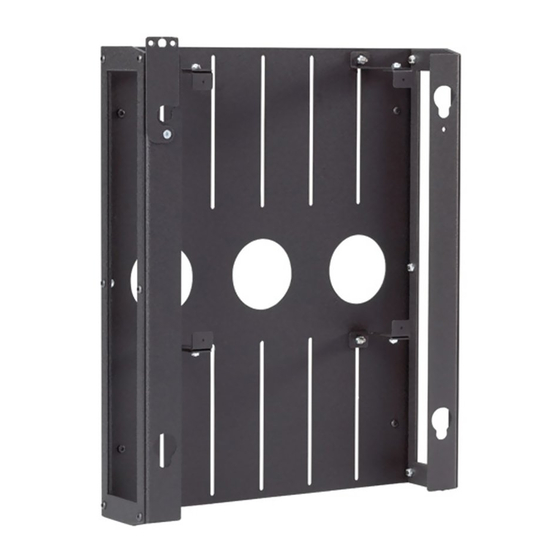

The PAC-251 allows the integration of a CPU, DVD Player or
VCR into installations using most Chief Large Flat Panel Display
mounts. This accessory easily adapts to Chief's patented
Q-Latch™ Mounting system and also allows for easy access to
drives and input/output connections.
Fits Equipment Dimensions:
5.125"–17.625" W x 1.5"–3.5" H x 3.5"–15.5" D
