2. Select the maximum medium temperature T
is larger or equal to the measured maximum medium
temperature T
 The column with the temperature class for gas is determined:
108 °C ≤ 130°C → T4.
3. The maximum temperature of the temperature class determined
corresponds to the maximum surface temperature for dust: T4 =
135 °C.
The following tables contain specifications which are dependent on the
transmitter type and its input and output assignment. Compare the
following specifications with those on the nameplate of the transmitter.
Cable specification: Connecting cable for remote version
The sensor cable connection between the sensor and the transmitter
has Ex ia type of protection.
Cable parameter: L/R ≤ 38.2 μH/Ω
The cable supplied by Endress+Hauser complies with this value.

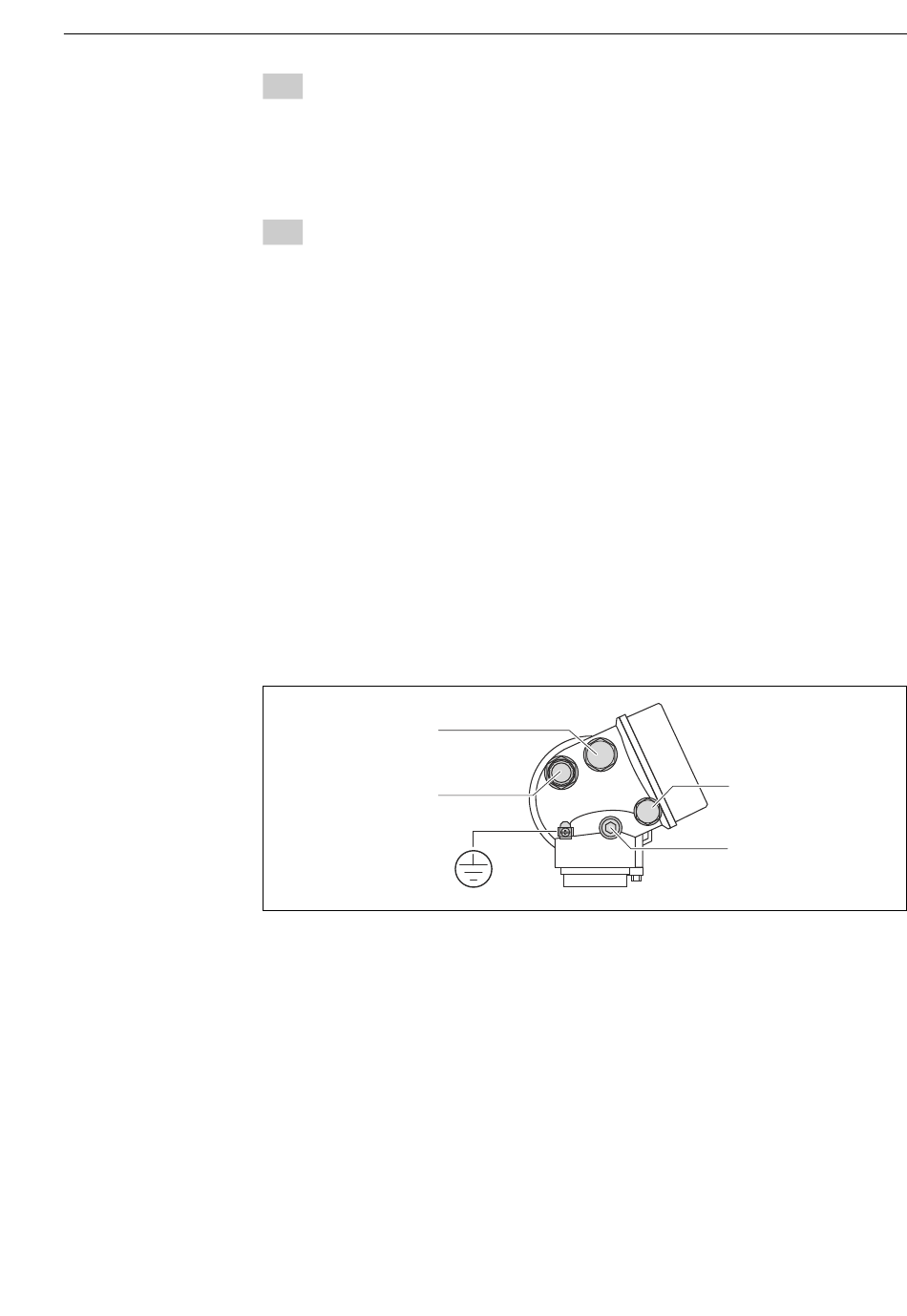

Connecting the transmitter
2
1
.
mm
XA01148D
of this row, which
m
3
4
A0023831
