FG7C CONTROLLER:

THE DISPLAY BOARD

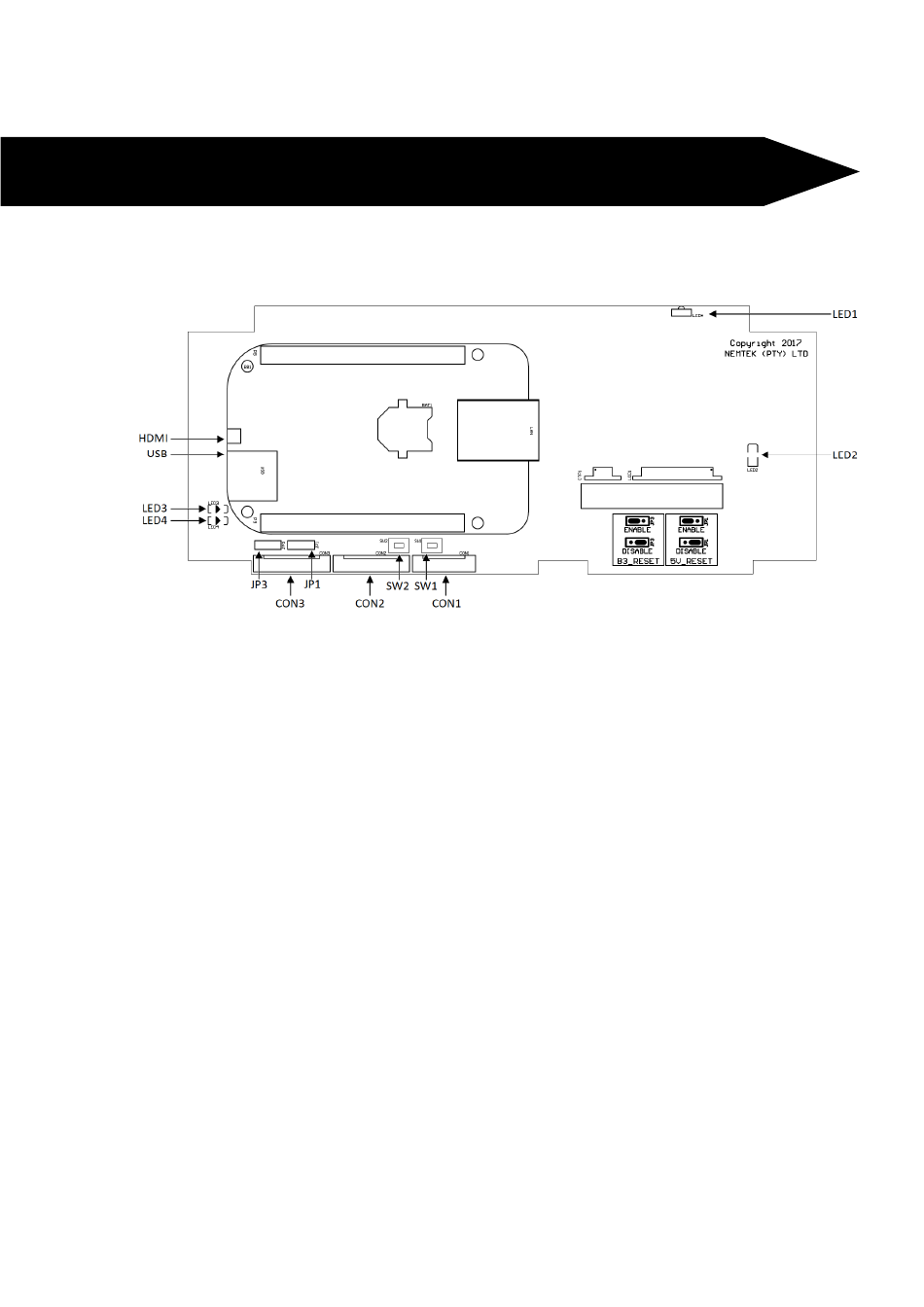

JUMPER SETTINGS DISPLAY BOARD
Jumper setting as viewed with connectors at the bottom.
Watch Dog timer 1
Watch Dog timer 2 JP3 (1)
PUSH BUTTONS ON DISPLAY BOARD
There are two push buttons on the green board. The one is marked SW2 "5V_RESET" and the
other SW1 "B3_RESET". The 5V_RESET button is used to manually power the control unit on and
off, this is usually required when programming the settings on the FG7C. The B3 RESET button is
used to manually reset the FG7C control unit.
JP1 (1) Positioned to the left for auto reset of the power supply with
transmission failure of the control unit
Positioned to the right for no auto reset of the power supply
Positioned to the left for auto reset with transmission failure of
the control unit
Positioned to the right for no auto reset of the control unit
THE DISPLAY BOARD
