FG7C CONTROLLER:
THE NEMLINK/TAUT WIRE COMMUNICATION BOARD

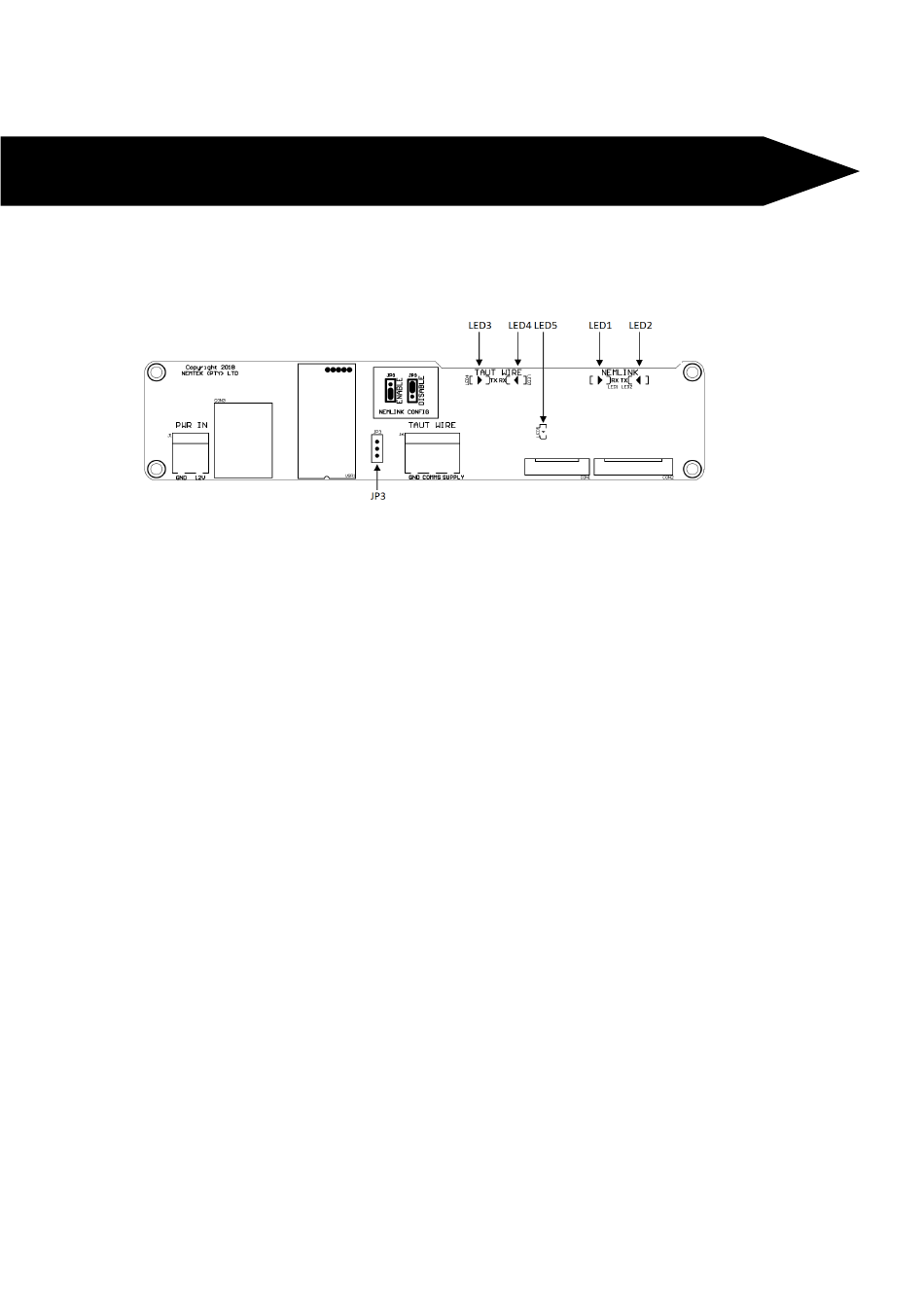

JUMPER SETTINGS COMMUNICATION BOARD
Jumper setting as viewed with connectors at the bottom.
Nemlink programming JP3 (1)
LED'S ON COMMUNICATION BOARD
LED1
LED2
LED3
LED4
LED5
CONNECTORS
Con 1
Con 2
Con 3
J1
J6
COMMUNICATION BOARDS
Down to enable programming of the Nemlink
Up standard operational mode
If flashing, indicates receiving of data from the Nemlink to the control
unit.
If flashing, indicates transmission of data from the control unit to the
Nemlink
If flashing, indicates receiving of data from the taut wire to the control
unit
If flashing, indicates transmission of data from the control unit to the
taut wire
5V supply indicator
Ribbon cable connection to Con1 of display board
Ribbon cable connection to Con2 of display board
Ethernet port for connection to data network
Two way connector for 12Vdc supply
Three way connector for connection to the taut wire system
10
