FG7C CONTROLLER:
3) If jumper JP1 and JP 3 on the display board are set to auto reset (normal operation),
then after about two minutes the application will restart. Otherwise one can push the B3-
PWR button and this will close the application and after the Nemtek logo has disappeared
from the screen you press the B3-PWR button again to restart the unit.
4) Check under the system tab that the number of IO cards is now correct.
Note 1:

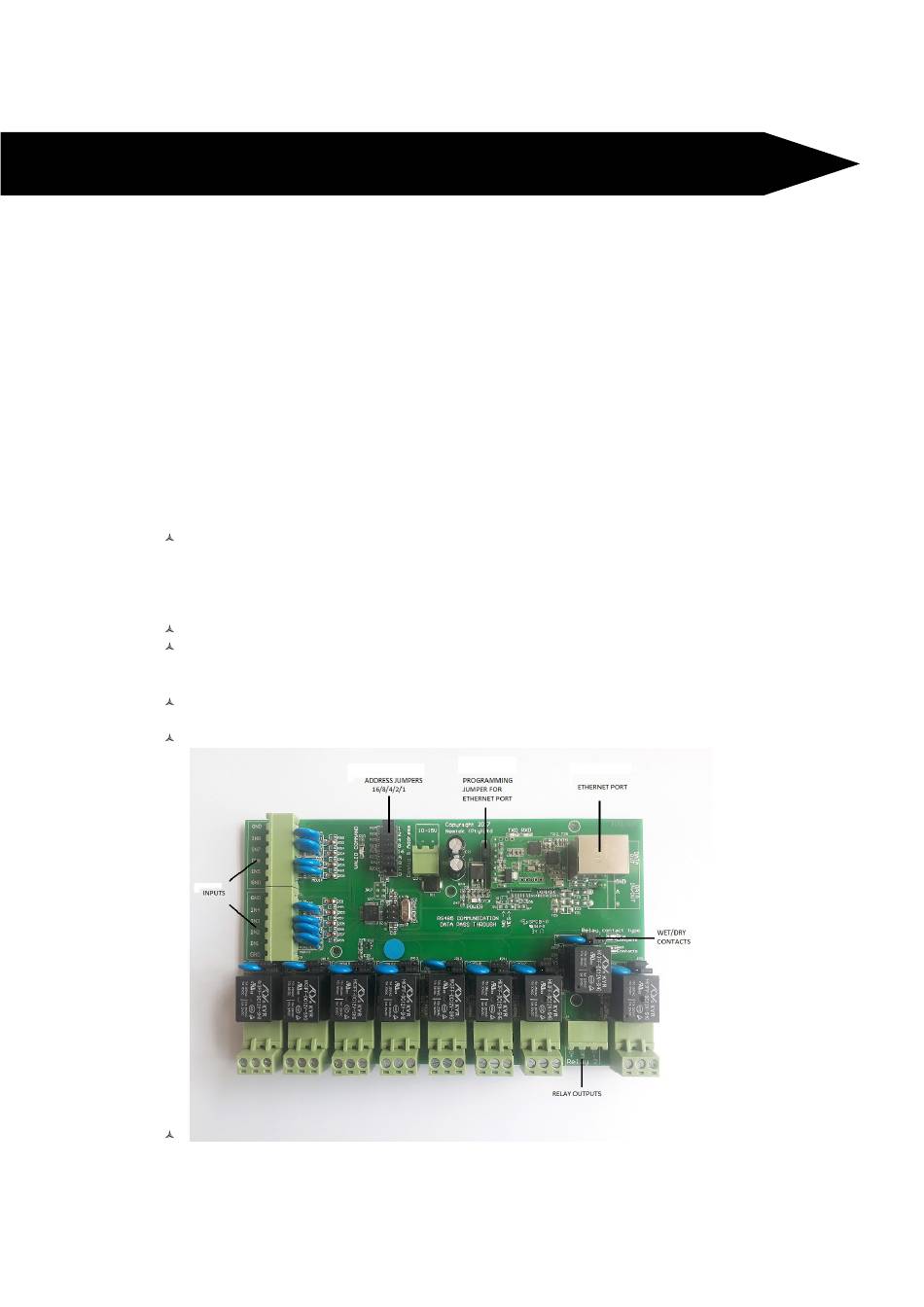

1. IO Card addresses are to start at #33 and must be sequential.
2. Removing a jumper increments the address by the number screen-printed on the pcb.
This address is added to an offset of 33. Example 1. If none of the 16/8/4/2/1 jumpers
are removed then the card will have a net address of 33. Example 2. If jumper 1 of the
16/8/4/2/1 jumpers is removed then the IO card will have a net address of 34. Example
3. If jumper 2 of the 16/8/4/2/1 jumpers is removed then the IO card will have a net
address of 35 etc.
Note 2:
The FG7 scans through the network address at a rate of twenty addresses per second.
The fewer the addresses utilised on the system, the faster the system response. Because
an energizer only updates its own parameters once a second, there is little point in
updating the FG7 display faster than that. A combination of twenty addresses on a FG7
network bus gives the optimal performance in terms of speed versus hardware utilization.
The number of IO Cards used on the system can vary from zero to a maximum of 31.
More than one energizer can be mapped to a single IO card. Example. One IO Card can
be mapped to 19 Energizers. A Fence 1 alarm, from any energizer, can be mapped to one
of the five relays on the IO card. This is useful for electrical contactors and lighting etc.
Only five conditions per energizer can be mapped to a relay. (Use computer network to
get full access to all the information.)
Only the Installer can manually toggle the relay outputs.
Programming the FG7C
