FG7C CONTROLLER:

Installing the FG7C

FG7C CONTROLLER: Installing the
communication boa
If removal of the base is required then first remove the lid from the base and disconnect the
wiring between the lid and the base, so that it can be fully removed. Turn the top wing clamp
screw anti clockwise until the wing clamp comes back into its base cavity (do not fully unscrew
the wing clamp screw since it will detach and can fall inside the wall). Repeat for the bottom
wing clamp and remove the base from the wall opening.

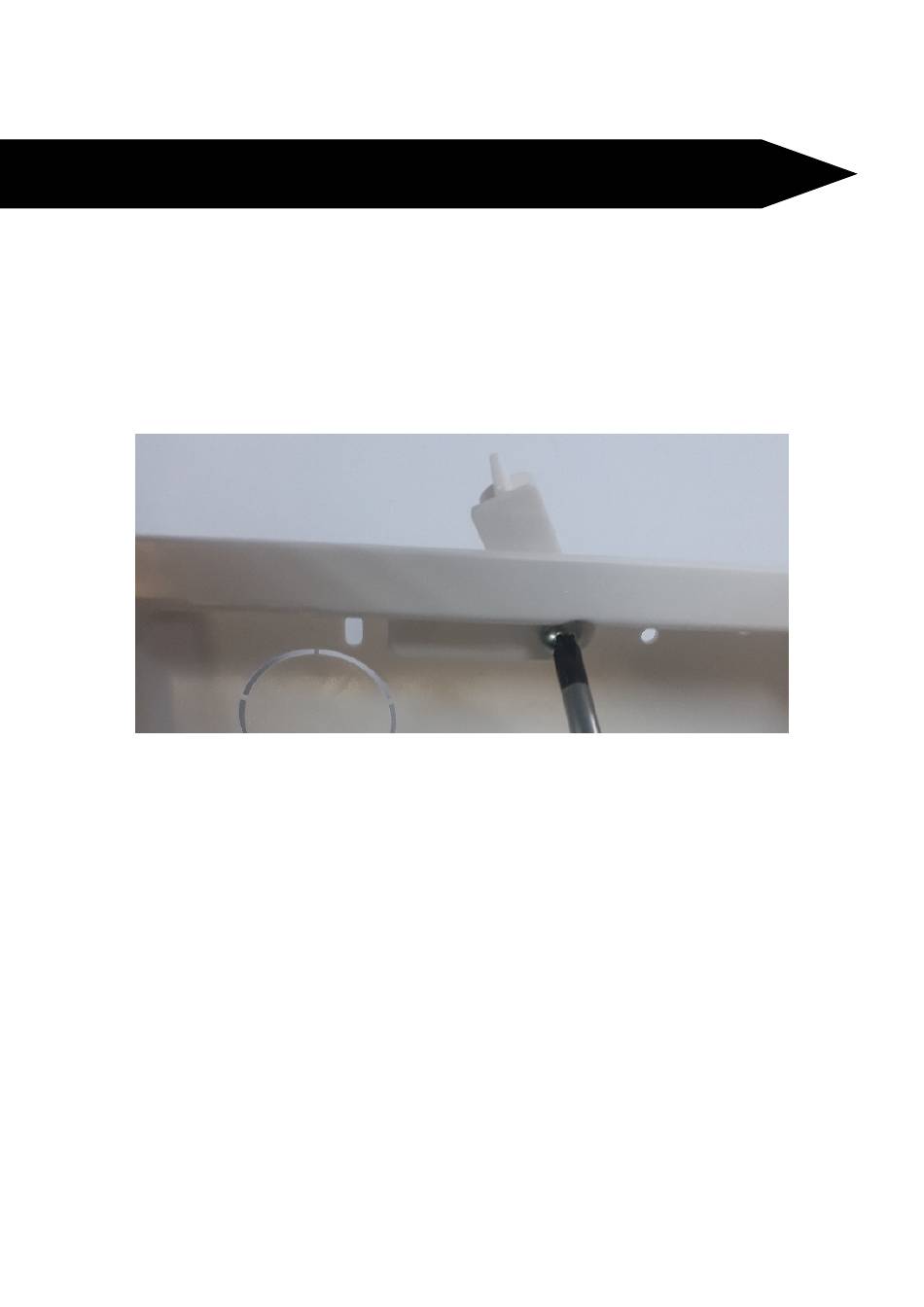

Wing clamp and Wing clamp screw
