FG7C CONTROLLER:

Installing the FG7C

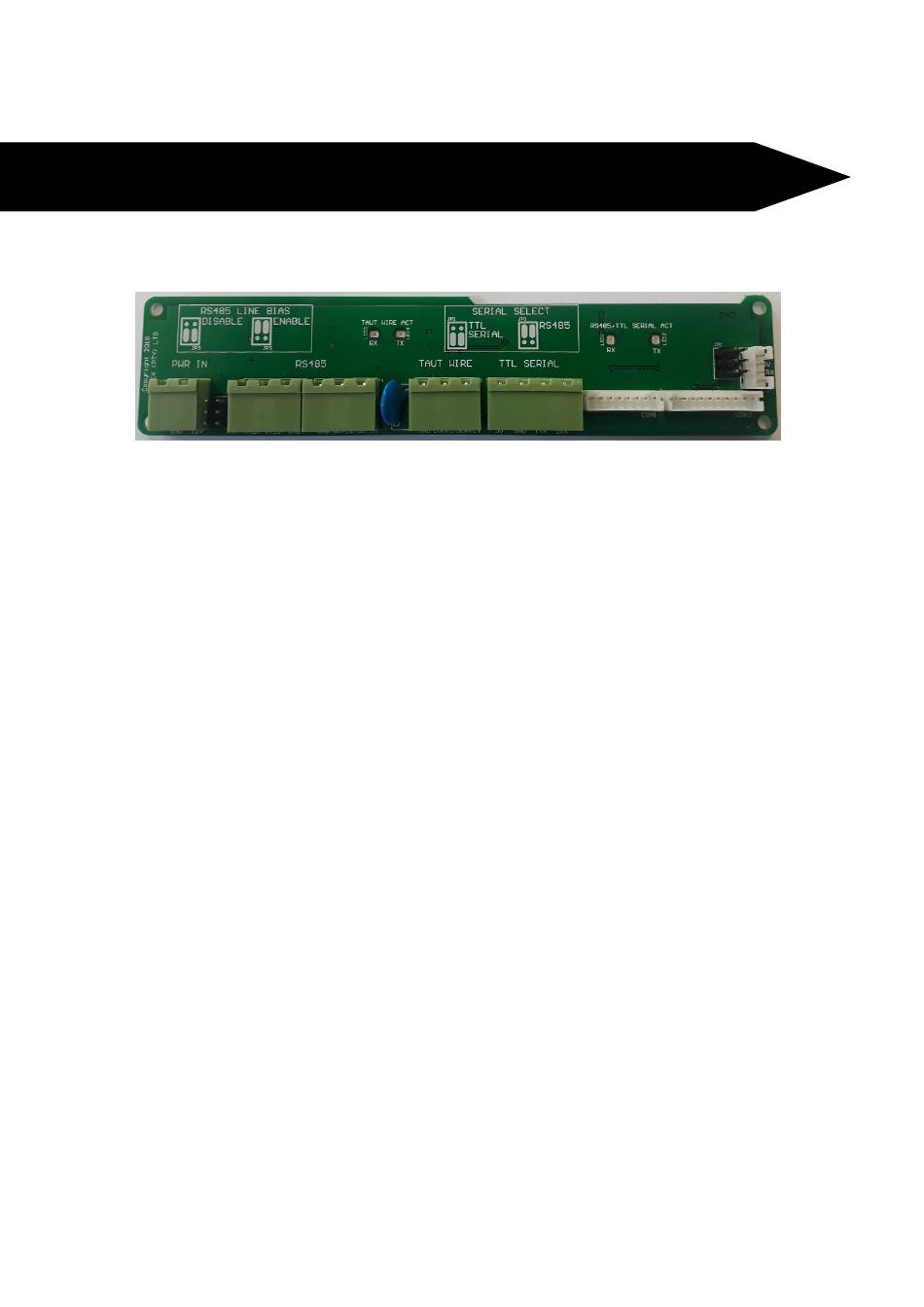

The FG7C communication board with RS485/Taut wire/TTL
INSTALLING THE COMMUNICATION BOARD
The communication board should be mounted in the bottom of the base of the FG7C with the
screws supplied with the board. The terminals on the board should be facing inwards once
mounted.
After mounting, the ribbon cables of the display board should be connected to the two white
terminals on the communication board (con1 and con2)
INSTALLING THE WALL MOUNT FG7C
The base of the FG7C has several counter sunk mounting holes at bottom of the unit, these can
be used to mount the unit on a wall with 4mm screws. The holes are spaced 100 x100 mm or 75
x 75 mm so that the unit can also be mounted at the back of HD monitor if so required.
Cable entries are available by means of a pushout at the bottom of the base or two cut outs on
the side of the base.
INSTALLING THE PANEL MOUNT FG7C
The panel mount FG7C is designed to be mounted flush in wooden walls or dry walling. A cut out
has to be made in these walls of 195mm x 130 mm.
Before installing the base of the FG7C into the wall make sure that all cut outs required for the
wiring are done on the base, that the wiring to the FG7C is fully tested and that the
communication board is installed.
The base is supplied with two wing clamps (see picture), make sure that they are positioned in
their base cavities. Place the base into the opening in the wall making sure that the cabling will
not get in the way of the wing clamps. Turn the top wing clamp screw a quarter turn anti
clockwise before turning it clockwise until the clamp is tight. Repeat this for the bottom clamp.
The base should now be securely clamped into the wall. Before closing the lid ensure that all
programming and all wiring to the control board and communication board is completed.
