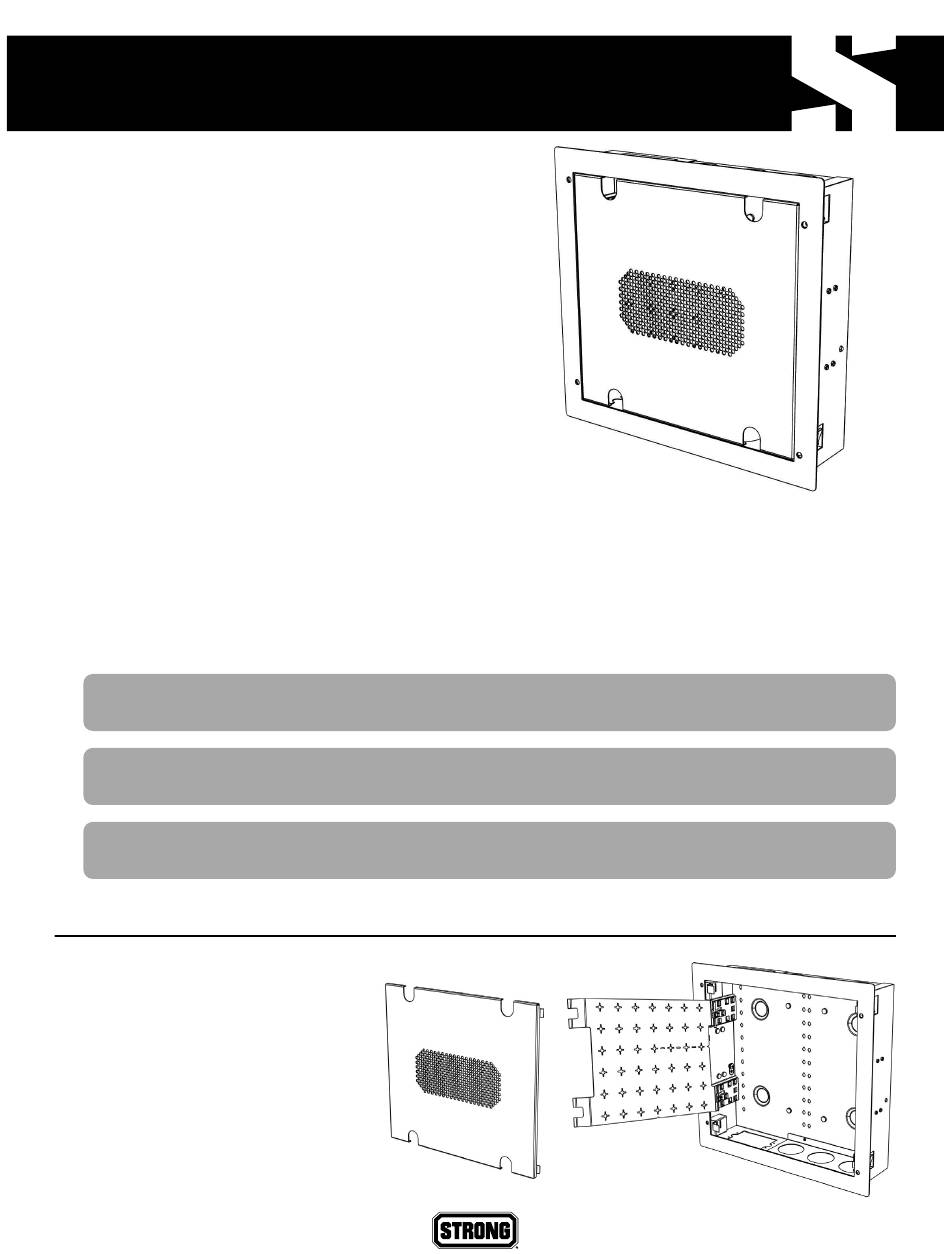

SM-RBX-PRO-14-BLK Dual-Layer Enclosure
Assembly Instructions
Contents
1 × Enclosure
1 × Central Support Plate
1 × Cover Plate
1 × Dust Cover
1 × Trim Bezel
6 × Silicone Grommets
1 × Hardware Pack
Installation Needs
• #1 Phillips screwdriver
• Drywall saw
• Tape measure
• Level
• ¼" flathead screwdriver
• Electric drill and ¼" bit
Danger: This equipment must be installed and assembled by qualified service personnel in
accordance with local building codes. Contact a suitable contractor if necessary.
Caution: Before beginning, carefully plan locations, accounting for electrical, ductwork, plumbing
or other obstacles that may interfere with installation of the box, equipment, or wiring.
Note:
Use only standard-size cover plates on boxes and rings installed in the Strong VersaBox.
Mid- and jumbo-size plates will not fit.
Installation
Remove the cover plate by
pulling the finger openings on
one side of the cover to pop it
loose.
Open any knockouts in the
VersaBox Pro that will be used
for wiring.
Optional Accessories and Hardware
• Drywall screws
• Electrical box and low voltage ring for
adding terminations to cutouts
• Compact WattBox (sold separately)
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Strong VersaBox Pro SM-RBX-PRO-14-BLK
Summary of Contents for Strong VersaBox Pro SM-RBX-PRO-14-BLK
- Page 1 Caution: Before beginning, carefully plan locations, accounting for electrical, ductwork, plumbing or other obstacles that may interfere with installation of the box, equipment, or wiring. Note: Use only standard-size cover plates on boxes and rings installed in the Strong VersaBox. Mid- and jumbo-size plates will not fit. Installation...
- Page 2 Drywall Mounting with Dogs Horizontal Cutout Dimenions 14.25" × 13.5" Locate two studs. Use the cutout template to mark the wall, centered between the studs. Use a level to align it correctly. Cut the opening using a drywall saw. Test fit the box, and clean up the opening as needed.
- Page 3 Knockouts & Modules The knockouts at the top and bottom can be used for low voltage rings or for outlet boxes. Any outlet box used must be an old-work, residential-grade box with integrated work supports to allow for secure mounting. Wherever you remove a cable/wire entry cover, insert a silicone grommet into the hole.
- Page 4 Snap One, LLC (formerly known as Wirepath Home Systems, LLC), in the United States and/or other countries. Strong, WattBox, and Wirepath are also registered trademarks or trademarks of Snap One, LLC. Other names and brands may be claimed as the property of their respective owners. Snap One makes no claim that the information contained herein covers all installation scenarios and contingencies, or product use risks.
