3G.16 ROC2
USE MANUAL and SPARE PARTS
IMPORTANTE NON DISTRUGGERE !
Read this manual carefully before using the stapler.
All safety rules contained must bestrictly observed.
Via Foresto 42 - 31058 SUSEGANA TV ITALY
cod. 1144350ROC2
1144350ROC2_3G16ROC2_6 100211 IV
Tel.0438455318 Fax 0438455530
E-mail: omer@omer.it
INTRODUCTION:

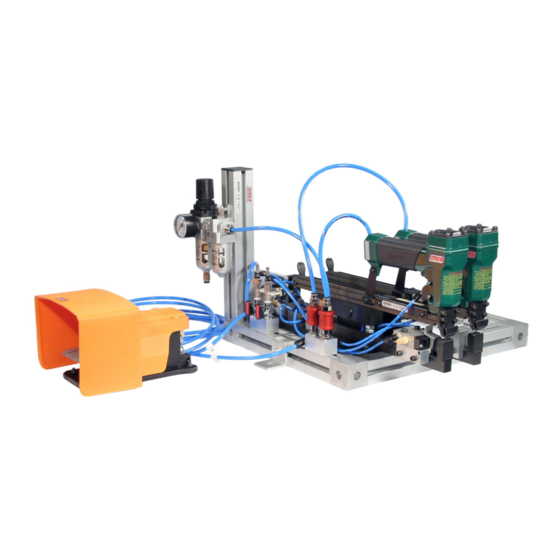

The bench-mounted ROC2 is the optimal solution for fixing 2 staples simultaneously.
Ideal for fastening blister, bags, boxes, displaying cards, etc.
Features:
• Frame with aluminium profile, easy to fix upon working surface
•Pneumatic system complete with FRL unit and manometer for a correct power
supply
• Possibility to fix 1 or 2 staples at time
• Contact activated mode (control lever on main stapler)
• Safe operations: final release through pedal valve
• Working pressure: 5,5 – 6,5 bar ( 80 – 95 PSI )
• Top loading
• Magazine capacity 2 strip
• Applicable size: 6 to 16 mm
• Easy jam clearing
• Easily replaceable pneumatic tool units (with units suitable for different fastening
series (es: 3G - 64 - 80 - 50 - 65 - 40 - 4097)
ROC-C, per punti di tipo diverso (es: 3G - 64 - 80 - 50 - 65 - 40 - 4097)
• Adjustments:
MADE
IN
ITALY
www.omer.it
- Interax between tools: 60 – 254 mm
- Clinching depth
- Front side opening
- Clinching speed
- Fire delaying
- working cycle
- 1 -
