USE MANUAL and SPARE PARTS
IMPORTANT DO NOT DESTROY !
Read carefully this manual before using the tool and
respect the security norms herewith enclosed.
Via Foresto 42 - 31058 SUSEGANA TV ITALY
80.16 ROP
cod. 1146050ROP
1146050ROP_8016ROP_1 210611 IV
Tel.0438455318 Fax 0438455530
E-mail: omer@omer.it
INTRODUCTION:

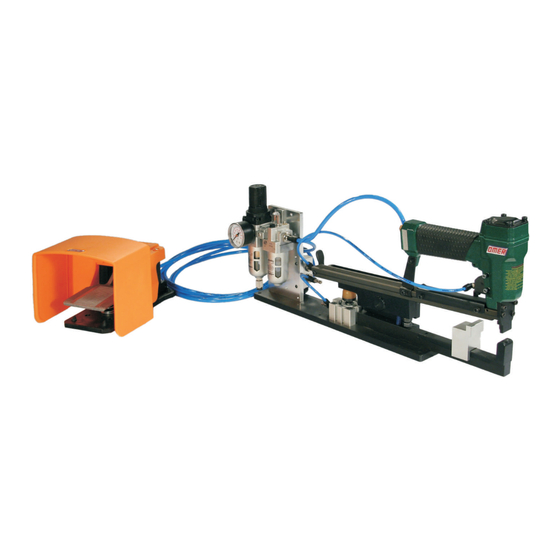

The bench-mounted stapler ROP is the optimal solution for fixing blisters, paper or
plastic bags, boxes, displaying cards, etc.
Features:
• Possibility to be easily fixed upon working surface
•Pneumatic system complete with FRL unit & manometer for a correct power
supply
• Pedal activated mode
•Working pressure: 5,5 ÷ 6,5 bar ( 80÷ 95 PSI )
• Top loading
• Magazine capacity: 2 strips
• Applicable sizes: 6 to 16mm
• Easy jam-clearing
• Easily replaceable pneumatic tool units (with units suitable for different fastener
series, i.e. 3G, 64, 80, 50, 65, 40, 4097)
• Possible adjustements:
MADE
IN
ITALY
www.omer.it
- Clinching depth
- Front side opening
- Clinching speed
- Fire delay

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1146050ROP and is the answer not in the manual?

Questions and answers

Summary of Contents for Omer 1146050ROP

  • Page 1 The bench-mounted stapler ROP is the optimal solution for fixing blisters, paper or 80.16 ROP plastic bags, boxes, displaying cards, etc. Features: cod. 1146050ROP • Possibility to be easily fixed upon working surface •Pneumatic system complete with FRL unit & manometer for a correct power supply •...
  • Page 2 2 strips capacity magazine Easy jam-clearing trigger Silenced rear exhaust Manometer Filter/reducer/lubricator unit Rapid rear exhaust Distributor Guide to help placing material to be fastened Plate for bench-mounting Anvil Adjustable spacer Adjustment of clinching depth Pneumatic pedal Front side opening adjustment Clinching speed regulator (closing) Fire delay regulator...
  • Page 3: Table Of Contents

    INDEX: Introduction ........................1 Nomenclature ......................2 - 3 Index ..........................4 Declaration of conformity ..................... 5 User Manual and security norms ................5 - 7 Warranty ........................7 Technical data ......................8 - 9 Operating mode ......................10 Settings ( to be performed in sequence): - Stapling position .........
  • Page 4: Introduction

    INTRODUCTION In order to assure high reliability, OMER has made a careful choice of the materials and components to be used in the manufacturing process of the tool and has tested it before delivery. Proper performance of the tacker in time also depends on its correct use and on adequate servicing according to the instructions contained in this manual.
  • Page 5 OMER spa does not answer for damage to the gun due to the use of staples or nails of types not suitable for the model.
  • Page 6 To do so, unscrew the head screws with the hex spanner supplied, open the gun and remove the different components. Check carefully the state of wear of the O-rings and of the rubber parts. Replace the worn parts with OMER original spare parts.
  • Page 7: Technical Data

    Technical data 0,65x0,95 1/4" Suitable staple series : 5/8" 11,4 Crown: .500” (1/2“) Thickness: .025" Width: .037" Gauge: 6÷16 Usable lenghts mm 1/4"÷5/8" Usable lengths inch Magazine capacity No. of fasteners 5,5÷6,5 Working pressure bar Working pressure psi 80÷95 0,58 Air consumption litres/shot 0,0204 Air consumption ft /shot...
  • Page 8 Technical data *all sizes are shown in mm Max 18 Max 10 15,5 Min 0,5 27,5 142,5 150,5 - 9 -...
  • Page 9: Operating Mode

    Operating mode Tool operating : 1 - Insert the material to be fastened until spacer is met. 2 - Press pedal to activate the stapler. Before using the unit make sure all necessary adjustments for a correct and safe usage have been performed.
  • Page 10: Front Side Opening

    Adjustment of front side opening A front side opening adjustment must be carried out to allow an easy insertion of the material to be fastened. Disconnect the air before proceeding with the adjustment. 1 - Press the stapler head and keep this position to gain access to the pneumatic cylinder and bumper.
  • Page 11: Clinching Depth

    Clinching depth adjustment To avoid flattening/damaging the material to be fastened it is possible to set the clinching depth by adjusting the end-run screw. Disconnect the air before proceeding with the adjustment. max 10 mm min 0,5 mm 1 - Loosen the nut which stops the end-run screw. 2 - Screw or unscrew the end-run screw to adjust the clinching depth.
  • Page 12: Clinching Speed

    Fire delay adjustment Fire delay adjustment is the more necessary the wider is the front opening on the tool, since you must give time to the stapler to block the material before firing. delays firing anticipates firing Clinching speed adjustment This adjustment allows you to set the most comfortable working speed.
  • Page 13: Loading

    Loading DO NOT press pedal while loading, to avoid activating the device 1 - Pull the pusher all the way back and lock it 2 - Load staples 3 - Release the slider - 14 -...
  • Page 14: Jam-Clearing

    Jam-clearing In case of jamming, proceed as follows: 1 - Pull the pusher all the way back and lock it. 2 - Remove the staples from the magazine. 3 - Open the slider closing trigger. 4 - Pull the slider all the way back by acting on the pusher and holding it in such a position. 5 - Pull the jammed staple out from the firing channel.
  • Page 15: Spare Parts

    Spare parts - 16 -...
  • Page 16 Spare parts INDICE DI MODIFICA 04.35 UPGRADE NUMBER NIVEAU DE MODIFICATION INDICADOR DE MODIFICA MATRICOLA SERIAL NUMBER 25.04 MATRICULE MATRICULA 39.00 00.14 22.07 24.00 17.31.4 28.00 20.00 92.01X 03.00 00.12 66.03 50.06.1 01.33 40.04.2 17.31.5 00.14 01.29 66.03 00.26 00.06 45.04 52.02 03.30...
  • Page 17 Spare parts MATRICOLA SERIAL NUMBER 18.21 MATRICULE MATRICULA 17.14 05.14 INDICE DI MODIFICA 00.14 UPGRADE NUMBER NIVEAU DE MODIFICATION INDICADOR DE MODIFICA 18.22.1 98.08.1 17.39.6 98.04 98.03 18.24 92.03 05.30 17.37.1 06.20 17.37.2 17.38 32.05 06.19 17.37.2 17.31.4 06.00.3 17.34.8 98.07.1 18.02 05.30...
  • Page 18: Pneumatic Diagram

    Pneumatic diagram 5,5 ÷ 6,5 bar Ø4 Ø4 Ø6 Ø6 R P S 5,5 ÷ 6,5 bar Ø6 Ø6 17.39.6 - 19 -...
  • Page 19: Spare Parts List

    Accesssories Spare parts list Cod. Descrizione Description Cod. Descrizione Description 00.04 O-Ring O-Ring 18.02 Cilindro Pneumatico Pneumatic Cylinder 00.06 O-Ring O-Ring 18.21 Manometro Manometer 00.12 O-Ring O-Ring 18.22.1 Filtro riduttore lubrificatore Reducer group 07.40 00.13 O-Ring O-Ring 18.24 Distributore Distributor 00.14 O-Ring O-Ring...
  • Page 20: Notes

    Notes - 22 -...
