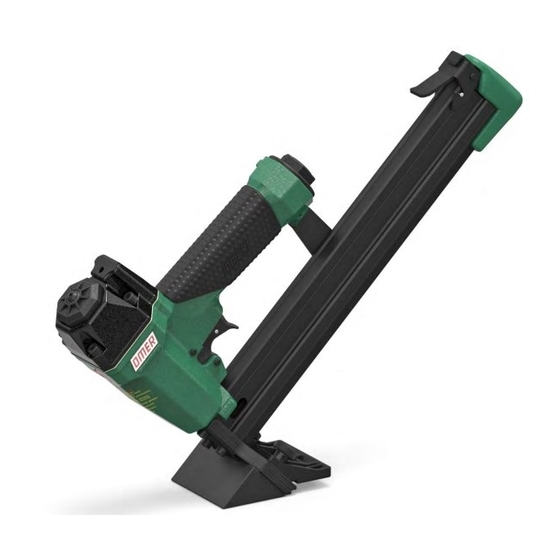

90.38 FL2
ENGLISH
cod. 1427050FL2
MADE
IN
ITALY
USER MANUAL and SPARE PARTS
IMPORTANT DO NOT DESTROY !
Read carefully this manual before using the tool and
respect the security norms herewith enclosed.
1427050FL2_9038FL2_2 200613 IV
Via Foresto 42 - 31058 SUSEGANA TV ITALY
Tel.0438455318 Fax 0438455530
E-mail: omer@omer.it
www.omer.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 90.38 FL2 and is the answer not in the manual?

Questions and answers

neil
May 6, 2025

Hi do you have a non mounted version on Omer staple compressed gun

0
1 comments:
Mr. Anderson
May 18, 2025

Yes, Omer offers a non-mounted version of the staple compressed gun with part number 90.38 FL2.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Omer 90.38 FL2

Summary of Contents for Omer 90.38 FL2

  • Page 1 ® 90.38 FL2 ENGLISH cod. 1427050FL2 MADE ITALY USER MANUAL and SPARE PARTS IMPORTANT DO NOT DESTROY ! Read carefully this manual before using the tool and respect the security norms herewith enclosed. 1427050FL2_9038FL2_2 200613 IV Via Foresto 42 - 31058 SUSEGANA TV ITALY Tel.0438455318 Fax 0438455530...

  • Page 2: Table Of Contents

    INDEX: Index ..........................2 Declaration of conformity .................... 3 User manual and security norms ................3 - 5 Warranty ........................5 Introduction, technical data and type of fastener ............6 Dimensions and features ....................7 Loading ........................8 Jam clearing ........................ 9 Foot adjustment ......................

  • Page 3: Declaration Of Conformity

    INTRODUCTION In order to assure high reliability, OMER has made a careful choice of the materials and components to be used in the manufacturing process of the tool and has tested it before delivery. Proper performance of the tacker in time also depends on its correct use and on adequate servicing according to the instructions contained in this manual.
  • Page 4 OMER spa does not answer for damage to the gun due to the use of staples or nails of types not suitable for the model.

  • Page 5: Warranty

    To do so, unscrew the head screws with the hex spanner supplied, open the gun and remove the different components. Check carefully the state of wear of the O-rings and of the rubber parts. Replace the worn parts with OMER original spare parts.

  • Page 6: Introduction, Technical Data And Type Of Fastener

    INTRODUCTION: The 90.38 FL2 tool is designed for fixing wood flooring with thicknesses of: 3/8" - 10 mm | 1/2" - 12 mm | 5/8" - 15 mm. TECHNICAL DATA: Usable length of fasteners: 1" ÷ 1-1/2" Working pressure: 5,5 ÷ 6,5 bar 80 ÷...

  • Page 7: Dimensions And Features

    DIMENSIONS: 10.31 in. 15.43 in. 2.99 in. FEATURES: No-mar magazine cushion eliminates scratches on walls and on the floor Rubber grip Double length magazine, for less reloading 360° adjustable exhaust Aluminium die-cast housing to stand up the toughest job Reload indicator, eliminates dry firing Patented tool-free adjustable foot...

  • Page 8: Loading

    4 - Turn the tool upside down 5 - Insert staples into magazine (max. 180 staples) 6 - Close slider until trigger hooks to magazine 7 - Reconnect air system NOTE - For correct operations do always use OMER original fasteners - 8 -...

  • Page 9: Jam Clearing

    JAM CLEARING: NEVER pull the trigger or the contact safety while jam clearing 1 - Disconect the tool from air system 2 - Push the locking trigger 3 - Move the slider backwards 4 - Remove staple from magazine 5 - Remove jammed staple from driving channel 6 - Perform loading operations NOTE - If the tool keeps jamming, please stop operations and refer to an authorized dealer - 9 -...

  • Page 10: Foot Adjustment

    FOOT ADJUSTMENT: 1 - Loosen the locking knob 2 - Spacer and supporting foot are now mobile 3 - Position the supporting foot against the flooring surface 4 - Position the spacer in such a way that the base will be in contact with the flooring surface and the wood spline is embedded in the tool nose 5 - Tighten the knob - 10 -...

  • Page 11: Flooring Thicknesses And Fastener Length Choice

    FLOOORING THICKNESSES: min. 4,9 mm [.197”] max. 15 mm [.590”] max. 4,7 mm .185” FASTENER LENGHT CHOICE: Flooring Thicknesses Fastener Recommendation Staple 1" | 25 mm Staple 1-1/8" | 28 mm 3/8"- 10 mm Engineered wood flooring Staple 1-1/4" | 32 mm Staple 1-1/8"...

  • Page 12: Spare Parts

    71.41.1 05.10 72.40 05.14 05.30 05.10 05.25 52.45.90 06.35.6 70.22 74.43 80.43 09.02 61.46.90 90.07 71.45.90 76.46 76.05 04.06.5 90.38 FL2 70.43.1 04.06.5 c o d . 1 4 2 7 0 5 0 F L 2 - 12 -...

  • Page 13: O-Rings

    Caricatore Magazine 61.46.90 Carrello Slider 71.45.90 Spingipunto Pusher 00.74.1 81.40.90 Controtestina Nose 91.46.90 Testina Nose plate Indice di modifica 90.38 FL2 c o d . 1 4 2 7 0 5 0 F L 2 Upgrade number - 13 -...

  • Page 14: Troubleshooting

    TROUBLESHOOTING: PROBLEM POSSIBLE SOLUTION Fastener will not drive completely into - Increase air pressure (do not exceed 7 bar / 100 PSI) the wood - Use larger air lines (3/8 inch ID minimum) - Check if lubrication of your air system is working the correct way - Increase air pressure (do not exceed 7 bar / 100 PSI) Fastener penetrate properly during normal operation, but won’t drive fully...

  • Page 15: Notes

    NOTES: - 15 -...

  • Page 16: Tool Case Contents

    TOOL CASE CONTENTS: Use manual and spare parts 07.30 07.40 Pneumatic oil bottle to Hex head wrench lubricate the tool to service the tool Plastic block to fit Safety glasses wood flooring boards for your protection - 16 -...
