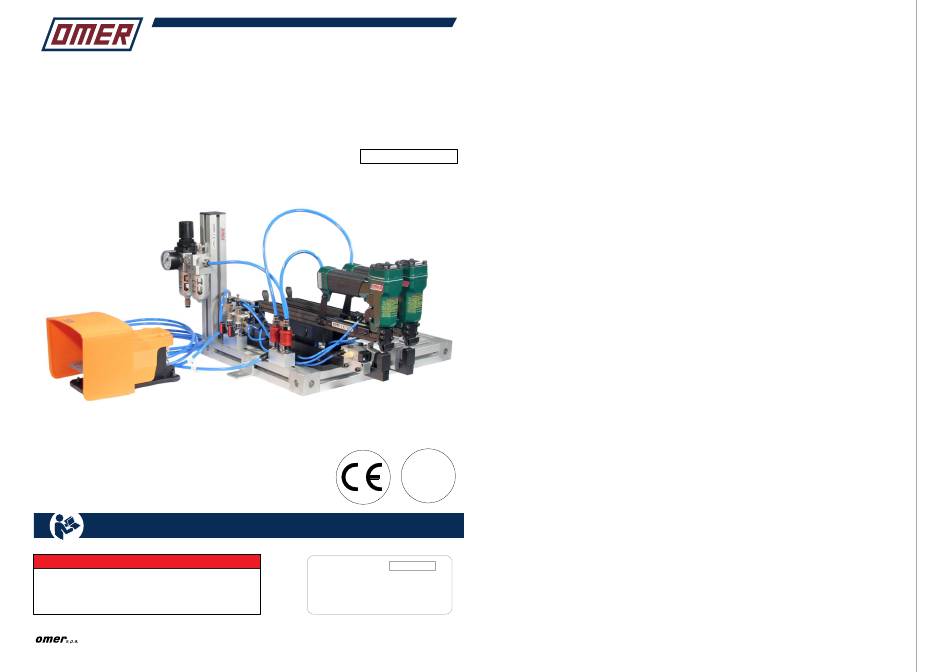

INTRODUCTION:

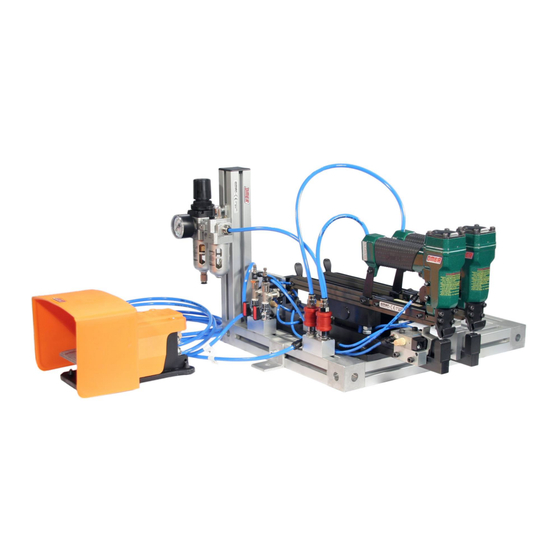

The bench-mounted ROC2 is the optimal solution for fixing 2 staples simultaneously.
Ideal for fastening blister, bags, boxes, displaying cards, etc.
Features:
• Frame with aluminium profile, easy to fix upon working surface
•Pneumatic system complete with FRL unit and manometer for a correct power
supply
• Possibility to fix 1 or 2 staples at time
• Contact activated mode (control lever on main stapler)
• Safe operations: final release through pedal valve
• Working pressure: 5,5 – 6,5 bar ( 80 – 95 PSI )
• Top loading
• Magazine capacity 2 strip
• Applicable size: 6 to 16 mm
• Easy jam clearing
• Easily replaceable pneumatic tool units (with units suitable for different fastening
series (es: 3G - 64 - 80 - 50 - 65 - 40 - 4097)
• Adjustments:
MADE
IN
ITALY
www.omer.it
- Interax between tools: 60 – 254 mm
- Clinching depth
- Front side opening
- Clinching speed
- Fire delaying
- working cycle
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Omer 50.16 ROC2
Summary of Contents for Omer 50.16 ROC2
- Page 1 ® INTRODUCTION: The bench-mounted ROC2 is the optimal solution for fixing 2 staples simultaneously. 50.16 ROC2 Ideal for fastening blister, bags, boxes, displaying cards, etc. Features: cod. 1146750ROC2 • Frame with aluminium profile, easy to fix upon working surface •Pneumatic system complete with FRL unit and manometer for a correct power supply •...
- Page 2 Mobile plate for adjusting space between tools Easy jam-clearing trigger Manometer Fire delaying regulator Clinching speed regulator on secondary tool on main stapler Aluminium frame Pneumatic cylinder Timer Magazine 2 strips capacity Air plug connector Silenced rear exhaust Filter/reducer/lubricator group Pneumatic valve Secondary tool Fire delaying regulator on...
-
Page 3: Table Of Contents
INDEX: Introduction ......................... 1 Nomenclature ......................2 - 3 Index ..........................4 Declaration of conformity .................... 5 User manual and safety rules ................... 5 - 7 Warranty ........................7 Technical data ......................8 - 9 Installation ........................10 Operating modes: - Single mode ............ -
Page 4: Introduction
INTRODUCTION In order to assure top working reliability, OMER has made a careful choice of the materials and components to be used in the manufacture of the tool and has tested it before delivery. Proper performance of the tacker in time also depends on its correct use and on adequate servicing according to the instructions contained in this manual. - Page 5 OMER spa does not answer for damage to the gun due to the use of staples or nails of types not suitable for the model.
- Page 6 To do so, unscrew the head screws with the hex spanner supplied, open the gun and remove the different components. Check carefully the state of wear of the O-rings and of the rubber parts. Replace the worn parts with OMER original spare parts.
-
Page 7: Technical Data
Technical data Suitable staple series : Stapling results 98.06 (standard supplied) 0,50x1,25 staple 1/4" 5/8“ 11,3 Crown: .484” (1/2") Thickness: .020" Width: .050" Gauge: Usable lenghts mm 6÷16 1/4"÷5/8" Usable lengths inch Magazine capacity No. of fasteners 5,5÷6,5 Working pressure bar Working pressure psi 80÷95 0,68... - Page 8 Technical data Main tool Max 18 Max 10 15,5 Min 0,5 27,5 105,5 150,5 Secondary tool Max 18 Max 10 15,5 Min 0,5 27,5 142,5 150,5 min 60 Max 254 *all measures are expressed in mm - 9 -...
- Page 9 Assembling 1 - Fix the frame to the working surface through the 2 brakets. 2 - Insert oil suitable for pneumatic devices in the lubricator. 3 - Connect the compressed air to the unit. 4 - Adjust pressure at 6 bar by acting on the regulating knob. - 10 -...
-
Page 10: Operating Modes
Operating Modes Singole Mode : Single mode is used when the fastening of only one staple at a time is required. To set this mode follow the istructions: This mode can be activated only on the main tool 1 - Close the ball valve 2 - Close the slide valve (by closing you will notice a brief air flow) Operating Mode :... -
Page 11: Dual Mode
Operating Modes Dual Mode : The dual mode is required when two staples are to be fired at the same time. To set this mode follow the istructions : 1 - Both ball valves must be open 2 - Both slide valves must be open Operating Mode :... - Page 12 How to set stapling position r a x n t e o f i l e s t a p t i n g S e t w e e b e t n c e i s t a o f d e n t e d g...
- Page 13 How to set stapling position Adjustment of distance from the edge : The distance from the edge is determined by the adjustment of the spacerssituated on the two staplers. Main stapler: 1 - Losen the screws. 2 - Slide the spacer along the guide until required position.
- Page 14 Adjustment of front side opening A front side opening adjustment must be carried out to allow an easy insertion of the material to be fastened. Disconnect the air before proceeding with any adjustment 1 - Press the stapler head and hold this position to have access to the pneumatic cylinder and bumper.
-
Page 15: Clinching Depth
Adjustment of clinching depth To avoid flattening/damaging the material to be fastened it is possible to set the clinching depth by adjusting the end-run screw Disconnect the air before proceeding with any adjustment max 10 mm min 0,5 mm 1 - Loosen the nut which stops the end-run screw 2 - Screw or unscrew the end-run screw to adjust the clinching depth 3 - Tighteen the locking nut... -
Page 16: Clinching Speed
Clinching speed adjustment This adjustment allows you to set the most comfortable working speed. An excess of speed identifiable in too sudden movements of the stapler may lead to early wearing out. Main stapler To increase clinching speed To decrease clinching speed To increase opening speed To decrease opening speed Secondary tool... -
Page 17: Fire Delay Adjustment
Fire delay adjustment Fire delay adjustment is the more necessary the wider is the front opening on the tool, since you must give time to the stapler to block the material before firing. Main stapler: Delays firing Anticipates firing Secondary tool: Delays firing Anticipates firing - 18 -... - Page 18 Adjustment of working cycle This adjustment fixes the lengt of the working cycle, which starts with the activation of the control lever and stops by releasing the fastened material Working cycle time is adjusted by acting on timer as follow: The best performance of the tool is achieved by syncronizing clinching speed, firing delay and tool return time 1 - Use a screw driver to rotate the selector marked with an...
-
Page 19: Loading
Loading DO NOT press pedal while loading, to avoid activating devices 1 - Pull the pusher all the way back and block it 2 - Load staples 3 - Release the pusher - 20 -... -
Page 20: Jam-Clearing
Jam -clearing In case of jamming proceed as follow: 1 - Pull the pusher all the way back and lock it. 2 - Remove the staple from magazine. 3 - Open the slider closing trigger. 4 - Pull the slider all the way back by pulling the pusher further backwards and hold it. 5 - Pull out the jammed staple from the driving channel. - Page 21 Spare parts - 22 -...
- Page 22 50.16 ROC-C c o d . 1 1 4 6 7 5 0 R O C - C Upgrade 50.16 ROC2 c o d . 1 1 4 6 7 5 0 R O C 2 number - 23 -...
- Page 23 98.03 98.01 98.05 92.03 05.25 98.05 05.20 05.20 05.25 17.31.8 05.20 17.34.8 05.25 17.37.7 17.31.8 18.50 05.20 50.16 ROC2 Indice di c o d . 1 1 4 6 7 5 0 R O C 2 modifica - 24 -...
- Page 24 98.20 INDICE DI MODIFICA UPGRADE NUMBER NIVEAU DE MODIFICATION INDICADOR DE MODIFICA 06.20 05.30 06.20 08.16Z 18.34.1 50.16 ROC2 Indice di c o d . 1 1 4 6 7 5 0 R O C 2 modifica - 25 -...
-
Page 25: Spare Parts List
18.02 Cilindro Pneumatico Pneumatic Cylinder Upgrade 50.16 ROC2 Indice di 50.16 ROC2 c o d . 1 1 4 6 7 5 0 R O C 2 c o d . 1 1 4 6 7 5 0 R O C 2... -
Page 26: Pneumatic Diagram
Ø4 Ø4 Ø4 Ø4 Ø6 Ø6 Ø4 Ø4 Ø4 Ø6 Ø6 R P S Ø6 5,5 ÷ 6,5 bar Ø6 Pneumatic diagram - 28 -...
