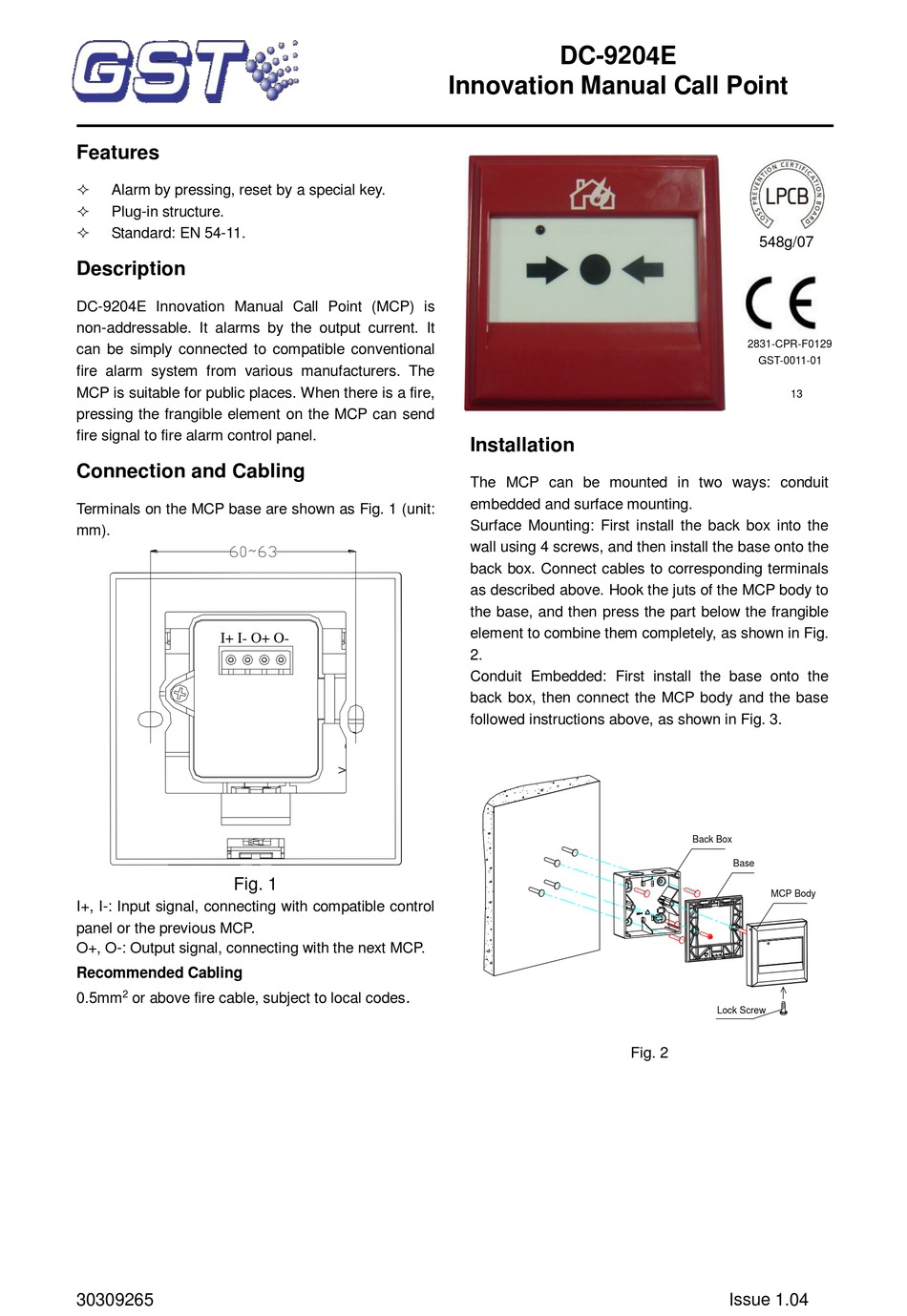

GST DC-9204E Quick Start Manual

Features

Alarm by pressing, reset by a special key.

Plug-in structure.

Standard: EN 54-11.
Description
DC-9204E Innovation Manual Call Point (MCP) is
non-addressable. It alarms by the output current. It
can be simply connected to compatible conventional
fire alarm system from various manufacturers. The
MCP is suitable for public places. When there is a fire,
pressing the frangible element on the MCP can send
fire signal to fire alarm control panel.
Connection and Cabling
Terminals on the MCP base are shown as Fig. 1 (unit:
mm).
I+ I- O+ O-
Fig. 1
I+, I-: Input signal, connecting with compatible control
panel or the previous MCP.
O+, O-: Output signal, connecting with the next MCP.
Recommended Cabling
2
0.5mm or above fire cable, subject to local codes
30309265
DC-9204E
Innovation Manual Call Point
Installation
The MCP can be mounted in two ways: conduit
embedded and surface mounting.
Surface Mounting: First install the back box into the
wall using 4 screws, and then install the base onto the
back box. Connect cables to corresponding terminals
as described above. Hook the juts of the MCP body to
the base, and then press the part below the frangible
element to combine them completely, as shown in Fig.
2.
Conduit Embedded: First install the base onto the
back box, then connect the MCP body and the base
followed instructions above, as shown in Fig. 3.
.
548g/07
2831-CPR-F0129
GST-0011-01
13
Back Box
Base
MCP Body
Lock Screw
Fig. 2
Issue 1.04
