  • Page 2: Table Of Contents

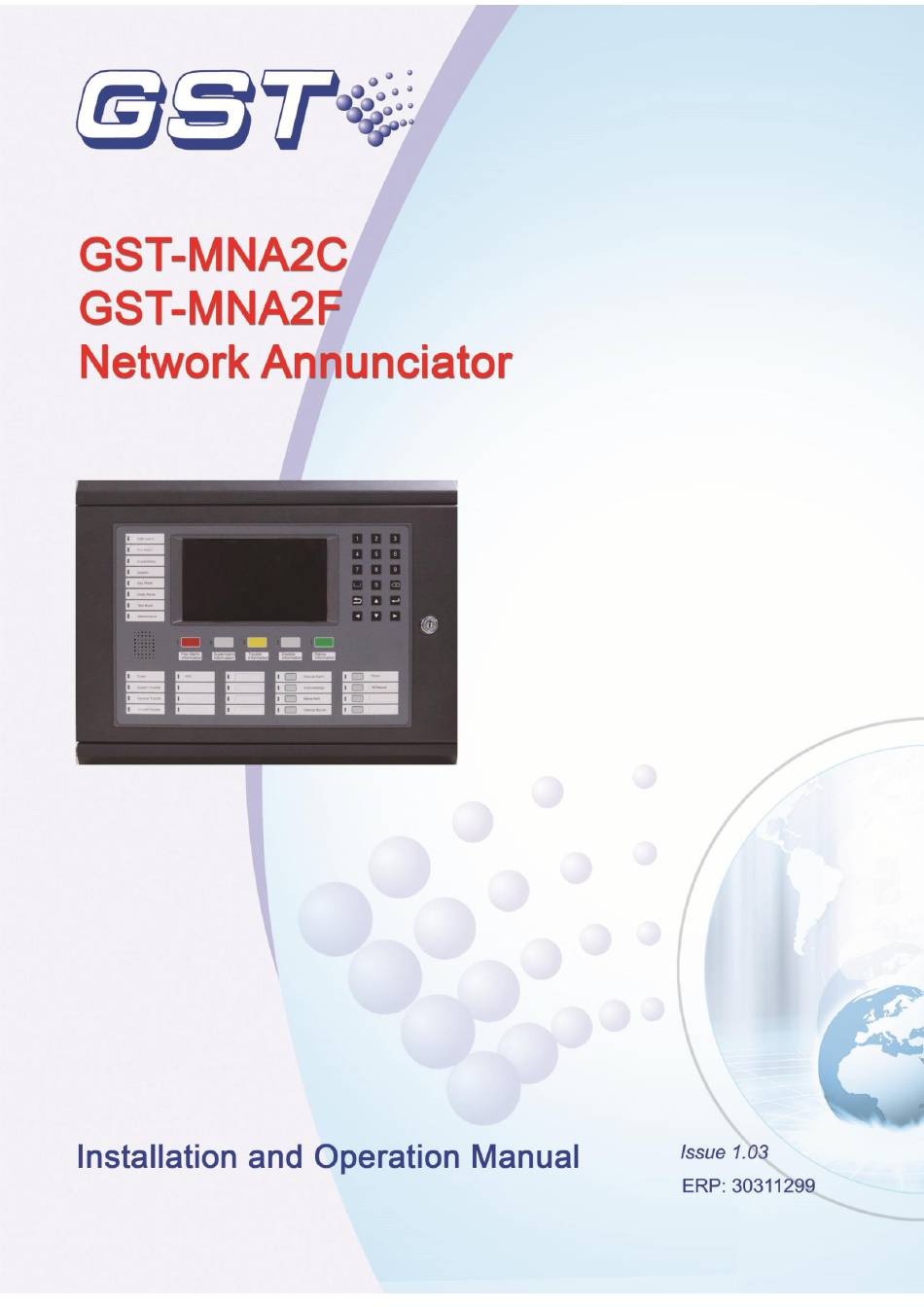

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual CONTENTS Installation Precautions ....................1 Product Introduction ..................... 2 1.1 Inventory ........................ 2 1.2 Standard Features ....................2 Technical Specifications ..................3 2.1 Electrical Specifications..................3 2.2 Communication Loop Parameters ................ 3 2.3 Dimensions ......................3 Installation ......................
  • Page 3 GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual Appendix B Electrical Specifications ............... 25 B.1 Electrical Specifications ..................25 B.1.1 Input Power ....................25 B.1.2 CAN Network ....................25 B.1.3 Fiber-Optical Network .................. 25 Limited Warranty ......................26 Page II...

  • Page 4: Installation Precautions

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual Installation Precautions Adherence to the following will aid in problem-free installation with long-term reliability:  Do not attempt to install, service, or operate this unit until this manual is read and understood. ...

  • Page 5: Product Introduction

    1 Product Introduction GST-MNA2C/ GST-MNA2F Network Annunciator is an Intelligent fire annunciator for use with the GST-IFP4M. It complies to UL 864 standard with features of easy installation, operation, and maintenance. The annunciator integrates an ARM7-Cotex CPU with inbuilt Linux OS. Its friendly and graphical screen can be touchable in operation.

  • Page 6: Technical Specifications

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual 2 Technical Specifications 2.1 Electrical Specifications  Voltage: 20VDC～28VDC  Current is less than 200mA in standby mode and less than 400mA in fire alarm condition.  Standby power consumption does not exceed 6W and maximum power consumption does not exceed 12W.

  • Page 7: Installation

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual 3 Installation The steps below are guidance for installation of the annunciator. Check if you have received all items ordered. Install the cabinet. Power up the annunciator and check if it can be normally started.
  • Page 8 GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual Fig.3-1 Page 5...

  • Page 9: Start-Up Check

     Powering on the annunciator, LCD doesn’t light and all LEDs are illuminated for 5s.  As All LED go out, LCD displays Data Loading…… and GST logo. Initiation of the system takes about 85s~90s.  Self-test of LEDs on the front panel.

  • Page 10: External Connection

    GST-IFP4-M Fig.3-3 3.4.2 Network Connection-Class A The GST-MNA2C has a CAN type interface: Fig.3-4 is for CAN network connection .and the GST-MNA2 F has a FIB type interface: Fig.3-5 is for Fiber connection. MAX 250 nodes  CALSS A  The distance...

  • Page 11: Indication & Control

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual MAX 250 nodes  CALSS A  The distance between two neighbor nodes is less than 20000m, attenuation-10dB;  LC monomode fiber;  Maximum 250 Fiber Fiber Fiber NETWORK Annunciators or CARD panels for networking.
  • Page 12 GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual  Disable: It lights when any disabled messages exists; It doesn’t light without disabled messages.  Day Mode: It lights when the ANNUNCIATOR is in Day mode; it goes out in Night mode.

  • Page 13: Functional Keys

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual  Trouble Information: If flashes when a fault message is not confirmed. It goes steady when all fault messages have been confirmed; it goes out as all fault messages are cleared.  Disable Information: It lights when a disabled message exists; it goes out when all disabled conditions are cleared.

  • Page 14: User Interface

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual UP cursor . Press this key to move the cursor to previous or scroll up lists in a continuous loop. DOWN cursor . Press this key to move the cursor to next or scroll down lists in a continuous loop.
  • Page 15 GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual Fig.4-3 The quantity of alarm messages will be displayed if there are many such messages. Clicking ALARM tab can view details as shown the figure below Fig.4-4. Fig.4-4 SUPERVISORY: supervisory messages take lower priority than Alarm messages. The supervisory messages will be displayed if there is no alarm.

  • Page 16: Operations

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual 5 Operations 5.1 Setup on the annunciator Clicking the button inputs engineering password to enter Panel Setup menu (tree diagram) as shown below Fig.5-1. Fig.5-1 5.1.1 Basic Setting  Password: clicking Password in Basic Setting menu enters the screen for setting passwords as shown in the figure below Fig.5-2.
  • Page 17 GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual Fig.5-3 Clicking the message in Indicator Info can enter the screen to define Fascia Button/LED Definition as shown in Fig.5-4. Fig.5-4 Clicking Undefined can define LEDs and buttons as shown in Fig.5-5. Fig.5-5...

  • Page 18: Advanced Setting

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual 5.1.2 Advanced Setting Clicking Advanced Setting in Panel Setup menu enters the screen for senior setting.  Network Setup: clicking Network Setup in Advanced Setting menu pops up the screen for setting the network on the right. Users can set up based on actual situation.

  • Page 19: Programming The Annunciator Through Gstndef Defining Tool

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual Fig.5-8 5.2 Programming the annunciator Through GstNDef Defining Tool Configurations and definitions can be downloaded to the annunciator through USB or Ethernet interfaces after they are programmed by using GstNDef (version 1.0 or above) Defining Tool.

  • Page 20: User Setup

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual Setting menu, select TCP/IP Setup as shown in the figure below Fig.5-10. On the programming window to the right, key in IP Address, Subnet Mask and Gateway address. Note that annunciator’s IP address shall be in the same subnet as the programming computer.

  • Page 21: Soft Keyboard Setup

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual Fig.5-12 5.3.1 Soft keyboard Setup Clicking Soft keyboard Setup can set On or Off the soft keyboard through this option, refer to the figure above Fig.5-12. 5.3.2 Display Setup Clicking Display Setup in User Setup menu enters the screen for setting font size, LCD backlight time and so on.

  • Page 22: Print Setup

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual Fig.5-14 Clicking Set System Clock button behind Modify System Clock can modify the system time as shown in the figure below Fig.5-15. Fig.5-15 5.3.4 Print Setup Printing is a supplementary function. The external printer shall be UL ITE listed equipment, which connects to annunciator internal USB port.

  • Page 23: Day/Night Mode

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual Fig.5-16 5.3.5 Day/Night Mode Clicking Day/Night Mode in User Setup menu, Day/Night mode can be set. Refer to the following figure Fig.5-17. Fig.5-17 In this mode, starting and ending time for the day can be set. Refer to the following figure Fig.5-18.

  • Page 24: Language Setup

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual 5.3.6 Language Setup Clicking Language Setup in User Setup menu enters the screen for setting the language. Refer to the figure below Fig.5-19. Fig.5-19 5.3.7 Project Information Clicking Project Information in User Setup menu enters the screen for setting the project information.

  • Page 25: Operating Instructions

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual 6 Operating Instructions 6.1 Panel Control Keys 6.1.1 MANUAL ALARM (User password) When the MANUAL ALARM key is pressed, the following actions will be produced:  Displaying a manual alarm message in LCD.

  • Page 26: All Resound (User Password)

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual LED turns off. 6.1.5 All RESOUND (User password) All RESOUND key is used to resound the deactivated notification appliances. When this key is pressed, the following actions will be produced:  Resound the deactivated notification appliances.

  • Page 27: Appendix A Basic System Connection

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual Appendix A Basic System Connection GST-MNA2C MAIN CARD CAN_H1 CAN_L1 CAN_H2 POWER INPUT CAN_L2 24V+ 24V- GST-MNA2F MAIN CARD FIBCARD POWER INPUT 24V+ 24V- Page 24...

  • Page 28: Appendix B Electrical Specifications

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual Appendix B Electrical Specifications B.1 Electrical Specifications B.1.1 Input Power  Class B.  Rated voltage: 24VDC  Voltage range: 20VDC~28VDC  Standby current：200mA  Max current：400mA  Wire size: minimum 16AWG, maximum 550 m per line.

  • Page 29: Limited Warranty

    GST-MNA2C/GST-MNA2F Network Annunciator Installation and Operation Manual Limited Warranty The manufacturer warrants its products to be free from defects in materials and workmanship for 2 years from the date of manufacture, under normal use and service. Products are date-stamped at time of manufacture. The sole and exclusive obligation of the manufacturer is to repair or replace, at its option, free of charge for parts and labor, any part which is defective in materials or workmanship under normal use and service.
  • Page 30 Gulf Security Technology Co., Ltd. No. 80, Changjiang East Road, QETDZ, Qinhuangdao, Hebei, P. R. China 066004 Tel: +86 (0) 335 8502434 Fax: +86 (0) 335 8502532 service.gst@fs.utc.com www.gst.com.cn...
