NuAire Genie/tops M in-line Installation And Maintenance

Ducted Bathroom &
Toilet Ventilator 230 volts
The EMC directive: 89/336/EEC
with modification 92/31/EEC
The low voltage directive 73/23/EEC

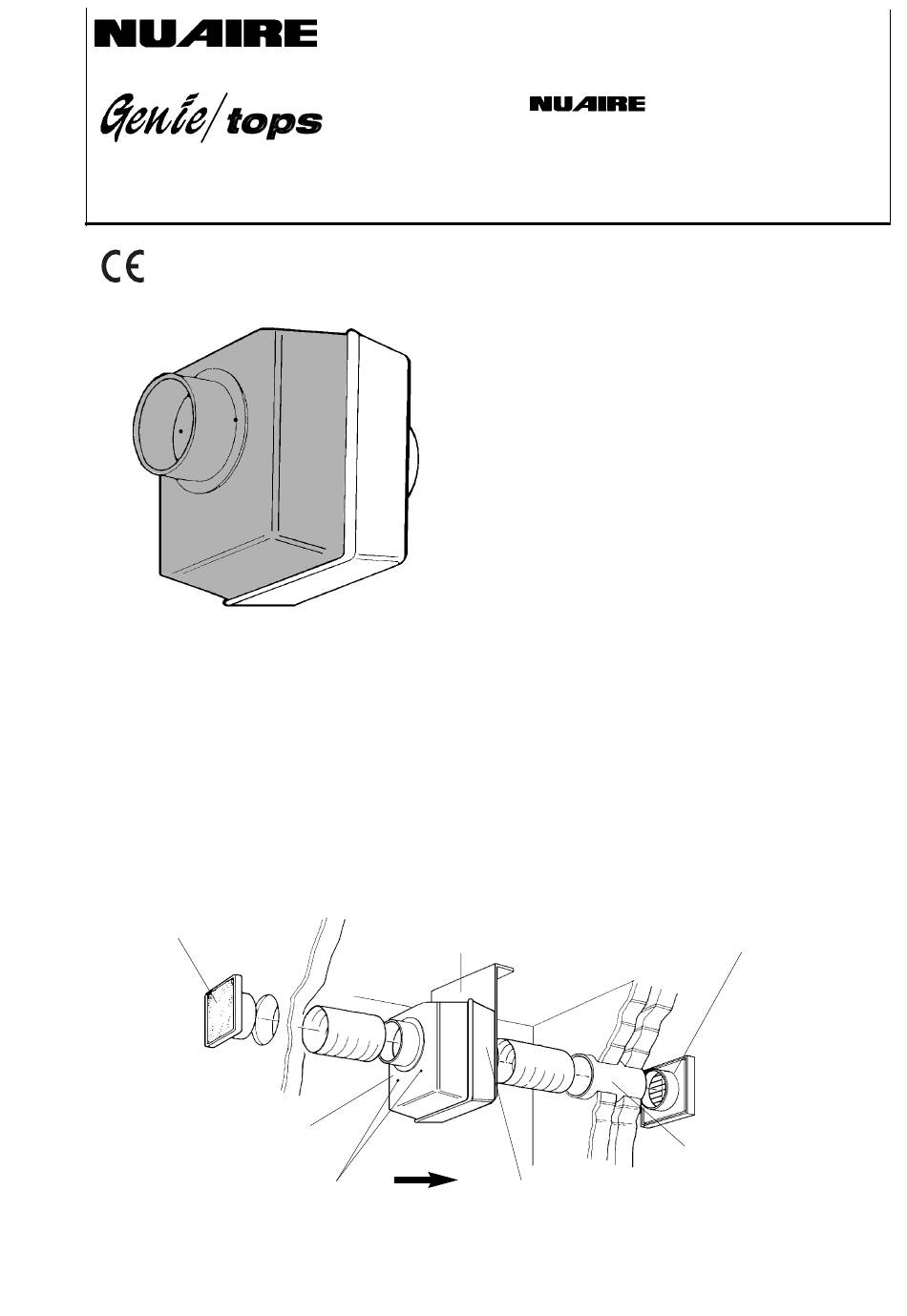

Fig. 1. General view of unit.
Introduction
The Genie/TOPS range of toilet & bathroom units
has been specifically designed to ventilate small
rooms such as toilets, bathrooms, cloakrooms etc.
Inlet Grille and filter
(available as an optional extra. NB. It is strongly
recommended that inlet filters are used to prevent
contamination of Motor / fan assembly)
Black Cover
Access screws (2)
Fig. 2. Typical Installation of Genie 'M' In-Line with grilles and ductwork as optional extras.
M in-line
Universal Fixing Bracket
(supplied loose with fixings.
Fix to shutter side of base)
Airflow
Backdraught Shutter
(on discharge side only. Except MX version)
Installation
and Maintenance
NuAire Limited
Western Industrial Estate
Caerphilly, Mid Glamorgan,
CF83 1XH United Kingdom.
Telephone: 029 2088 5911
Facsimile: 029 2088 7033
Email: info&nuaire.co.uk
www.nuaire.co.uk
The Genie/TOPS 'M' In-Line is a concealed unit
suitble for location inside or outside the bathroom
in an adjacent cupboard or roof space etc. 100mm
inlet and outlet spigots are fitted for connection to
suitable ductwork.
Air entering the unit passes through an inlet grille
and filter (optional extra). Air is discharged through
an outlet grille (optional extra) at a rate of 21 l/s.
Anti-backdraught shutters, retained in the closed
position when fan is not running, are fitted to the
white half of unit (except MX version; continuous
running - no backdraught shutter required).
Motor has sealed, self lubricating bearings and
'Heatseeker' thermal overload protection. The fan /
motor assembly is retained by spring clips to simplify
maintenance.
Interchangeable electronic control modules can
incorporate the following:
Run on Timer
Continuous low duty with boost.
As a safety feature the fan/motor assembly is
automatically disconnected when the electronic
control module is removed.
(available as an optional extra)
Ductwork & accessories
(available as optional extras)
Leaflet 670634
JUNE 2001
Outlet Grille
