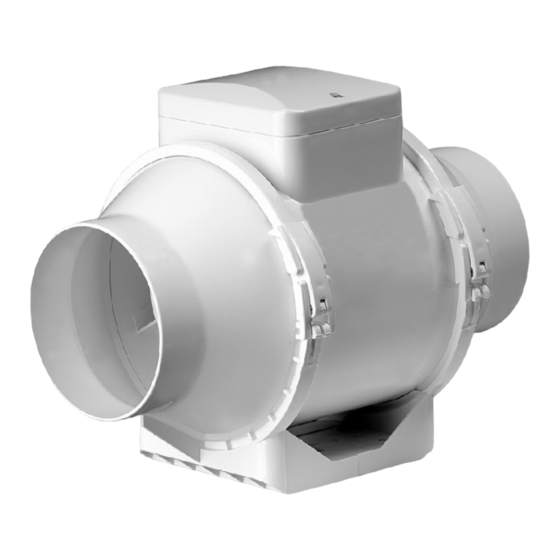

- Page 1 INLINE MIXED-FLOW FANS Nuaire ILMXXX USER'S MANUAL www.nuaire.co.uk 2017...
- Page 2 Follow the user's manual requirements to ensure durable and trouble‐free operation of the fan. WARNING Disconnect the fan from power supply prior to any connection, servicing and repair operations. Only duly qualified electricians with valid electrical permit for electric operations at the units with operating voltage up to 1000 V are allowed for mounting and maintenance.
- Page 3 Follow the user's manual requirements to ensure durable and trouble‐free operation of the fan. WARNING Follow the user's manual requirements to ensure durable and trouble‐free operation of the fan. While mounting the fan avoid the casing compression! Deformation of the casing may result in the motor jam and excessive noise. Misuse of the fan and any unauthorised modifications are not allowed.
- Page 4 Follow the user's manual requirements to ensure durable and trouble‐free operation of the fan. WARNING Follow the user's manual requirements to ensure durable and trouble‐free operation of the fan. Do not use the fan in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc.
- Page 5 Follow the user's manual requirements to ensure durable and trouble‐free operation of the fan. WARNING The product is allowed to be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge provided that they have been given supervision or instruction regarding a safe use of the product and understand the risks involved.
-
Page 6: Delivery Set
Read the user's manual carefully before proceeding with installation works. Compliance with the manual requirements ensures reliable operation and long service life of the product. Keep the user's manual available as long as you use the product. You may need to re‐read the WARNING information on the product servicing. -
Page 7: Control Logic
WARNING OPERATION GUIDELINES The fan is rated for connection to single‐phase AC power mains 220…240 V / 50/60 Hz. The fan is designed for continuous operation always connected to power supply. The arrow on the fan casing must match the air direction in the system. Ingress protection rating against access to hazardous parts and water ingress is IPX4. - Page 8 To set the fan speed (air capacity) rotate the speed control knob in the same way. The fan functioning logic may be based on temperature or timer controls: temperature‐based functioning (model ILM XXX U) is used to keep air temperature to within 2 °C. In this case the fan switches are rare.
-
Page 9: Maintenance
Designations: Automatic circuit breaker Automatic circuit breaker designation L1 ‐ minimum speed terminal L2 ‐ maximum speed terminal QF ‐ automatic circuit breaker S ‐ external speed switch ST ‐ external switch (i.e. light switch) External switch designation (recommend a double pole switch) External switch or on/off switch X ‐... - Page 10 The product warranty applies to the UK mainland and in accordance with Clause 14 of our Conditions of Sale. Customers purchasing from outside of the UK should contact Nuaire International Sales office for further details. After Sales For technical assistance or further product information, including spare parts and replacement components, please contact the After Sales Department.
- Page 11 User's violation of the fan storage regulations. Wrongful actions against the fan committed by third parties. Fan breakdown due to circumstances of insuperable force (fire, flood, earthquake, war, hostilities of any kind, blockades). Missing seals if provided by the user's manual. Failure to submit the user's manual with the fan purchase date stamp.
- Page 12 min 1 m...
- Page 13 MOUNTING...
- Page 15 ILM 100/125 MAX / MIN ILM‐125S/150/160 MAX / MIN...
- Page 16 ILM‐100 T/125 T/125ST/150 T/160 T terminal block for 5 contacts terminal block for 4 contacts terminal block for 5 contacts MAX / MIN terminal block for 4 contacts terminal block for 4 contacts terminal block for 5 contacts...
- Page 18 2 min 30 min STOP...
- Page 19 Temperature control knob ILM‐ U (U1) ILM‐ Un (Un1) Speed control knob 20°C 30°C Speed control knob...
- Page 24 ACCEPTANCE INFORMATION Fan is ready for using. Acceptance stamp Date of production 125S Sold (name of trade enterprise and stamp of the shop) Date of sale ILM‐XXX17...
