Important notes to installers
The Nuaire Drimaster range has been curing severe condensation
problems for over 20 years in some of the worst affected
properties throughout the world.
Its successful operation depends entirely upon the unit being
installed strictly in accordance with these instructions.
We would, therefore, respectfully suggest that you read through
this guide in its entirety before commencing installation and then
go through this guide step by step to ensure a satisfactory
completion.
Whilst the installation of the Drimaster unit may be achieved by a
suitable craftsman, the provision of the electrical supply and the
connection of the unit to the mains must be carried out by a
qualified electrician.
The unit has a 5 year warranty starting from the day of delivery and
includes parts and labour for the first year. The remaining 4 years
covers parts only. This warranty is conditional on the following:-
a) That the unit is installed strictly in accordance
with this guide.
b) That the unit filters are removed and cleaned or
replaced at the recommended intervals.
c) If a floor is higher than 4.5m the requirements in sections
3.2 and 8.1 must be followed.
The unit represents a significant financial outlay on the part of the
user/specifier and the unique 5 year guarantee is important to them.
We make a point of advising them that the installer is provided with
detailed instructions regarding installation/guarantee registration
and therefore has the responsibility of ensuring that the unit is
guaranteed for the user/specifier.

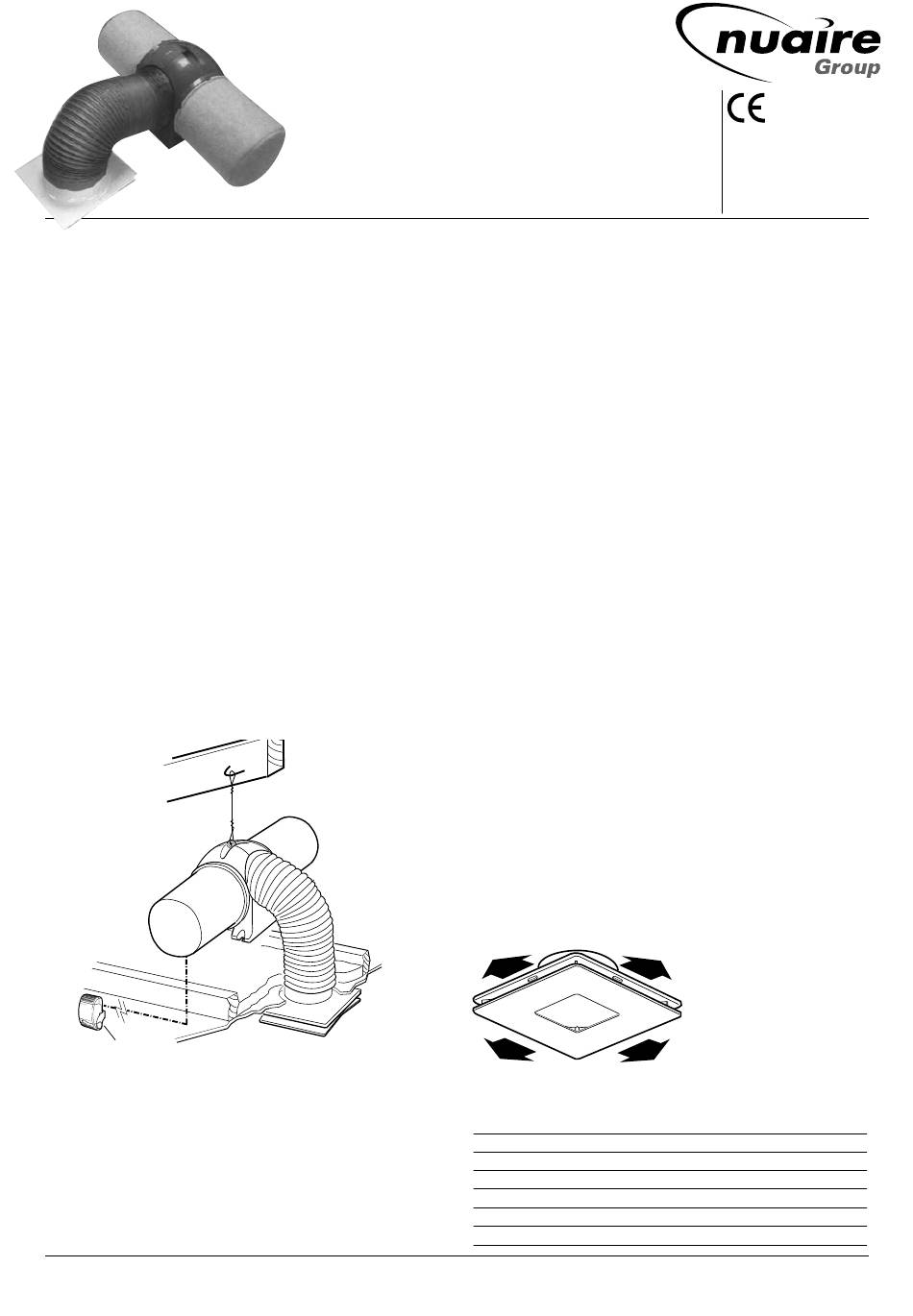

Figure 1.
Sensor, minimum of
3 metres from diffuser.
Operation
The Drimaster provides whole home ventilation using the Positive
Input Ventilation principle. Essentially the concept is to introduce
fresh, filtered air into the dwelling at a continuous rate, encouraging
movement of air from inside to outside.
To achieve this, the unit is mounted in the loft space, drawing air
through the filters and inputting it, at ceiling level, into the property.
The Drimaster units are supplied with a remote temperature sensor
that works in conjunction with the units internal sensor. This sensor
continuously monitors the temperature in the loft and house,
