Appendix D: External Rapid Shutdown

Normally, a StorEdge inverter can be shut down by turning off the Safety Switch.
However, if the inverter is located in a place that is not easily accessible by emergency
responders, an external shutdown switch must be installed. The switch (not supplied by
SolarEdge) is connected to the inverter to shut down the PV system in case of
emergency. Use a switch that plainly indicates whether it is in the off or on position
(NEC 2017, 690.12 (C)).
For connecting an external shutdown switch to the inverter, use a 16-24 AWG/0.2-1.3
2
mm wires pair, up to 300ft/ 90m long.

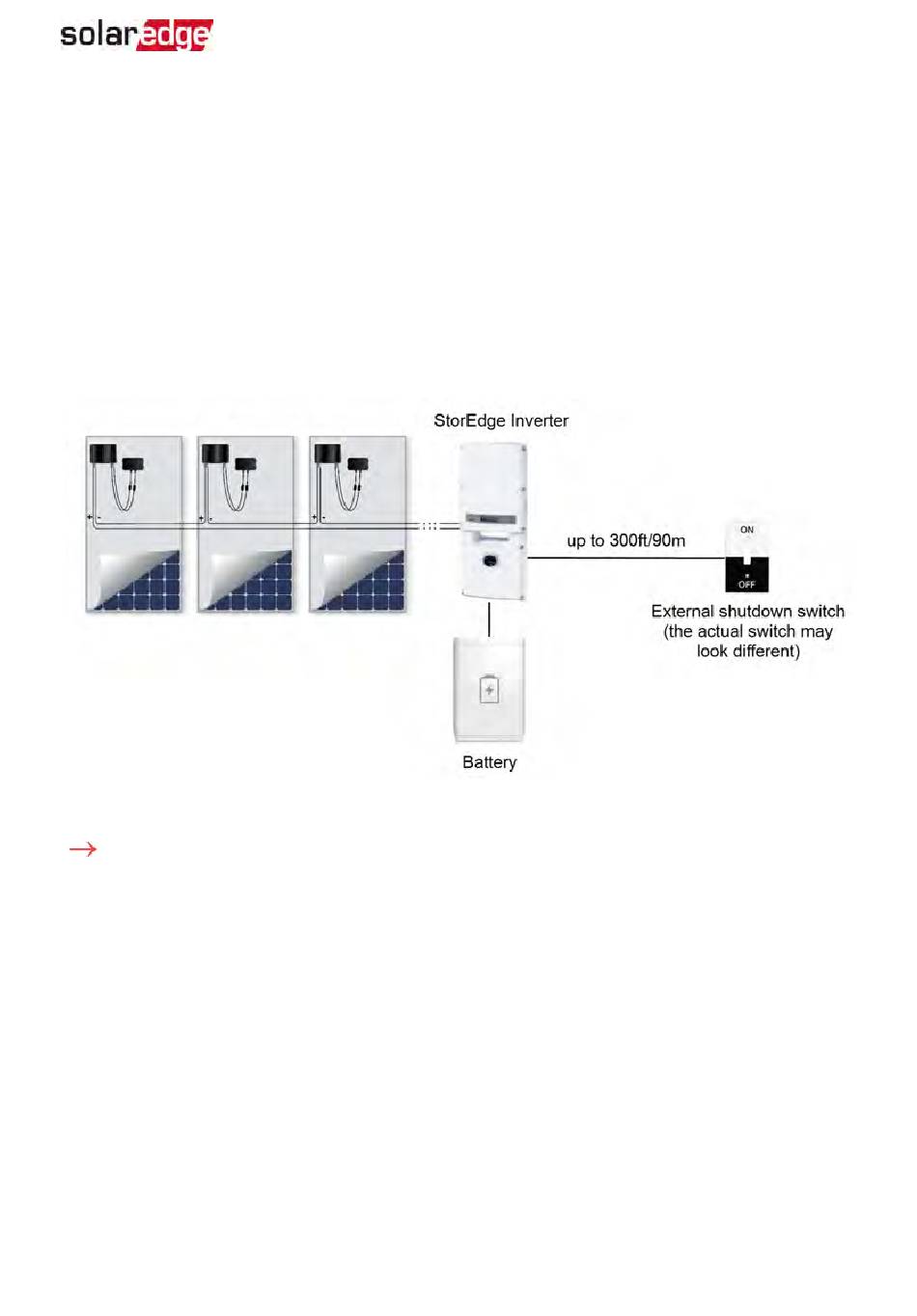

Figure 49: System connected to an external shutdown switch
To connect an external shutdown switch:
1. Remove the Connection Unit cover as described in the Mounting the Inverter -
Remove the StorEdge Connection Unit covers: on page 38.
2. Remove the short circuit jumper from the terminals labeled RSD E1 and E2 on the
external devices terminal block.
