Brita Redi-Twist USS-334 Installation Instructions Manual
  1. Manuals
  2. Brands
  3. Brita Manuals
  4. Water Filtration Systems
  5. Redi-Twist USS-334
  6. Installation instructions manual

Brita Redi-Twist USS-334 Installation Instructions Manual

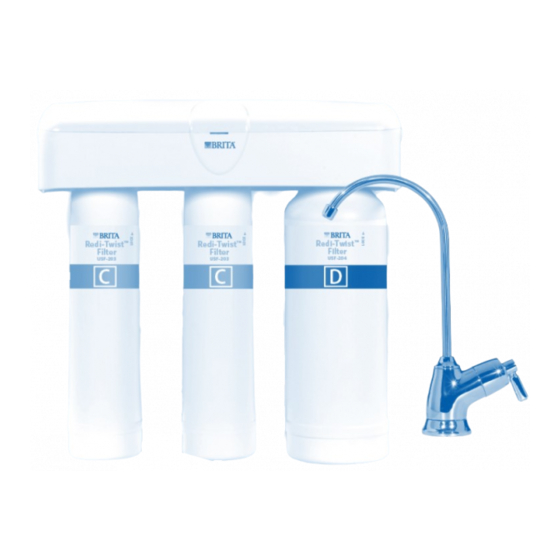

3 stage filtration system with microbiological reduction
Hide thumbs Also See for Redi-Twist USS-334:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
CONNECT TO
AUXILIARY FAUCET
USS-334
Installation
Instructions
As Easy As...
Step 1
Step 2
Step 3
Step 4
System Tested and Certified by NSF International against
NSF/ANSI Standard 42 for the reduction of Aesthetic Chlorine
Taste & Odor and Particulate Class I and Standard 53 for the
reduction of Atrazine, Cysts, Lead and Lindane. System Tested
and Certified by NSF International to NSF Standard P231 for
Microbiological Water Purifiers and US EPA Guide Standard
and Protocol for Testing Microbiological Water Purifiers
for the reduction of Bacteria, Viruses and Cysts. System
Tested and Certified by NSF International against NSF/ANSI
Standard 372 for low lead content and compliance.
*Please refer to Performance Data Sheet for complete reduction data.
Redi-Twist™ 3 Stage Filtration System Model USS-334
1/4 turn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Redi-Twist USS-334 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Brita Redi-Twist USS-334

Summary of Contents for Brita Redi-Twist USS-334

  • Page 1 USS-334 Installation Instructions As Easy As... Step 1 Step 2 Step 3 Step 4 1/4 turn System Tested and Certified by NSF International against NSF/ANSI Standard 42 for the reduction of Aesthetic Chlorine Taste & Odor and Particulate Class I and Standard 53 for the reduction of Atrazine, Cysts, Lead and Lindane.
  • Page 2 Tools & Materials Required main components secondary package contents components filter system head main: filter system head with built-in bracket Redi-Twist™ filters: - (2) carbon filters - (1) 3rd stage micro- mounting screws kitchen faucet adapter biological filter filtered water faucet (faucet neck and base) secondary: mounting screws...

  • Page 3: Helpful Hints

    Note: If you have an existing auxiliary faucet in place that you wish to use, it will require a faucet stem that connects to a 3/8" water line. 866.709.2086 Internet & Mobile Free Installation Video My Brita Redi-Twist™ Filter System ® (Replace system every 5 years) System Cartridge Model No(s).

  • Page 4: Before You Begin

    Before You Begin Please read all instructions, specifications, and precautions before installing and using your water filter system. NOTICE Precautions: for cold water use only. Consult your local plumbing codes and install accordingly. This filter must be protected from freezing, which can cause cracking of the filter and water leakage. Because of the product’s limited service life and to prevent costly repairs or possible water damage, we strongly recommend that the system be replaced every five years.
  • Page 5 Helpful Hints As Easy As... connect to auxiliary faucet Attach Filter to Inside Step 1 of Cabinet Wall connect to auxiliary faucet Mount Auxiliary Faucet Step 2 connect to auxiliary faucet Step 3 Attach Tubing/Fittings to the Water Line/Filter connect to auxiliary faucet Install Redi-Twist™...
  • Page 6 connect to auxiliary faucet Attach Head to Inside Step 1 of Cabinet Wall materials and tools needed Note: Mount the filter system to a solid cabinet wall or wall. If a solid surface is not available, use hollow- wall anchor bolts or toggle bolts (not included) to safety phillips drill...
  • Page 7 connect to auxiliary faucet Mount Auxiliary Faucet Step 2 materials and tools needed fittings to purchase Faucet Neck Retaining Nut Faucet Base COLD WATER HOT WATER COLD WATER Metal Lock Washer VALVE VALVE VALVE Faucet Stem Nut Remove sprayer Compression Cap •...
  • Page 8 connect to auxiliary faucet Attach tubing / fittings Step 3 to water line / head materials and tools needed WARNING COLD WATER VALVE HOT WATER COLD WATER VALVE VALVE • Disconnect the top of the cold water plumbing line from the faucet shank. Ensure cold water shut-off valve is closed, and turn on cold water on faucet.
  • Page 9 connect to auxiliary faucet Attach tubing / fittings Step 3 << Step continued from previous page to water line / head materials and tools needed WARNING utility knife wet ends of tubing before inserting cut squarely on both ends do not bend or crimp do not cut at an angle CONNECT END OF TUBING THEN CONNECT OTHER END OF TUBING...
  • Page 10 connect to auxiliary faucet connect to auxiliary faucet Install Redi-Twist Filters Filter Replacement ™ Step 4 and Test for Leaks (every 6 months) 1/4 turn 3rd Stage 1st Stage 2nd Stage Micro- Carbon Carbon biological* * Microbiological filter cartridge ALWAYS in this position Align Arrow 1/4 turn For FREE Filter Replacement...
  • Page 11 connect to auxiliary faucet Troubleshooting Guide Leaks between system head assembly and Leaks around fittings Redi-Twist™ filter Remove the Redi-Twist™ filter and inspect the Turn off the cold water shut-off valve. Press o-rings. Make sure they are in place and free in the gray collar on the Inlet and/or Outlet from dirt and particles.
  • Page 12 Use and Care Brita Redi-Twist Filtration System USS-334 ® ™ Usage and quality of water in your incoming water line affect the life of filter cartridges. Cartridges should be replaced sooner if water pressure at the faucet begins to drop noticeably or if the filter fails to perform satisfactorily.
  • Page 13 Instrucciones de instalación del USS-334 Tan fácil como... Paso 1 Paso 2 Paso 3 Paso 4 1/4 turn Sistema probado y certificado por NSF internacional según la norma NSF/ANSI 42 para la reducción del sabor y olor del cloro estético y partículas clase I así como la norma 53 para la reducción de atracina, quistes, plomo y lindano.
  • Page 14 Implementos y materiales necesarios Componentes principales Componentes Contenido del secundarios paquete Cabezal del sistema de filtración Principal: Cabezal de sistema de filtro con soporte incorporado Filtro Redi-Twist™ Adaptador de grifo - (2) filtro de carbón Tornillos de montaje de cocina - (1) filtro microbiológico el grifo llave de agua secundarios:...

  • Page 15: Antes De Comenzar

    Antes de comenzar Lea todas las instrucciones, especificaciones y precauciones antes de instalar o utilizar su sistema de filtración de agua. AVISO Precauciones: para uso con agua fría únicamente. Consulte la normativa local de plomería e instale de acuerdo con ella. Este filtro deberá...

  • Page 16: Consejos Útiles

    866.709.2086 Internet y móvil Video de instalación gratuito Información del producto y servicio Sistema de filtración My Brita® Redi-Twist™ (reemplace el sistema cada 5 años) Número de modelo del sistema Fecha de compra / Fecha de cambio Para recordatorios GRATIS de cambio del filtro, ingrese a www.protectplus.com...
  • Page 17 Consejos útiles Tan fácil como... Conecte al grifo auxiliar Fije el filtro a la parte interior Paso 1 de la pared del gabinete Conecte al grifo auxiliar Monte el grifo auxiliar Paso 2 Conecte al grifo auxiliar Fije la tubería/acoples al Paso 3 tubería de agua/filtro Conecte al grifo auxiliar...
  • Page 18 Instalación del grifo auxiliar Fije el filtro a la parte interi- Paso 1 or de la pared del gabinete Materiales e implementos necesarios Nota: Monte el sistema del filtro en la pared sólida de un gabinete o en la pared. Si no existe una superficie sólida, utilice los pernos de anclaje o pernos acodados para pared hueca (no se incluyen) Cinta para...
  • Page 19 Instalación del grifo auxiliar Monte el grifo Paso 2 auxiliar Materiales e implementos necesarios acoples que debe adquirir Grifo cuello Tuerca de retención Grifo de la base VÁLVULA DE AGUA Arandela de fijación metálica HOT WATER COLD WATER VALVE VALVE FRÍA Retire el Tuerca del vástago...
  • Page 20 Instalación del grifo auxiliar Fije la tubería/acoples a Paso 3 la tubería de agua/filtro Materiales e implementos necesarios ADVERTENCIA VÁLVULA VÁLVULA DE VÁLVULA DE HOT WATER COLD WATER AGUA AGUA AGUA VALVE VALVE FRÍA CALIENTE FRÍA • Desconecte la parte superior de la tubería de agua fría del vástago del grifo. •...
  • Page 21 Conecte al grifo auxiliar Fije la tubería/acoples a la Paso 3 << Paso 3 viene de la página anterior tubería de agua/filtro Materiales e implementos necesarios ADVERTENCIA Cuchilla multiuso Moje los extremos de la tubería antes de insertarla Corte recto ambos extremos no doble ni engarce No corte en ángulo...
  • Page 22 Instalación del grifo auxiliar Instalación del grifo auxiliar Instale el filtro Redi-Twist Reemplazo del filtro ™ Paso 3 pruebe si hay fugas. (cada 6 meses) 1/4 de vuelta * Coloque el cartucho del filtro microbiológico SIEMPRE en esta posición. Alinee flecha 1/4 de vuelta Para recordatorios GRATIS de cambio del filtro, ingrese a...
  • Page 23 Instalación del grifo auxiliar Guía de localización y solución de problemas Fugas entre el ensamble Fugas alrededor de del cabezal del sistema y los acoples el filtro Redi-Twist™ Retire el filtro Redi-Twist™ e inspeccione las Cierre la válvula de suministro de agua fría. juntas tóricas.

  • Page 24: Uso Y Cuidado

    Instalación del grifo auxiliar Uso y cuidado Sistema de filtración Brita® Redi-Twist™ USS-334 El uso y la calidad del agua de su tubería de alimentación de agua afectan la vida de los cartuchos del filtro. Los cartuchos deben cambiarse con mayor frecuencia si la presión del agua del filtro comienza a disminuir notablemente o si el filtro no funciona...
  • Page 25 ©2016 Protect Plus. Todos los derechos reservados. Redi-Twist™ es una marca comercial de Protect Plus, LLC. La marca comercial y el logo BRITA son marcas comerciales registradas de Brita LP y se usan bajo licencia de Protect Plus, LLC. Todos los derechos reservados.
