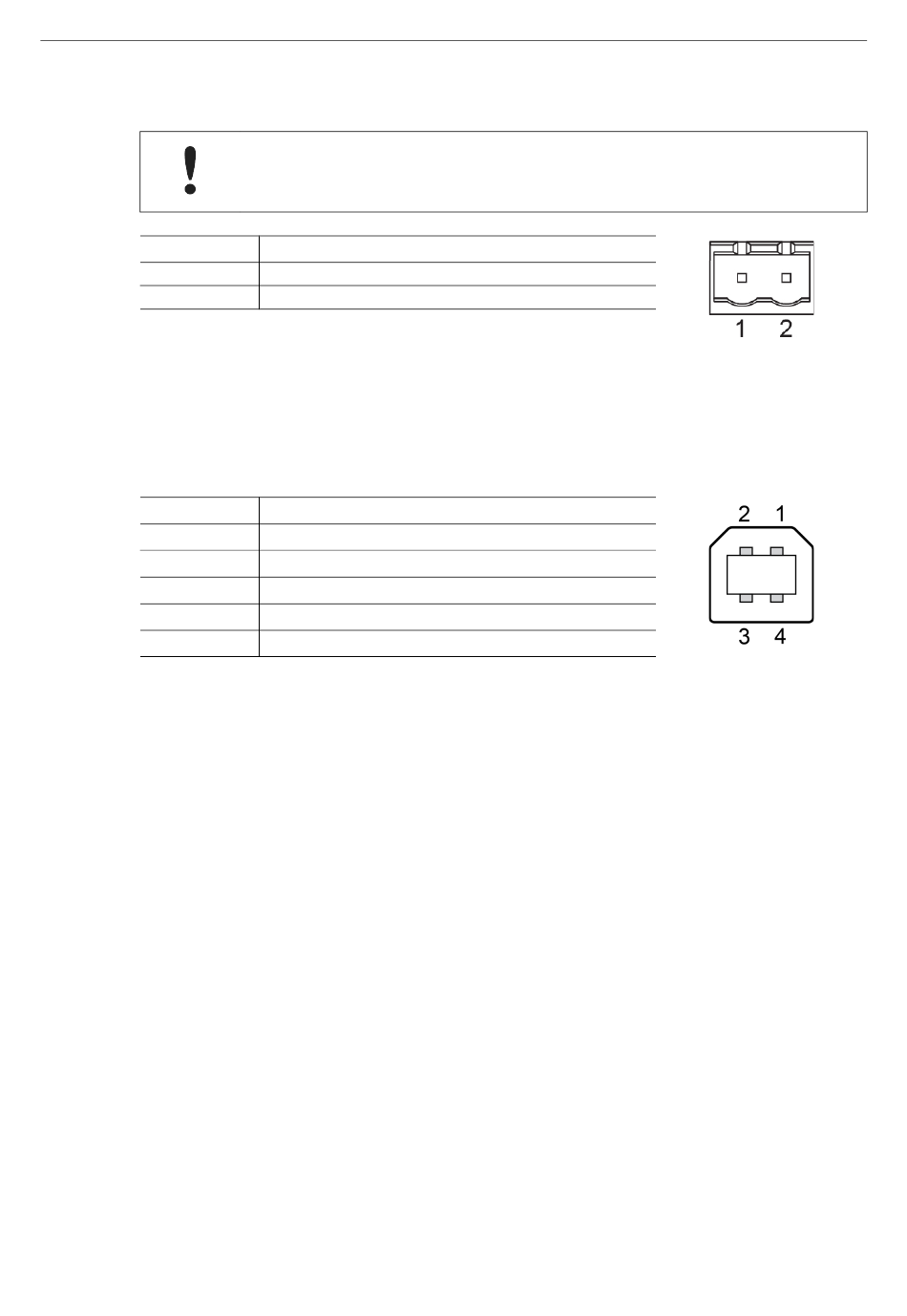

2.3.2 Power Connector (2 pin)
Pin
1
2
2.3.3 USB Connector (USB type B)
Used for connecting the Anybus Communicator to a computer for uploading and
downloading configurations. Remove the USB cable when not in use.
Pin
1
2
3
4
Housing
Anybus ® Communicator ™
Connecting power with reverse polarity or using the wrong type of power supply may
damage the equipment. Make sure that the power supply is connected correctly and
of the recommended type.
Signal
+24 VDC
Power Ground
Signal
+5 V input
USBDM (USB communication)
USBDP (USB communication)
Signal ground
Cable shield
