BPSE240V82A
User's Manual
K01-C000100-00
SAFETY
This manual contains important instructions. Please read and follow all
instructions carefully during installation and operation of the unit. Read
this manual thoroughly before attempting to unpack, install, or operate
the Battery modules.
CAUTION! The UPS unit must be connected to a grounded AC
1
Advertisement
Related Manuals for CyberPower BPSE240V82A
Summary of Contents for CyberPower BPSE240V82A

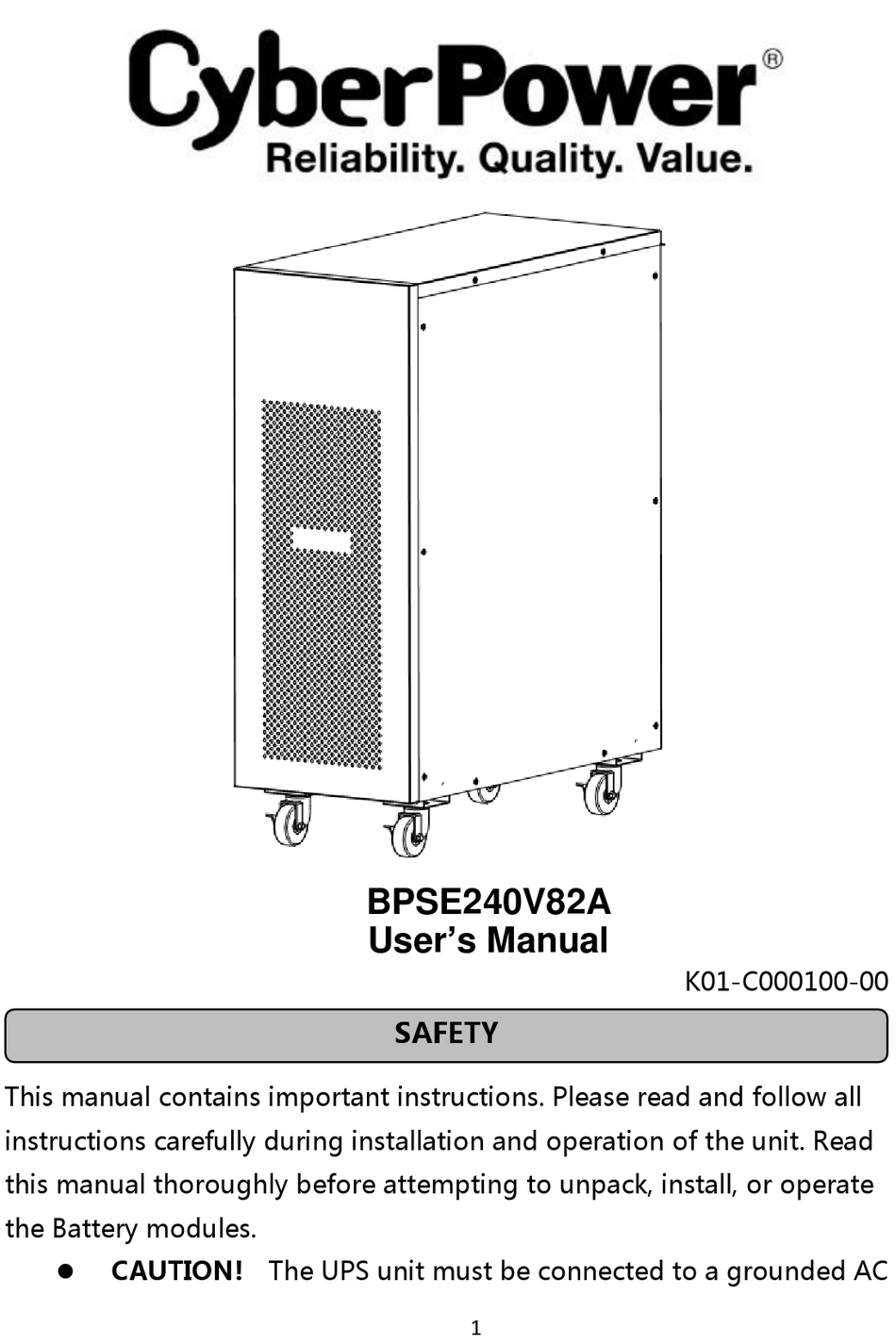

- Page 1 BPSE240V82A User’s Manual K01-C000100-00 SAFETY This manual contains important instructions. Please read and follow all instructions carefully during installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate the Battery modules. CAUTION! The UPS unit must be connected to a grounded AC...
- Page 2 power outlet with fuse or circuit breaker protection. The Battery modules grounded are through the UPS. CAUTION! The battery can power hazardous components inside the unit, even when the AC input power is disconnected. CAUTION! To prevent the risk of fire or electric shock, install in ...
- Page 3 CAUTION! Make sure everything is turned off and disconnected completely before conducting any maintenance, repairs or shipment. CAUTION! Connect the Protection Earth (PE) safety conductor before any other cables are connected. DO NOT INSTALL THE UNIT WHERE IT WOULD BE EXPOSED ...
-
Page 4: Basic Operation
BASIC OPERATION SCHEMATIC BAT OUTPUT+ Breaker BAT INPUT+ BAT INPUT- BAT OUTPUT- Battery String1 Battery String2 FRONT/REAR PANEL DESCRIPTION Breaker Terminal Block Self-locking frame... - Page 5 CONNECTION#1：POWER MODULE (UPS) WITH ONE BATTERY MODULE Step 1: First turn off the Breaker, then loosen the screws to remove the Terminal block Cover of Battery Module. Step 2: Connect the Battery Cable to Terminal block and ensure the polarity is right.
- Page 6 Step 3: Connect the Battery Cable to UPS and ensure the polarity is right. Step 4: Retighten the Terminal Block Cover of Battery Module and UPS.
-
Page 7: Technical Specification
BATTERY INPUT BATTERY OUTPUT BATTERY INPUT TO UPS Battery Module 1 Battery Module 2 TECHNICAL SPECIFICATION Model BPSE240V82A Battery Sealed Maintenance Free Lead Acid Battery 12V / 9Ah x20pcs x2sets Rated Battery Voltage 240Vdc Overload Protection Breaker (100A 125Vdc 3P)
